Product Details:
|
Module Size: | 192 * 192mm | Brightness: | 5500cd / M² |
---|---|---|---|
Type: | Outdoor Led Display | Gray Level: | 14 |
Scanning Method: | 8s | Certification: | CE / ROHS / CCC / FCC / ISO9001 / ISO14001 |
High Light: | led display panel for advertising 256RGB,Longda outdoor led display panel,p8 led panel NOVA STAR |

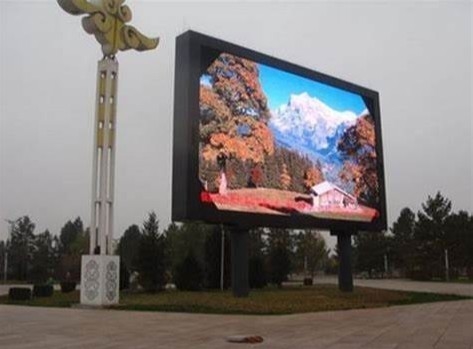

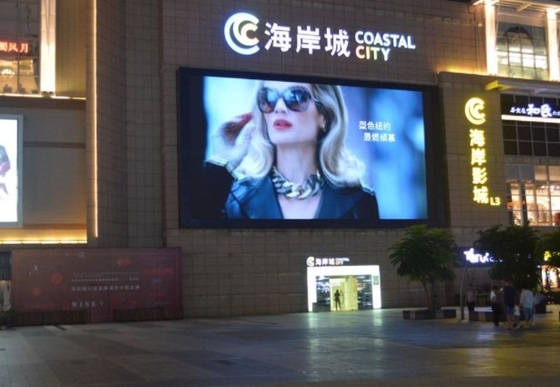

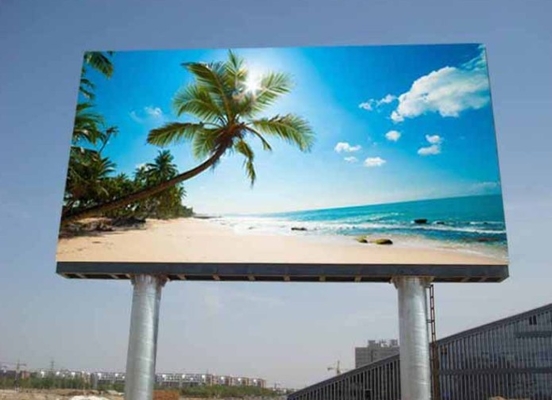

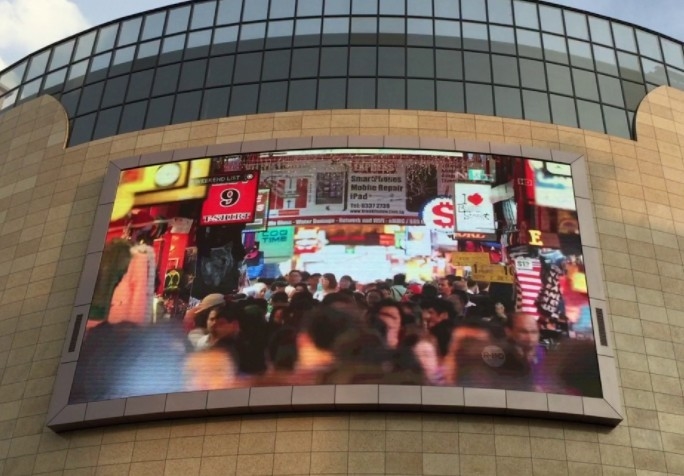

Outdoor Led Video Walls Nation Star P5 P6 P8 P10 LED Display For Advertising Screen Panel Sign
Functions and Advantages :
1. High refresh rate: With NOVA STAR control system , no scanning line when photographed
2. High gray level: 256 RGB each , display 16.7M colors , vivid and perfect video effect
3.High resolution: The most apparent features of the new generation of LED display
4.Good color uniformity: With brand Lamp Nationstar and high refresh MBI5124 IC.
Specifications :
Outdoor P6 LED Screen |
|||||
Part I Technicial Parameters |
|||||
Led Module Specification |
|||||
NO. |
Item |
Specification |
|||
1 |
Pixel Pitch |
6mm |
|||
2 |
Module Resolution |
W32×H32dots |
|||
3 |
Module Size |
192*192mm |
|||
4 |
Led Packing |
3535 |
3528 |
||
5 |
IP Rate |
65 |
|||
6 |
IC |
Constant current IC |
5124 |
||
7 |
LED composition |
1R1G1B |
|||
Cabinet Specification |
|||||
1 |
Cabinet Size |
576*576mm |
960*960mm |
||
2 |
Module Qty |
W3X H3 =9PCS |
W5X H5 =25PCS |
||
3 |
Physical Resolution |
W96×H96dots |
W160×H160dots |
||
4 |
Power Consumption(MAX.) |
600 W/m2 |
|||
5 |
Power Consumption(AVE.) |
230 W/m2 |
300 W/m2 |
||
6 |
Cabinet Material |
Die-casting Aluminum |
|||
7 |
Physical Density |
27777 dots/m2 |
|||
8 |
Net Weight |
7.5Kg |
7.7Kg |
||
Screen Specification |
|||||
1 |
Brightness |
5500cd/m2 |
1000cd/m2 |
||
2 |
Colors |
16.7 trillion |
|||
3 |
Brightness Control |
Software 256 level adjustable |
|||
4 |
Gray Level |
14 |
|||
5 |
View Distance |
6~50m |
6~150m |
||
6 |
Refresh Rate |
≥1200~1920Hz |
≥960Hz |
||
7 |
Drive Mode |
1/8s |
1/16s |
||
8 |
Life Span |
100,000h |
|||
9 |
MTBF |
1000h |
|||
10 |
Control mode |
Synchronous control or Asynchronous control |
|||
11 |
Frame Frequency |
≥60Hz |
|||
12 |
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
|||
13 |
Operation Temperature |
-20℃ ~ +45℃ |
|||
14 |
Operation Humidity |
10%~95% |
FAQ :
Question 1: How can I trust your LONGDA LED factory ? |
Answer : Yes, when you talk with us now , we are here . We do led since 2009 ,it is over 12 years . In the past 8 years , we develop so well. Tomorrow and future , we will largely expand our LED market, you will see it .
|
Quesiton 2: If I need led very urgently ,how fast can you finish the goods ? |
Answer:How fast you want ?Three days ?One week ? Definite shipping date ?
|
Question 3:Is it easy to install this led display ? |
Answer : If you are new to LED ,we will help you to know led from ZERO to Professional .
|
