Product Details:
|
| MTBF: | 1000h | Pixel Pitch: | 6mm |
|---|---|---|---|
| Cabinet Size: | 960 X 960mm | Physical Density: | 27777 Dots / M² |
| Net Weight: | 7.7Kg | Module Resolution: | 32 X 32 Dots |
| High Light: | 32x32 dots outdoor full color led screen,outdoor waterproof led screen IP65 FCC,waterproof outdoor led display screen P6 |
||
Outdoor Led Video Walls Waterproof P6 960x960mm Full Color LED Screen Panel Board Display
Product Introduction
1 . Iron waterproof IP65 cabinet structure : rock solid , not easy to deform .
2 . Seamless splicing : give you a better visual experience .
3 . Quick lock system , easy installation : quick installation , complete the installation in a few seconds .
Specifications
|
Outdoor P6 LED Screen |
||||
|
Part I Technicial Parameters |
||||
|

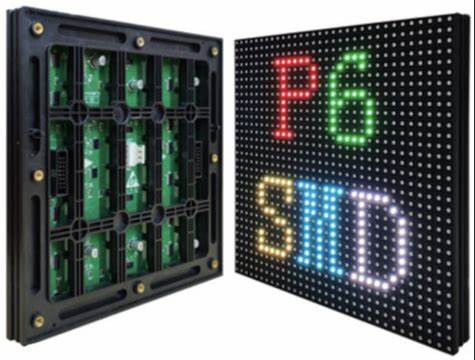

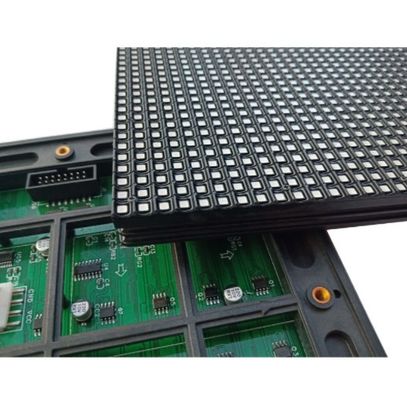

Led Module Specification |
||||
|
Item |
Specification |
|||
|
Pixel Pitch |
6mm |
|||
|
Module Resolution |
W32×H32dots |
|||
|
Module Size |
192*192mm |
|||
|
Led Packing |
3535 |
3528 |
||
|
IP Rate |
65 |
|||
|
IC |
Constant current IC |
5124 |
||
|
LED composition |
1R1G1B |
|||
|
Cabinet Specification |
||||
|
Cabinet Size |
576*576mm |
960*960mm |
||
|
Module Qty |
W3X H3 =9PCS |
W5X H5 =25PCS |
||
|
Physical Resolution |
W96×H96dots |
W160×H160dots |
||
|
Power Consumption(MAX.) |
600 W/m2 |
|||
|
Power Consumption(AVE.) |
230 W/m2 |
300 W/m2 |
||
|
Cabinet Material |
Die-casting Aluminum |
|||
|
Physical Density |
27777 dots/m2 |
|||
|
Net Weight |
7.5Kg |
7.7Kg |
||
|
Screen Specification |
||||
|
Brightness |
5500cd/m2 |
1000cd/m2 |
||
|
Colors |
16.7 trillion |
|||
|
Brightness Control |
Software 256 level adjustable |
|||
|
Gray Level |
14 |
|||
|
View Distance |
6～50m |
6~150m |
||
|
Refresh Rate |
≥1200~1920Hz |
≥960Hz |
||
|
Drive Mode |
1/8s |
1/16s |
||
|
Life Span |
100,000h |
|||
|
MTBF |
1000h |
|||
|
Control mode |
Synchronous control or Asynchronous control |
|||
|
Frame Frequency |
≥60Hz |
|||
|
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
|||
|
Operation Temperature |
-20℃ ～ +45℃ |
|||
|
Operation Humidity |
10%～95% |
|||
