Product Details:
|
| MTBF: | 1000h | LED Lamp: | Nationstar2121 Or 3535 |
|---|---|---|---|
| Brightness Control: | Software 256 Level Adjustable | Control Mode: | Synchronous Control Or Asynchronous Control |
| Certification: | CE / ROHS / FCC / CCC / ISO9001 / ISO14001 | Colors: | 16.7 Trillion |
| High Light: | ISO14001 p5 outdoor led display,front service led screen P5mm,Nationstar 2121 front maintenance led display |
||

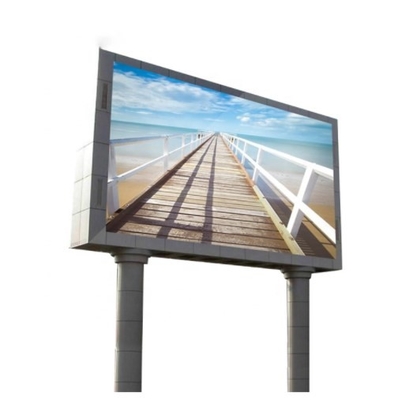

Outdoor Led Video Walls Front Maintenance P4 P5 P6 P8 Front Service LED Display
Product Introduction
1 . Iron waterproof IP65 cabinet structure : rock solid , not easy to deform .
2 . Seamless splicing : give you a better visual experience .
3 . Quick lock system , easy installation : quick installation , complete the installation in a few seconds .
Specifications
|
Pixel Pitch |
4mm |
||||
|

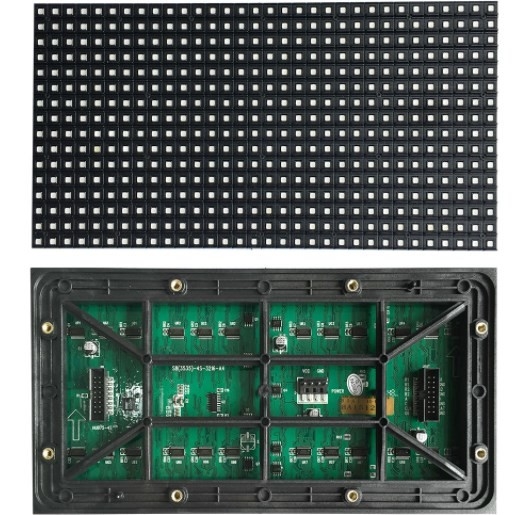

Module Resolution |
W64×H32dots |
W80×H40dots |
|||
|
Module Size |
256*128mm(soft) |
256*128mm |
320*160mm |
||
|
Led Packing |
2121 |
Nationstar2121 |
2121 |
||
|
IP Rate |
43 |
65 |
43 |
||
|
IC |
Constant current IC |
MBI5124 |
2038s |
||
|
LED composition |
1R1G1B |
||||
|
Cabinet Specification |
|||||
|
Cabinet Size |
512*512mm |
640*640mm |
|||
|
Module Qty |
W2X H4 =8PCS |
W2X H4 =8PCS |
|||
|
Physical Resolution |
W128×H128dots |
W160×H160dots |
|||
|
Power Consumption(MAX.) |
200 W/m2 |
300 W/m2 |
|||
|
Power Consumption(AVE.) |
100 W/m2 |
150 W/m2 |
|||
|
Cabinet Material |
Die-casting Aluminum |
||||
|
Physical Density |
62500 dots/m2 |
||||
|
Net Weight |
7Kg |
||||
|
Screen Specification |
|||||
|
Brightness |
900cd/m2 |
1100cd/m2 |
860cd/m2 |
||
|
Colors |
16.7 trillion |
||||
|
Brightness Control |
Software 256 level adjustable |
||||
|
Gray Level |
14 |
||||
|
View Distance |
5～30m |
||||
|
Refresh Rate |
≥1200~1920Hz |
≥1920Hz |
≥1920Hz |
||
|
Drive Mode |
1/16s |
1/16s |
1/20s |
||
|
Life Span |
100,000h |
||||
|
MTBF |
1000h |
||||
|
Control mode |
Synchronous control or Asynchronous control |
||||
|
Frame Frequency |
≥60Hz |
||||
|
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
||||
|
Operation Temperature |
-20℃ ～ +45℃ |
||||
|
Operation Humidity |
10%～95% |
||||
