Product Details:
|
| Colors: | 281 Trillion | View Distance: | 3～50m |
|---|---|---|---|
| Frame Frequency: | 3840hz | Pixel Density: | 32873 Pixels / M² |
| Power Supply: | Meanwell | Scan Mode: | 1/8s |
| High Light: | Longda Transparent Glass Led Screen,281 trillion glass wall screen,transparent led signage 1R1G1B |
||

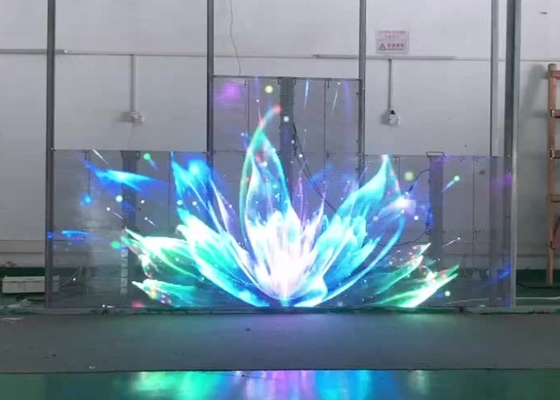

Transparent Glass Led Screen Full Color SMD Transparent LED Display P3.91 Glass Wall Screen For Window Advertising
Advantages
1 . No steel frame structure , saving a lot of installation and maintenance costs ;
2 . Directly fixed on the glass curtain wall , without any steel structure , save a lot of cost ;
3 . The unique display effect because the display background is transparent , can make the advertising picture
give people the feeling of suspension on the glass curtain wall , with good advertising effect and artistic effect ;
4 . Easy and fast maintenance of indoor maintenance , both fast and safe , save manpower and material resources .
Technical parameter
|
P3.9 Full Color Transparent LED Screen |
|||||
|
Pixel Pitch |
3.9mm |
||||
|
Module Resolution |
W128×H16dots |
||||
|
Module Size |
500*125mm |
||||
|
Led Packing |
1921 |
1921 |
2020 |
||
|
IP Rate |
43 |
||||
|
IC |
2038 |
||||
|
LED composition |
1R1G1B |
||||
|
Cabinet Specification |
|||||
|
Cabinet Size |
1000*500mm |
||||
|
Module Qty |
W2X H 4 =8PCS |
||||
|
Physical Resolution |
W256×H64dots |
||||
|
Power Consumption(MAX.) |
800 W/m2 |
600W/m2 |
400W/m2 |
||
|
Power Consumption(AVE.) |
220 W/m2 |
200W/m2 |
180W/m2 |
||
|
Cabinet Material |
Die-casting Aluminum |
||||
|
Physical Density |
32873 dots/m2 |
||||
|
Net Weight |
6Kg |
||||
|
Screen Specification |
|||||
|
Brightness |
5000cd/m2 |
3500cd/m2 |
1000cd/m2 |
||
|
Colors |
281 trillion |
||||
|
Brightness Control |
Software 256 level adjustable |
||||
|
Gray Level |
14 |
||||
|
View Distance |
5～12m |
||||
|
Refresh Rate |
≥3840Hz |
||||
|
Drive Mode |
1/8s |
1/16s |
|||
|
Life Span |
100,000h |
||||
|
MTBF |
1000h |
||||
|
Control mode |
Synchronous control or Asynchronous control |
||||
|
Frame Frequency |
≥60Hz |
||||
|
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
||||
|
Operation Temperature |
-20℃ ～ +45℃ |
||||
|
Operation Humidity |
10%～95% |
||||
Our service
Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other required services such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.
After-sale service:
1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 1year
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
FAQ
Q1 : How does your factory do regarding quality control ?
Quality is priority . We always attach great importance to quality controlling from the very beginning to the very end .
We focus on every detail , our factory has gained ISO9001 , ISO14001 , CE , RoHS , FCC certifications .
Q2 : What is your MOQ ?
Any quantity is acceptable for your order . And the price is negotiable for large quantity .
Q3 : When will you make the delivery ?
We can make the delivery within 3 - 5 working days for the led modules and 15 - 18 days for the led finished screen according to the size and quantities of your order .
Q4 : What technical supports can you offer ?
We provide all kinds of technology trainings for free , including the operation and maintenance training of the LED screens in our factory .
we can send an engineer team to the country of the customer to instruct the installation .
Q5 : How long is the warranty ?
The standard warranty is 1 year . It could be longer upon request .
Q6 : Do you provide any free spare parts in each order ?
Yes , a certain amount of spare parts will be provided for free , spare parts including module , power cable , signal cable , LED lamp , IC , mask , power supply , receiving card , etc .
