Product Details:
|
| MTBF: | 1000h | Module Size: | 250*250mm |
|---|---|---|---|
| Lamp Type: | RGB 3IN1 | Screen Dimension: | Customized Size |
| IP Rate: | IP65/ IP43 | Refresh Rate: | 1920-3840hz |
| High Light: | P3.91mm Curved Led Display,Customized Waterproof Curved Led Display,curved led panel IP65 |
||
Import P3.91mm Waterproof IP65 High Brightness Curved Led Display For Outdoor
Product Introduction
1. HD Led wall display with high definition and high resolution,
bring wonderful visual performance to the audience;
2. High brightness ensures the spectators far from the screen can still enjoy what is shown,
even under direct sunlight;
3. Applied with 500*500& 500*1000mm aluminum cabinet,
it's easy to calculate the area of the led screen, ultra-thin and super light, and easy to install and carry anywhere.
Specifications
|
Pixel Pitch |
3.91mm |
||
|
Module Resolution |
W64×H64dots |
||
|

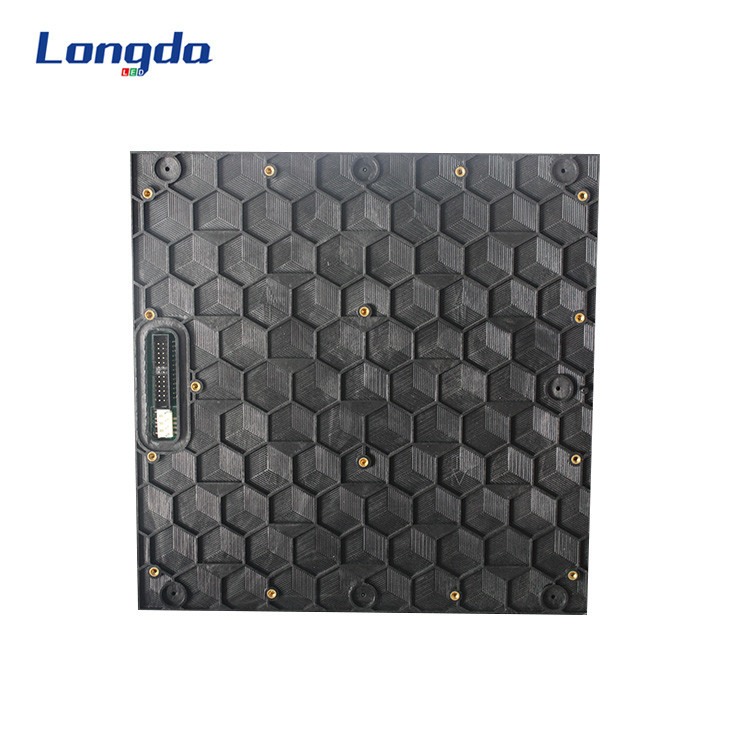

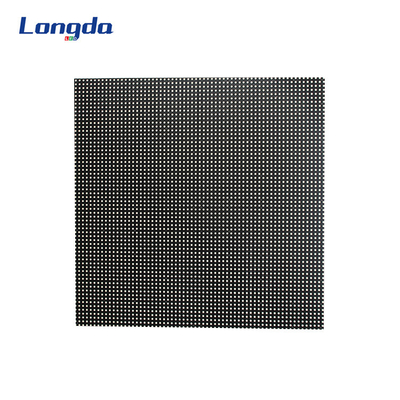

Module Size |
250*250mm |
||
|
Led Packing |
2121 |
||
|
IP Rate |
43/ 65 |
||
|
LED composition |
1R1G1B |
||
|
Cabinet Size |
500*500mm/ 500*1000mm |
||
|
Module Qty |
W2X H2= 4Pcs/ W2X H4= 8Pcs |
||
|
Physical Resolution |
W128×H128dots/ W128×H256dots |
||
|
Power Consumption(MAX.) |
400 W/m²/ 600w/m² |
||
|
Power Consumption(AVE.) |
200 W/m² |
||
|
Cabinet Material |
Diecasting Aluminum Cabinet |
||
|
Physical Density |
65410 dots/m² |
||
|
Net Weight |
8Kg/ 16kg |
||
FAQ
1 . Strict quality control :
The quality of our display is excellent.
We use the materials of high-quality suppliers in the world, strictly control the production process,
and pass the multiple quality inspections to ensure that every product is qualified.
2 . Quality guarantee :
All our LED display screens are more than 100,000 hours of life span.
3 . Long warranty :
2-3 years warranty, any quality problem during warranty time will be handled.
4 . Prompt & Professional service :
Any inquiries will be replied to within 24/7 hours and you'll get helpful suggestions from us.
Your questions
1: LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P1.25, P2, P3 P4.....P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm....10mm,
which determines resolution of a display. Pixel pitch is smaller, led display resolution is higher.
2: What pixel pitch should I choose on my display?
A: Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen,
the desired effect and the customer budget.
3: To order a display, What kind of information do I have to offer you?
A: You should provide width& height of the display, the main use, the viewing distance, the scene photos,
special requirements, then I can provide you with a detailed list of quotations.
4: How to install?
A: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,
free remote debugging. We can also send our engineers to your site to guide the installation if needed.
5: What about the lead time?
A: Orders less than 50 square meter display, lead time is 18-25 working days.
6: Can I order a sample?
A: Yes, your sample orders are welcome, after checking our quality and service,
we are confident that you will come back for your future orders.
