Product Details:
|
| Model: | 3mm | Module Resolution: | 64 X 64 |
|---|---|---|---|
| Module Size: | 192 X 192mm | Application: | Shopping Mall |
| Life Span: | 10000h | Led Lamp: | KINGLIGHT 2020 |
| Name: | Rental LED Display | Colour Temperature: | 6500K-9500K |
| High Light: | Rental LED Display 3mm,9500K Rental LED Display,KINGLIGHT 2020 Rental LED Display |
||

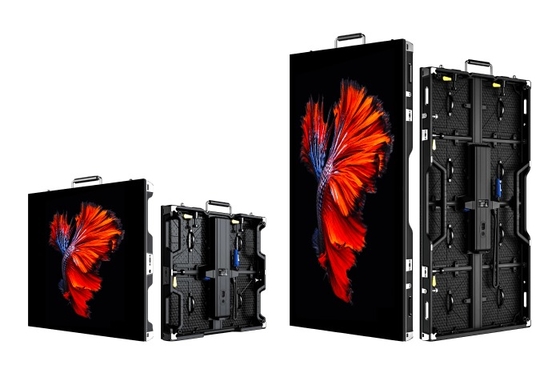

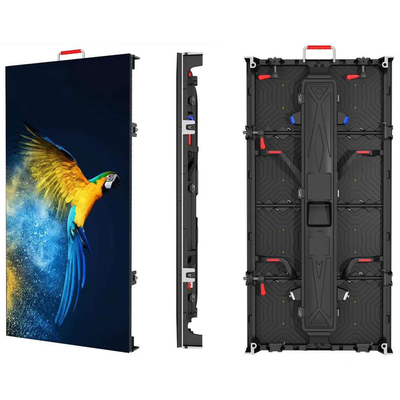

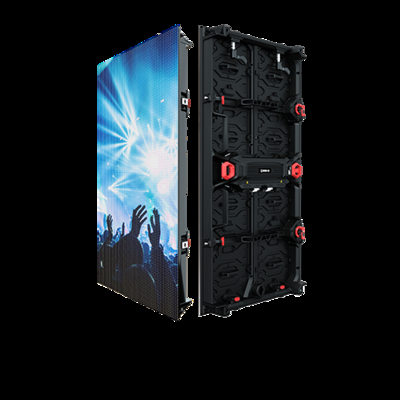

Indoor Led Video Wall Panel Rental LED Display For Shopping Mall
Specification
|
Technical parameters |
|
P3 Indoor Full Color |
|
|
|
Pixel pitch |
MM |
|
|
Panel size |
MM |
192mm*192mm |
|
|
Physical density |
Dots/m² |
111,111 Dots/m² |
|
|
Pixel configuration |
R/G/B |
1,1,1 |
|
|
Driving method |
|
Constant current 1/32 Scan |
|
|
LED Encapsulation |
SMD |
2121 |
|
|
Display resolution |
DOTS |
64X64=4096dots |
|
|
Module port |
|
HUB75A |
|
|
|
|||
|
|
Best viewing distance |
M |
3-45 |
|
Best viewing angle |
Deg. |
H:120 Degrees, V:120 degrees |
|
|
Maximum power consumption |
W/m² |
1350W/m² |
|
|
Frame Frequency |
HZ/S |
≥60 |
|
|
Refresh frequency |
HZ/S |
≥400 |
|
|
Equilibrium brightness |
CD/m² |
≥1800 |
|
|
Working environment temperature |
0C |
-40~50 |
|
|
Working environment humidity |
RH |
10%~90% |
|
|
Display working voltage |
VAC |
AC46~54HZ,220V±15%/110V±15% |
|
|
Colour temperature |
|
6500K-9500K |
|
|
Gray scale/color |
|
≥16.7M color |
|
|
Input signal |
|
RF S-Video RGB etc |
|
|
Control system |
|
PCTV nonlinearity card+DVI display card+Linsn control system |
|
|
Mean free error time |
HOURS |
>10,000 |
|
|
Life |
HOURS |
>100,000 |
|
|
Lamp failure frequency |
|
<0.0001 |
|
|
IP rating |
|
The back IP40,The front IP50 |
|
|
Steel box size |
MM |
L768Xh768x100 |
|
Applications
Mobile Truck LED Display is being an important advertising media for outdoor events and advertising campaign on basis of its unique advanced structure feature.It’s known as truck mounted LED display and trailer mounted LED screen.The products are widely use for advertising,shows,square,concert, sporting event, festival, corporate gathering or charitable event,Grand Theater, large song and dance party, fashion show.
Trade terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China
5. Warranty time: 2 - 3 years
6. Delivery time: 15 - 18 working days
