Product Details:
|
| Pixel Pitch: | 1.25mm | Usage: | Indoor |
|---|---|---|---|
| Screen Dimension: | 600mm * 337.5mm / 640 X 480mm | Led Chip: | 1010 |
| Cabinet Material: | Die-casting Aluminum | Brightness: | 300-600nits |
| High Light: | Small Pixel Led Display 600nits,fine pitch led display 300nits,indoor smd led display 1000cd/ m2 |
||

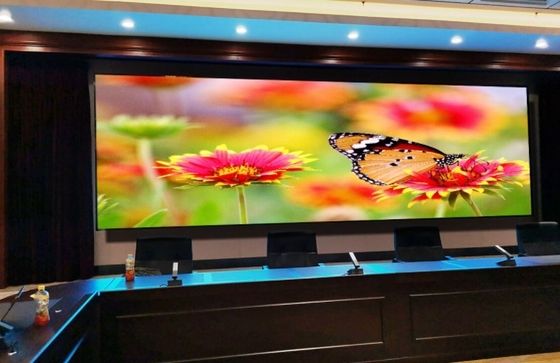

Small Pixel Led Screen P1.25 Die-Casting Aluminum Indoor Screen For Broadcast
Advantages
1 . Ultra HD : up 409600pixels per square meters , like as HD TV screen with full color
2 .Ultra slim cabinet: the thickness is only 65mm , with fashion configuration design
3 .High strength: made with high quality Die-casting Aluminum cabinet , enhance the heat dissipation ,
and extend the cabinet's working life
Product Parameters
|
Model No |
SP0.9 |
SP1.2 |
SP1.5 |
SP1.8 |
|
Pixel Pitch |
0.9375mm |
1.25mm |
1.56mm |
1.875mm |
|
LED |
Mini LED |
SMD1010 |
SMD1010 |
SMD1515 |
|
Module Size(mm) |
300*168.75 |
300*168.75 |
300*168.75 |
300*168.75 |
|
Module Resolution(dots/) |
320 * 180 |
240 * 135 |
192 * 108 |
160 * 90 |
|
Pixel Density |
1,137,777dots/m² |
640,000dots/m² |
409,600dots/m² |
284,444dots/m² |
|
Cabinet Material |
Die cast aluminum |
Die cast aluminum |
Die cast aluminum |
Die cast aluminum |
|
Cabinet Size(mm) |
600*337.5*31 |
600*337.5*31 |
600*337.5*31 |
600*337.5*31 |
|
Cabinet Weight |
3.8kg/cabinet |
3.8kg/cabinet |
3.8kg/cabinet |
3.8kg/cabinet |
|
maintenance method |
Front/rear |
Front/rear |
Front/rear |
Front/rear |
|
Support hanging or not |
YES |
YES |
YES |
YES |
|
Best Viewing Distance |
0.9m |
1.2m |
1.5m |
1.8m |
|
Best Viewing Angle |
H:160° W:160° |
H:160° W:160° |
H:160° W:160° |
H:160° W:160° |
|
Max Power consumption |
350 W/m² |
350 W/m² |
350 W/m² |
350 W/m² |
|
Average Power Consumption |
120 W/m² |
120 W/m² |
120 W/m² |
120 W/m² |
|
Grey Scale |
14--24 bits |
14--24 bits |
14--24 bits |
14--24 bits |
|
Color Temperature |
6500~9000k |
6500~9000k |
6500~9000k |
6500~9000k |
|
Control Method |
Synchronous |
Synchronous |
Synchronous |
Synchronous |
|
Refresh Rate |
1920-3840 Hz |
1920-3840 Hz |
1920-3840 Hz |
1920-3840 Hz |
|
Brightness(cd/m²) |
800-1000 |
800-1000 |
800-1000 |
800-1000 |
|
Operating Voltage |
110V/220V |
110V/220V |
110V/220V |
110V/220V |
|
Working Humidity |
10% - 90% |
10% - 90% |
10% - 90% |
10% - 90% |
|
Working Temperature |
-20ºC - 65ºC |
-20ºC - 65ºC |
-20ºC - 65ºC |
-20ºC - 65ºC |
|
Protection Level |
IP20 |
IP20 |
IP20 |
IP20 |
FAQ
1 Reply your inquiry in 24 working hours
2 Experienced staffs answer all your query in fluent English , Spanish , French , German , etc
3 Customized design is available, OEM & ODM are welcomed
4 Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs
5 Special discount and protection of sales area provided to our distributor
6 Warmly welcome your visit in our company if available
7 Guidance service: We can guide on line if customers have questions about the installation and usage
For large project, we provide your engineer a week free training, or if customer could bear the relevant cost,
our engineer can go to customer's country for on-site guidance
8 Warranty period: 2-3 years after shipment
