Product Details:
|
Pixel: | 3.91mm Rental Led Display For Stage | Cabinet Resolution: | 128 X 128 Dots |
---|---|---|---|
Cabinet Size: | 500 * 500mm / 500 X 1000mm | Brightness: | ≥ 5000 Nits |
Refresh Rate: | 3840hz | Module Size: | 250 X 250mm |
High Light: | 128x128 dots Wedding Led Screen,Wedding Led Screen 500*500mm,led screen for stage Longda |

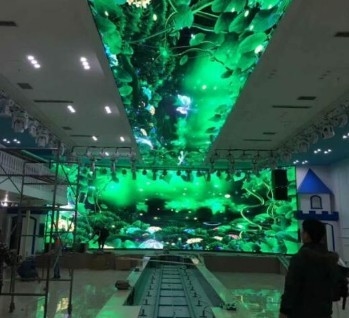

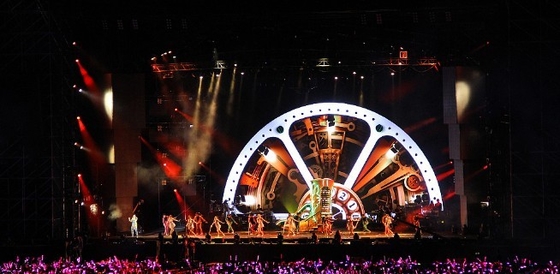

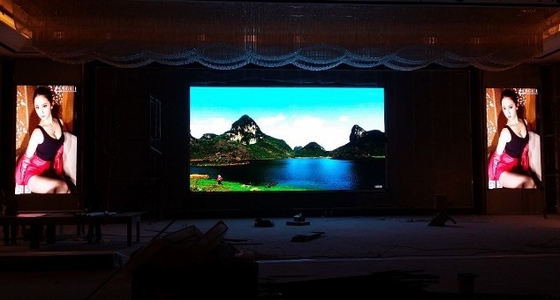

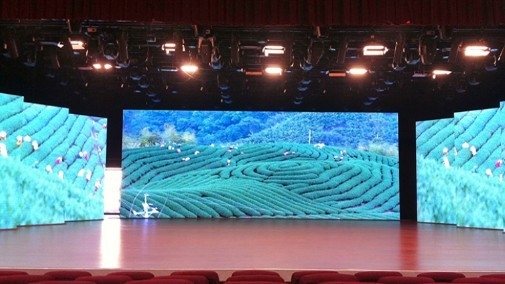

Wedding Led Screen P3.91mm Indoor Rental LED Screen For Stage
Advantages :
1) It is extremely easy to calculate the area of LED screen because it is consist of 500 * 500mm /
500mm * 1000mm cabinet ;
2) 16 bit color , 65536 gray scale , refresh rate over 3840HZ so the video or images on the LED screen
are very vivid and fresh , people who see it will get shocked by
this amazing viewing experience ;
3) The appearance is very elegant , it looks very high end and quality is very stable ;
4) It is die - casting aluminum cabinet , very strong and precision is very high , tolerance can be
controlled in 0.1mm so the surface is very smooth , almost no gap between cabinets ;
5) The side locks is spring locks, this is unique among all die-casting aluminum cabinets , especially
popular in European market and North American market ;
Technical parameters :
P3.91 Rental Stage Video LED Display Screen For Outdoor |
|||||||
Item |
Technical Parameters |
||||||
LED Parameters |
|||||||
Item Name |
LED Type |
Brightness |
Wave Length |
H/V Visual Angle |
|||
Red LED |
SMD1921 |
540-702mcd |
620-625nm |
160º/160º |
|||
Green LED |
SMD1921 |
1200-1300mcd |
519-522nm |
160º/160º |
|||
Blue LED |
SMD1921 |
200-260mcd |
462-465nm |
160º/160º |
|||
Module Specification |
|||||||
Pixel Pitch |
3.91mm |
||||||
Pixel Configuration |
1R1G1B |
||||||
Module Resolution |
64 x 64 pixels |
||||||
Module Pixles |
4096 pixels |
||||||
Module Size |
250mm X 250mm |
||||||
Cabinet Specification |
|||||||
Cabinet Size(W X H X D) |
500mm x 1000mm x 80mm |
||||||
Cabinet Resolution(dot) |
128 x 256 pixels |
||||||
Module Quanity (pcs) |
8pcs |
||||||
Cabinet Pixels |
32768 pixels |
||||||
Pixel Density |
65536 pixels/m2 |
||||||
Cabinet Materials |
Die Casting Aluminum Cabinet for rental purpose |
||||||
Cabinet Weight |
10 kg per cabinet |
||||||
Packaging |
Fly case |
||||||
Fly Case Size |
105 * 65 * 65CM ( one case for six cabinets ) / 85kg |
||||||
Whole Screen Specification |
|||||||
Screen Brightness |
≥4500cd/m2 |
||||||
Driving Method |
1/16 scan |
||||||
Best Viewing Distance |
3.91m - 40m |
||||||
Max. Power Consumption |
600W/m2 |
||||||
Average Power Consumption |
180W/m2 |
||||||
Gray Level |
65536 levels(16 bit ) |
||||||
Display Color |
16M |
||||||
Frame Frequency |
≥60Hz |
||||||
Refresh Frequency |
≥1920Hz |
||||||
Uninterrupted Working Hours |
≥72 hours |
||||||
Screen Life-span |
≥100,000 hours |
||||||
MTBF |
≥5,000 hours |
||||||
Discrete Blind Spot Rate |
<1/10000 |
||||||
Blind Spot Rate |
<1/10000 |
||||||
Protective Scale |
For indoor use only |
||||||
Screen Plainness |
<±1mm |
||||||
Power Supply Mode |
AC220±10% 50Hz/AC110±10% 60Hz |
||||||
Environment Temperature & Humidity |
Temperature:-20 Celsius~+60 Celsius |
||||||
Humidity:10%~90% RH |
|||||||
Control Mode |
Synchronous display with control PC by DVI |
||||||
Control System |
Linsn, Novastar or as you required |
||||||
Display Content |
Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
||||||
Interface |
Standard Ethernet |
||||||
Certificate |
CE , ROHS , FCC , CCC ,ISO9001 , ISO14001 |
FAQ :
1 : What is the warranty of your led display ?
A : We offer 5 years warranty , and more than 100000 hours screen life span .
2 : what is your payment term ?How long it takes to delivery ?
A : We usually accapt the T / T or L / C both of them will at least 30 % deposit in advance , and the rest
of 70 % will paid before delivery .The lead time is usually 20 day .
3 : How can you ensure the led display product quality ?
A : Before shippment , all the screens have aging test , and then we also have waterproof test and shake
test , ensure products can transportation safety and normal use .
4 : What is your pre - sale and post - sale service ?
A : For pre - sale service , we have professional sales team and technical team ,who are willing to answer
your question within 24 hours .
For post - sale service , we will instruct you how toinstallation , how to use , how to change the broken
moudles , and we can also send the technicals to your country , in general , our led display will not have
a big problem , you can rest assured to buy .
Services :
1 . Your inquiry related to our products or price will be replied in 12hrs .
2 . OEM&ODM,any your customized lightings we can help you to design and put into product .
3 . Distributoership are offered for your unique design and some our current models .
4 . Protection of your sales area,ideas of design and all your private information .
5 . Best cost performance and perfect service before and after sales .
