Product Details:
|
| Screen Size: | 500 * 500mm / 500 X 1000mm | Refresh Rate: | 3840hz |
|---|---|---|---|

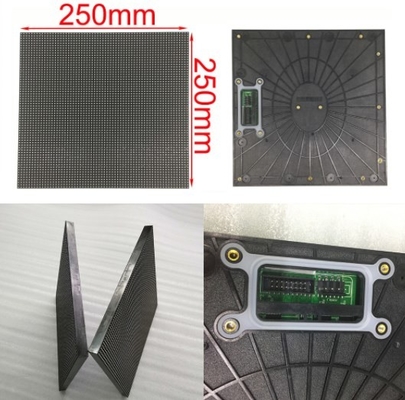

| Module Size: | 250 X 250mm | Brightness: | ≥ 5000 Nits |
| Module Qty: | W2 X H4 = 8PCS | Colors: | 16.7 Trillion |
| High Light: | P3.91mm stage background screen,IP65 stage decorations background screen,led stage background 40m view |
||
Wedding Led Screen P3.91 Advertising Shopping Mall Wedding Rental Waterproof LED Display Screen
Advantages :
It is extremely easy to calculate the area of LED screen because it is consist of 500 * 500mm or
500mm * 1000mm cabinet ; the appearance is very elegant , it looks very high end and quality is very stable ;
with die - casting aluminum cabinet , very strong and precision is very high , tolerance can be
controlled in 0.1mm so the surface is very smooth , almost no gap between cabinets .
Technical parameters :
|
P3.91 Rental Stage Video LED Display Screen For Outdoor |
|||||||
|
Item |
Technical Parameters |
||||||
|
LED Parameters |
|||||||
|
Item Name |
LED Type |
Brightness |
Wave Length |
H/V Visual Angle |
|||
|
Red LED |
SMD1921 |
540-702mcd |
620-625nm |
160º/160º |
|||
|
Green LED |
SMD1921 |
1200-1300mcd |
519-522nm |
160º/160º |
|||
|
Blue LED |
SMD1921 |
200-260mcd |
462-465nm |
160º/160º |
|||
|
Module Specification |
|||||||
|
Pixel Pitch |
3.91mm |
||||||
|
Pixel Configuration |
1R1G1B |
||||||
|
Module Resolution |
64 x 64 pixels |
||||||
|
Module Pixles |
4096 pixels |
||||||
|
Module Size |
250mm X 250mm |
||||||
|
Cabinet Specification |
|||||||
|
Cabinet Size(W X H X D) |
500mm x 1000mm x 80mm |
||||||
|
Cabinet Resolution(dot) |
128 x 256 pixels |
||||||
|
Module Quanity (pcs) |
8pcs |
||||||
|
Cabinet Pixels |
32768 pixels |
||||||
|
Pixel Density |
65536 pixels/m2 |
||||||
|
Cabinet Materials |
Die Casting Aluminum Cabinet for rental purpose |
||||||
|
Cabinet Weight |
10 kg per cabinet |
||||||
|
Packaging |
Fly case |
||||||
|
Fly Case Size |
105 * 65 * 65CM ( one case for six cabinets ) / 85kg |
||||||
|
Whole Screen Specification |
|||||||
|
Screen Brightness |
≥4500cd/m2 |
||||||
|
Driving Method |
1/16 scan |
||||||
|
Best Viewing Distance |
3.91m - 40m |
||||||
|
Max. Power Consumption |
600W/m2 |
||||||
|
Average Power Consumption |
180W/m2 |
||||||
|
Gray Level |
65536 levels(16 bit ) |
||||||
|
Display Color |
16M |
||||||
|
Frame Frequency |
≥60Hz |
||||||
|
Refresh Frequency |
≥1920Hz |
||||||
|
Uninterrupted Working Hours |
≥72 hours |
||||||
|
Screen Life-span |
≥100,000 hours |
||||||
|
MTBF |
≥5,000 hours |
||||||
|
Discrete Blind Spot Rate |
<1/10000 |
||||||
|
Blind Spot Rate |
<1/10000 |
||||||
|
Protective Scale |
For indoor use only |
||||||
|
Screen Plainness |
<±1mm |
||||||
|
Power Supply Mode |
AC220±10% 50Hz/AC110±10% 60Hz |
||||||
|
Environment Temperature & Humidity |
Temperature:-20 Celsius~+60 Celsius |
||||||
|
Humidity:10%~90% RH |
|||||||
|
Control Mode |
Synchronous display with control PC by DVI |
||||||
|
Control System |
Linsn, Novastar or as you required |
||||||
|
Display Content |
Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
||||||
|
Interface |
Standard Ethernet |
||||||
|
Certificate |
CE , ROHS , FCC , CCC ,ISO9001 , ISO14001 |
||||||
FAQ :
1 : What is the warranty of your led display ?
A : We offer 5 years warranty , and more than 100000 hours screen life span .
2 : what is your payment term ?How long it takes to delivery ?
A : We usually accapt the T / T or L / C both of them will at least 30 % deposit in advance , and the rest
of 70 % will paid before delivery .The lead time is usually 20 day .
3 : How can you ensure the led display product quality ?
A : Before shippment , all the screens have aging test , and then we also have waterproof test and shake
test , ensure products can transportation safety and normal use .
4 : What is your pre - sale and post - sale service ?
A : For pre - sale service , we have professional sales team and technical team ,who are willing to answer
your question within 24 hours .
For post - sale service , we will instruct you how toinstallation , how to use , how to change the broken
moudles , and we can also send the technicals to your country , in general , our led display will not have
a big problem , you can rest assured to buy .
Services :
1 . Your inquiry related to our products or price will be replied in 12hrs .
2 . OEM & ODM , any your customized displays we can help you to design and put into product .
3 . Longda led are offered for your unique design and some our current models .
4 . Protection of your sales area , ideas of design and all your private information .
5 . Best cost performance and perfect service before and after sales .
