Product Details:
|
| PCB Color: | Black | LED Lamp: | Kinglight2121 |
|---|---|---|---|
| Cabinet Material: | Diecasting Aluminum Cabinet | IC Type: | 2153 |
| Physical Density: | 65410 Dots / M² | Drive Mode: | 16s |
| High Light: | Kinglight2121 led screen display wedding,led display for marriage IP65,marriage led screen ODM |
||

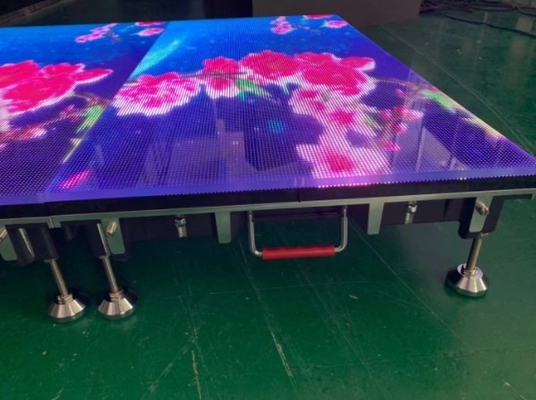

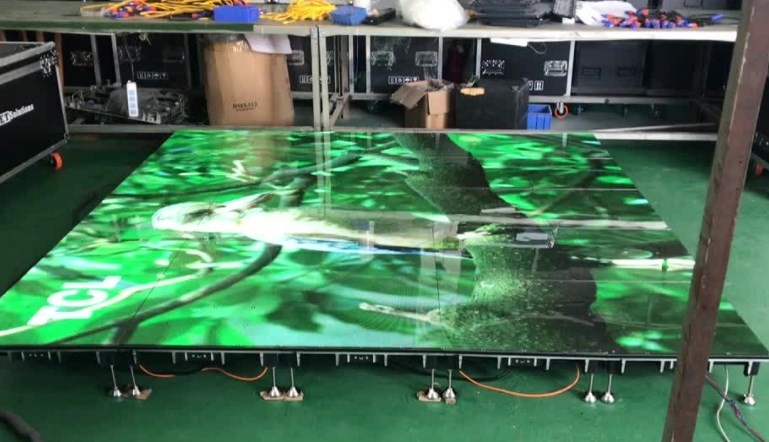

Wedding Led Screen Stage Display IP65 Outdoor Wedding Decoration P3.91 LED Screen Dance Floor
Product Introduction :
Wedding led screen stage display IP65 outdoor P3.91 has high definition and high resolution
with wonderful visual performance ; ensures the spectators far from the screen can still
enjoy what is shown and guarantee superior performance even with small screen size .
Technical parameters:
|
P3.91 Rental Stage Video LED Display Screen For Outdoor |
||||||||
|
1 |
Item Name |
LED Type |
Brightness |
Wave Length |
H/V Visual Angle |
|||
|
2 |
Red LED |
SMD1921 |
540-702mcd |
620-625nm |
160º/160º |
|||
|
3 |
Green LED |
SMD1921 |
1200-1300mcd |
519-522nm |
160º/160º |
|||
|
4 |
Blue LED |
SMD1921 |
200-260mcd |
462-465nm |
160º/160º |
|||
|
Module Specification |
||||||||
|
1 |
Pixel Pitch |
3.91mm |
||||||
|
2 |
Pixel Configuration |
1R1G1B |
||||||
|
3 |
Module Resolution |
64 x 64 pixels |
||||||
|
4 |
Module Pixles |
4096 pixels |
||||||
|
5 |
Module Size |
250mm X 250mm |
||||||
|
Cabinet Specification |
||||||||
|
1 |
Cabinet Size(W*H*T) |
500mm x 1000mm x 80mm |
||||||
|
2 |
Cabinet Resolution |
128 x 256 pixels |
||||||
|
3 |
Module Quanity |
2 * 4 = 8pcs |
||||||
|
4 |
Cabinet Pixels |
32768 pixels |
||||||
|
5 |
Pixel Density |
65410 pixels/m² |
||||||
|
6 |
Cabinet Material |
Die Casting Aluminum Cabinet for rental purpose |
||||||
|
7 |
Cabinet Weight |
10 kg per cabinet |
||||||
|
8 |
Packaging |
Fly case |
||||||
|
9 |
Fly Case Size |
105*65*65CM ( one case for six cabinets ) / 85kg |
||||||
|
Whole Screen Specification |
||||||||
|
1 |
Screen Brightness |
≥4500cd/m² |
||||||
|
2 |
Driving Method |
1/16 scan |
||||||
|
3 |
Max. Power Consumption |
600W/m2 |
||||||
|
4 |
Average Power Consumption |
180W/m2 |
||||||
|
5 |
Gray Level |
65536 levels(16 bit ) |
||||||
|
6 |
Display Color |
16M |
||||||
|
7 |
Frame Frequency |
≥60Hz |
||||||
|
8 |
Refresh Frequency |
≥1920Hz |
||||||
|
9 |
Uninterrupted Working Hours |
≥72 hours |
||||||
|
10 |
Screen Life-span |
≥100,000 hours |
||||||
|
11 |
MTBF |
≥5,000 hours |
||||||
|
12 |
Discrete Blind Spot Rate |
<1/10000 |
||||||
|
13 |
Continuous Blind Spot Rate |
None |
||||||
|
14 |
Blind Spot Rate |
<1/10000 |
||||||
|
15 |
Protective Scale |
For indoor use only |
||||||
|
16 |
Screen Plainness |
<±1mm |
||||||
|
17 |
Power Supply Mode |
AC220±10% 50Hz/AC110±10% 60Hz |
||||||
|
18 |
Environment Temperature & Humidity |
Temperature:-20 Celsius~+60 Celsius |
||||||
|
Humidity:10%~90% RH |
||||||||
|
19 |
Control Mode |
Synchronous display with control PC by DVI |
||||||
|
20 |
Control System |
Linsn, Novastar or as you required. |
||||||
|
21 |
Display Content |
Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
||||||
|
22 |
Interface |
Standard Ethernet |
||||||
|
23 |
Transmission Distance |
Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
||||||
|
24 |
Certificate |
CE, ROHS, FCC , CCC, ISO9001, ISO14001 |
||||||
Your questions :
Q1 : LED display models are generally expressed in PX , such as P2 , P3 , P4 ..... P8 , P10 , what does this mean?
A : P1.25 , P2 , P3 , P4 ..... P8 , P10 means that the pixel pitch is 1.25mm , 2mm , 3mm , 4mm ....10mm ,
which determines resolution of a display . Pixel pitch is smaller , led display resolution is higher .
Q2 : What pixel pitch should I choose on my display ?
A : Using the PX screen , it is determined mainly by the viewing distance , the size of the
display screen , the desired effect and the customer budget .
Q3 : To order a display , What kind of information do I have to offer you ?
A : You should provide width / height of the display , the main use , the viewing distance ,
the scene photos , special requirements , then I can provide you with a detailed list of quotations .
Q4 : How to install ?
A : Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram ,
free remote debugging . We can also send our engineers to the site to guide the installation if needed .
Q5 : What about the lead time ?
A : Orders less than 50 square meter display , lead time is 15 working days .
Q6 : Can I order a sample ?
A : Yes , your sample orders are welcome , after checking our quality and service ,
we are confident that you will come back for your future orders .
