Product Details:
|
| Pixel: | P4.81 | Module Size: | 250 X 250mm |
|---|---|---|---|
| Scan: | 13s | Cabinet Size: | 500 * 500mm / 500 X 1000mm |
| Brightness: | ≥ 5000nits | Refresh Rate: | 3840hz |
| High Light: | 52x52 pixels Wedding Led Screen,stage rental led screen 620nm,led video wall stage 625nm |
||

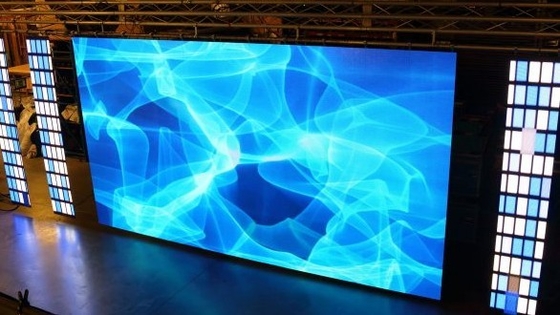

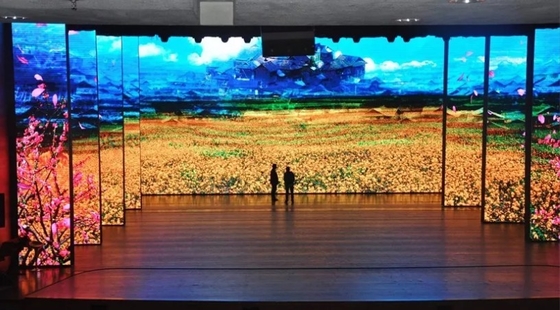

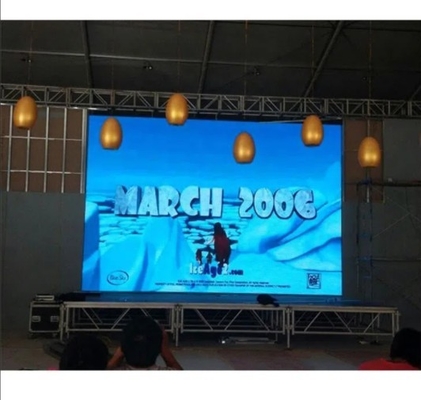

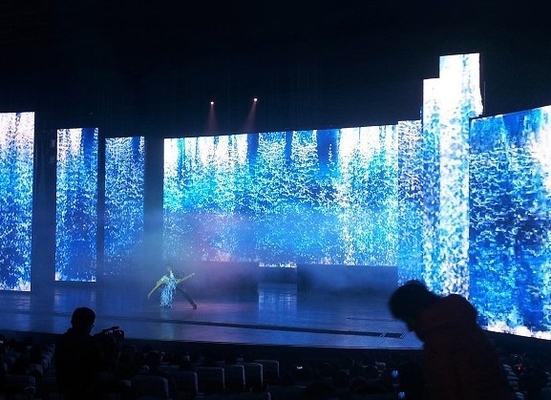

Wedding Led Screen Outdoor P4.81 Rental LED Screen For Wedding Backdrop Stage
Advantages :
1 ) It is extremely easy to calculate the area of LED screen because it is consist of 500 * 500mm cabinet
2 ) 16 bit color , 65536 gray scale , refresh rate over 3840HZ/S so the video or images on the LED screen
are very vivid and fresh. People who see it will get shocked by this amazing viewing experience
3 ) The appearance is very elegant, it looks very high end. Quality is very stable
4 ) It is die-casting aluminum cabinet, very strong and precision is very high , tolerance can be controlled
in 0.1mm so the surface is very smooth, almost no gap between cabinets
5 ) The side locks is spring locks, this is unique among all die-casting aluminum cabinets , especially popular
in European market and North American market
6 ) With power and signal connectors , Neutrik or Seetronic brand, very easy to install and dismantle
7 ) High contrast rate up to 5000 : 1 by using black LED
Technical parameters :
|
P4 .81 Rental Stage Video LED Display Screen For Outdoor |
|||||||
|
Item |
Technical Parameters |
||||||
|
LED Parameters |
|||||||
|
Item Name |
LED Type |
Brightness |
Wave Length |
H/V Visual Angle |
|||
|
Red LED |
SMD1921 |
540-702mcd |
620-625nm |
160º/160º |
|||
|
Green LED |
SMD1921 |
1200-1300mcd |
519-522nm |
160º/160º |
|||
|
Blue LED |
SMD1921 |
200-260mcd |
462-465nm |
160º/160º |
|||
|
Module Specification |
|||||||
|
Pixel Pitch |
4.81mm |
||||||
|
Pixel Configuration |
1R1G1B |
||||||
|
Module Resolution |
52 x 52 pixels |
||||||
|
Module Pixles |
2704 pixels |
||||||
|
Module Size |
250mm X 250mm |
||||||
|
Cabinet Specification |
|||||||
|
Cabinet Size(W X H X D) |
500mm x 1000mm x 80mm |
||||||
|
Cabinet Resolution(dot) |
103 x 103 pixels |
||||||
|
Module Quanity (pcs) |
8pcs |
||||||
|
Cabinet Pixels |
21632 pixels |
||||||
|
Pixel Density |
43222 pixels/m2 |
||||||
|
Cabinet Materials |
Die Casting Aluminum Cabinet for rental purpose |
||||||
|
Cabinet Weight |
10 kg per cabinet |
||||||
|
Packaging |
Fly case |
||||||
|
Fly Case Size |
105*65*65CM ( one case for six cabinets )/ 85kg |
||||||
|
Whole Screen Specification |
|||||||
|
Screen Brightness |
≥4500cd/m2 |
||||||
|
Driving Method |
1/13 scan |
||||||
|
Best Viewing Distance |
5m - 40m |
||||||
|
Max. Power Consumption |
200W/m2 |
||||||
|
Average Power Consumption |
100W/m2 |
||||||
|
Gray Level |
65536 levels(16 bit ) |
||||||
|
Display Color |
16M |
||||||
|
Frame Frequency |
≥60Hz |
||||||
|
Refresh Frequency |
≥1920Hz |
||||||
|
Uninterrupted Working Hours |
≥72 hours |
||||||
|
Screen Life-span |
≥100,000 hours |
||||||
|
MTBF |
≥5,000 hours |
||||||
|
Discrete Blind Spot Rate |
<1/10000 |
||||||
|
Continuous Blind Spot Rate |
None |
||||||
|
Blind Spot Rate |
<1/10000 |
||||||
|
Protective Scale |
For indoor use only |
||||||
|
Screen Plainness |
<±1mm |
||||||
|
Power Supply Mode |
AC220±10% 50Hz/AC110±10% 60Hz |
||||||
|
Environment Temperature & Humidity |
Temperature:-20 Celsius~+60 Celsius |
||||||
|
Humidity:10%~90% RH |
|||||||
|
Control Mode |
Synchronous display with control PC by DVI |
||||||
|
Control System |
Linsn, Novastar or as you required. |
||||||
|
Display Content |
Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
||||||
|
Interface |
Standard Ethernet |
||||||
|
Transmission Distance |
Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
||||||
|
Certificate |
CE, ROHS, FCC |
||||||
FAQ :
1:What is the warranty of your led display?
A:We offer 5 years warranty.and more than 100000 hours screen life span
2:what is your payment term?How long it takes to delivery?
A:We usually accapt the T/T or L/C.both of them will at least 30% deposit in advance,and the rest of
70% will paid before delivery.The lead time is usually 20 day
3:What is your pre-sale and post-sale service?
A:For pre-sale service,we have professional sales team and technical team,who are willing to answer
your question within 24 hours.
For post-sale service,we will instruct you how toinstallation,how to use,how to change the broken
moudles,and we can also send the technicals to your country,in general,our led display will not have a
big problem,you can rest assured to buy.
