Product Details:
|
| Pixel Pitch: | 1.667mm | Product Name: | Indoor Full Color Video Wall |
|---|---|---|---|
| Screen Dimension: | 640 X 480mm | Led Chip: | 1010 |
| Cabinet Material: | Die-casting Aluminum | Brightness: | 300 - 600 Nits |
| High Light: | LONGDA Small Pixel Led Display,conference video wall ISO9001,LONGDA indoor full color led display |
||

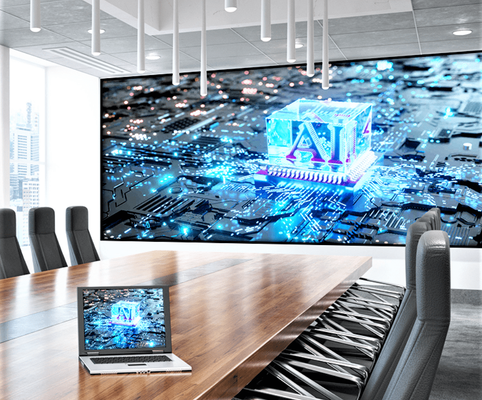

Small Pixel Led Display Used For Conference And Hotel With P1.667 Indoor Wall
Advantages :
1 . Ultra HD : up 359856 pixels per square meters , like as HD TV screen with full color ;
2 . Ultra slim cabinet : the thickness is only 65mm , with fashion configuration design ;
3 . High strength : made with high quality Die - casting Aluminum cabinet , enhance the heat dissipation ,
and extend the cabinet ' s working life .
Specifications :
|
Indoor P1.667 Full Color LED Screen |
||||||
|
Part I Technicial Parameters |
||||||
|

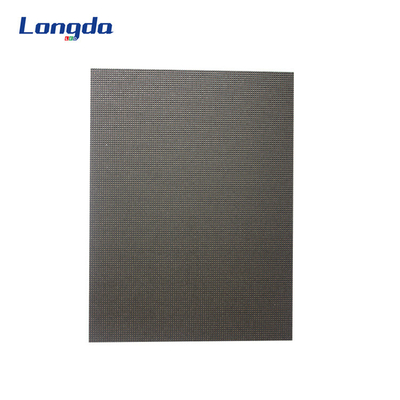

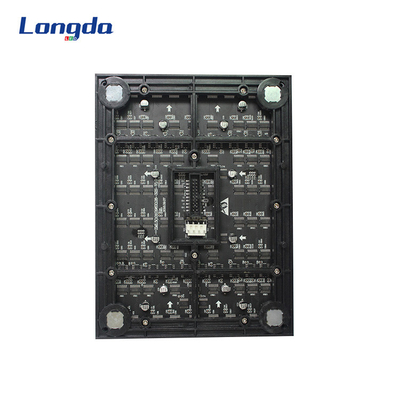

Led Module Specification |
||||||
|
NO. |
Item |
Specification |
||||
|
1 |
Pixel Pitch |
1.667mm |
||||
|
2 |
Module Resolution |
W192×H96dots |
W120×H90dots |
|||
|
3 |
Module Size |
320*160mm |
200*150mm |
|||
|
4 |
Led Packing |
1010/1212 |
1212 |
|||
|
5 |
IP Rate |
43 |
||||
|
6 |
IC |
6353 |
6363 |
|||
|
7 |
LED composition |
1R1G1B |
||||
|
Cabinet Specification |
||||||
|
1 |
Cabinet Size |
640*480mm |
400*300mm |
|||
|
2 |
Module Qty |
W2X H3 =6PCS |
W2× H2=4PCS |
|||
|
3 |
Physical Resolution |
W384×H288dots |
W240×H180dots |
|||
|
4 |
Power Consumption(MAX.) |
178 W/m² |
200W/m² |
|||
|
5 |
Power Consumption(AVE.) |
59 W/m² |
80W/m² |
|||
|
6 |
Cabinet Material |
Die-casting Aluminum |
||||
|
7 |
Physical Density |
360000 dots/m² |
||||
|
8 |
Net Weight |
9.7Kg |
5.6Kg |
|||
|
Screen Specification |
||||||
|
1 |
Brightness |
≥500cd/m² |
≥600cd/m² |
|||
|
2 |
Colors |
4.398 trillion |
16.7 trillion |
|||
|
3 |
Brightness Control |
Software 256 level adjustable |
||||
|
4 |
Gray Level |
14 |
||||
|
5 |
View Distance |
≥1.7m |
1.6-15m |
|||
|
6 |
Refresh Rate |
≥3840Hz |
≥1920~3840Hz |
|||
|
7 |
Drive Mode |
1/64s |
1/45s |
|||
|
8 |
Life Span |
100,000h |
||||
|
9 |
MTBF |
1000h |
||||
|
10 |
Control mode |
Synchronous control or Asynchronous control |
||||
|
11 |
Frame Frequency |
≥60Hz |
||||
|
12 |
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
||||
|
13 |
Operation Temperature |
-20℃ ～ +45℃ |
||||
|
14 |
Operation Humidity |
10%～95% |
||||
FAQ :
1 . Reply your inquiry in 24 working hours ;
2 . Experienced staffs answer all your query in fluent English , Spanish , French , German , etc ;
3 . Customized design is available , OEM & ODM are welcomed ;
4 . Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs ;
5 . Special discount and protection of sales area provided to our distributor ;
6 . Warmly welcome your visit in our company if available ;
7 . Guidance service : We can guide on line if customers have questions about the installation and usage ,
for large project , we provide engineer for a week free training , or if customer could bear the relevant cost ,
our engineer can go to customer' s country for on - site guidance ;
8 . Warranty period : 2 - 3 years after shipment .
