Product Details:
|
| Drive Mode: | 1 / 16s | MTBF: | 1000h |
|---|---|---|---|
| Certification: | CE / ROHS / FCC / CCC / ISO9001 / ISO14001 | Pixel: | 5mm |
| Brightness: | ≥5000nits | Refresh Rate: | 3840hz |
| High Light: | parking lot p5 led module,module led p5 indoor RoHs,module led p5 full color CCC |
||

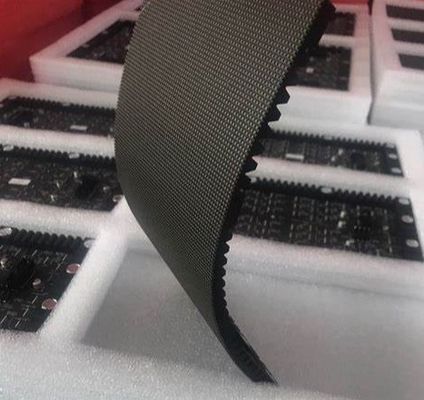

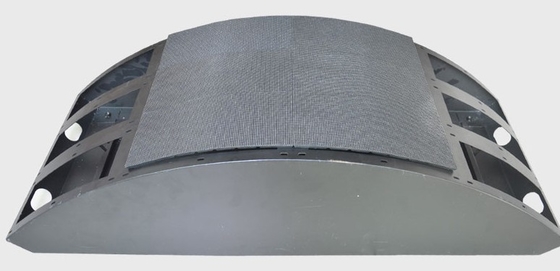

LED Flexible Module Indoor P5mm Soft Flexible LED Modules With Any Shape
Product Introduction
|
Business Organizations |
supermarket, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc. |
|
Financial Organizations |
banks, security company, insurance company, post office, hospital, school, etc. |
|
Public Places |
subway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc. |
|
Entertainments |
movie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc. |
Technical parameters
|
P5 Full Color LED Screen |
|||||||
|
Part I Technicial Parameters |
|||||||
|
Led Module Specification |
|||||||
|
Item |
Specification |
||||||
|
Pixel Pitch |
5mm |
||||||
|
Module Resolution |
W64×H32dots |
W32*H32dots |
W64×H32dots |
W32×H32dots |
|||
|
Module Size |
320*160mm(soft) |
160*160mm |
320*160mm |
160*160mm |
|||
|
Led Packing |
2121 |
Nationstar2121 |
Nationstar2121 |
3528 |
|||
|
IP Rate |
43 |
65 |
|||||
|
IC |
5124 |
||||||
|
LED composition |
1R1G1B |
||||||
|
Cabinet Specification |
|||||||
|
Cabinet Size |
640*640mm |
||||||
|
Module Qty |
W2X H4=8PCS |
W4X H4=16PCS |
W2X H4=8PCS |
W4X H4=16PCS |
|||
|
Physical Resolution |
W128×H128dots |
||||||
|
Power Consumption(MAX.) |
200W/m2 |
300W/m2 |
|||||
|
Power Consumption(AVE.) |
110W/m2 |
170W/m2 |
|||||
|
Cabinet Material |
Die-casting Aluminum |
||||||
|
Physical Density |
40000 dots/m2 |
||||||
|
Net Weight |
6.8Kg |
7Kg |
7Kg |
7.2Kg |
|||
|
Screen Specification |
|||||||
|
Brightness |
600cd/m2 |
700cd/m2 |
700cd/m2 |
1100cd/m2 |
|||
|
Colors |
16.7 trillion |
||||||
|
Brightness Control |
Software 256 level adjustable |
||||||
|
Gray Level |
14 |
||||||
|
View Distance |
≥5m~30m |
||||||
|
Refresh Rate |
≥1920Hz |
≥1200~1920Hz |
|||||
|
Drive Mode |
1/16s |
1/8s |
|||||
|
Life Span |
100,000h |
||||||
|
MTBF |
1000h |
||||||
|
Control mode |
Synchronous control or Asynchronous control |
||||||
|
Frame Frequency |
≥60Hz |
||||||
|
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
||||||
|
Operation Temperature |
-20℃ ～ +45℃ |
||||||
|
Operation Humidity |
10%～95% |
||||||
FAQ
1:What is the warranty of your led display?
A:We offer 5 years warranty.and more than 100000 hours screen life span
2:what is your payment term?How long it takes to delivery?
A:We usually accapt the T/T or L/C.both of them will at least 30% deposit in advance,and the rest of 70%
will paid before delivery.The lead time is usually 20 day
3:How can you ensure the led display product quality?
A:Before shippment,all the screens have aging test.and then we also have waterproof test and shake test,
ensure products can transportation safety and normal use.
4:What is your pre-sale and post-sale service?
A:For pre-sale service,we have professional sales team and technical team,who are willing to answer your
question within 24 hours.
For post-sale service,we will instruct you how toinstallation,how to use,how to change the broken moudles,
and we can also send the technicals to your country,in general,our led display will not have a big problem,
you can rest assured to buy.
Services
1.Your inquiry related to our products or price will be replied in 12hrs.
2.OEM&ODM,any your customized lightings we can help you to design and put into product.
3.Distributoership are offered for your unique design and some our current models.
4.Protection of your sales area,ideas of design and all your private information.
5.Best cost performance and perfect service before and after sales.
Company other products
Indoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P3, P3.9, P4, P4.8, P5, P6
Outdoor fixed LED screen: P5, P6, P8, P10
Outdoor rental LED screen: P3.9, P4.8, P5, P6, P6.25, P8, P10
Small pitch LED screen: P1.6, P1.9
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P8, P10
LED poster player: P2.5,P3, P4, P5, P6, P8, P10
