Product Details:
|
| PCB Size: | 240 * 120mm | Pixel Pitch: | 2.5mm |
|---|---|---|---|
| Drive Mode: | 24S | Led Lamp: | KINGLIGHT 2020 |
| Module Resolution: | 96 X 48 Dots | Life Span: | 100000h |
| High Light: | 1R1G1B LED Flexible Module,led display module 1/ 24s,led screen module 96x48 dots |
||

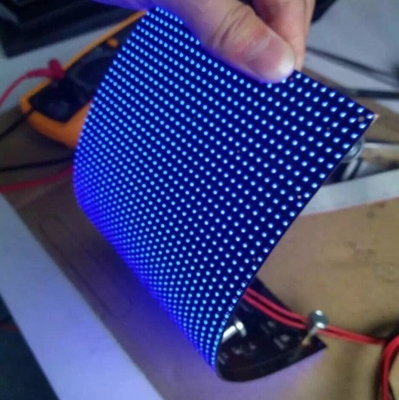

LED Flexible Module Indoor P2.5 High Quality Full Color Flexible LED Display Screen Module
Product Introduction
|
Business Organizations |
supermarket, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc. |
|
Financial Organizations |
banks, security company, insurance company, post office, hospital, school, etc. |
|
Public Places |
subway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc. |
|
Entertainments |
movie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc. |
Specifications
|
Indoor P2.5 Full Color LED Screen |
||||
|
Part I Technicial Parameters |
||||
|
Led Module Specification |
||||
|
Item |
Specification |
|||
|
Pixel Pitch |
2.5mm |
|||
|
Module Resolution |
W96*H48dots |
W128×H64dots |
||
|
Module Size |
240*120mm(soft) |
320*160mm |
||
|
Led Packing |
2121 |
|||
|
IP Rate |
43 |
|||
|
IC |
5124 |
|||
|
LED composition |
1R1G1B |
|||
|
Cabinet Specification |
||||
|
Cabinet Size |
480*480mm |
640*640mm |
||
|
Module Qty |
W2X H4=8PCS |
W2× H4=8PCS |
||
|
Physical Resolution |
W192×H192dots |
W256×H256dots |
||
|
Power Consumption(MAX.) |
200W/m2 |
300W/m2 |
||
|
Power Consumption(AVE.) |
110W/m2 |
120W/m2 |
||
|
Cabinet Material |
Die-casting Aluminum |
|||
|
Physical Density |
160000 dots/m2 |
|||
|
Net Weight |
5.6Kg |
7.8Kg |
||
|
Screen Specification |
||||
|
Brightness |
800cd/m2 |
860cd/m2 |
||
|
Colors |
16.7 trillion |
|||
|
Brightness Control |
Software 256 level adjustable |
|||
|
Gray Level |
14 |
|||
|
View Distance |
2m~30m |
|||
|
Refresh Rate |
≥1920Hz |
|||
|
Drive Mode |
1/24s |
1/32s |
||
|
Life Span |
100,000h |
|||
|
MTBF |
1000h |
|||
|
Control mode |
Synchronous control or Asynchronous control |
|||
|
Frame Frequency |
≥60Hz |
|||
|
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
|||
|
Operation Temperature |
-20℃ ～ +45℃ |
|||
|
Operation Humidity |
10%～95% |
|||
Our service
1 . Your inquiry related to our products or price will be replied within 24hrs
2 . OEM & ODM , any your customized lightings we can help you design and put into production
3 . Distributorship are offered for your unique design and some our current models
4 . Protection of your sales area , ideas of design and all your private information
5 . Top quality + Reasonable price + Responsible After Service = Successful & Win
6 . Longda led can offer you LED stage display , LED outdoor video wall , wedding LED display ,
stage LED electronic screen and led large screen full color display .
Trade terms
1 . Package : Anti - shaking wooden package , Air flight case or Carton package
2 . Payment : T / T , 30 % deposits before production , 70 % balance to be paid before delivery
3 . Shipping freight are quoted under your requests
4 . Warranty time : 2 - 3 years
5 . Delivery time : 8 - 15 working days
