Product Details:
|
| Screen Function: | Usde In Shopping Mall / Plaza / Exhibition Hall | Usage: | Indoor & Outdoor |
|---|---|---|---|
| Screen Name: | Flexible 4mm Video Wall | Power Supply: | Meanwell |
| Viewing Angle(°): | 140 - 160° | Color Temperature: | RGB |
| High Light: | soft led display 256*128mm,P4mm programmable flexible led display,Meanwell flexible programmable led display |
||

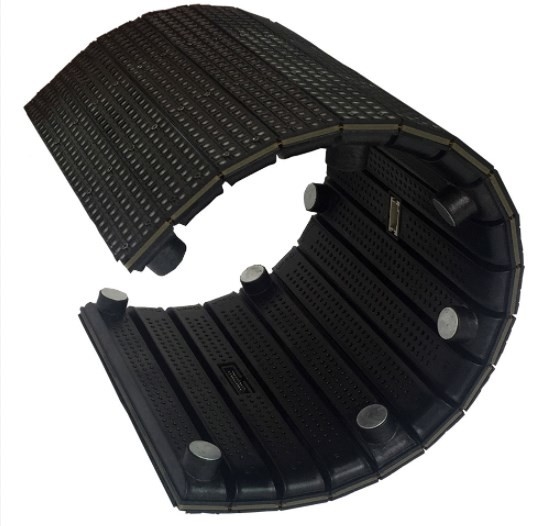

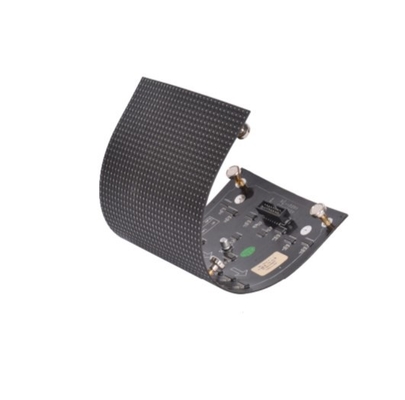

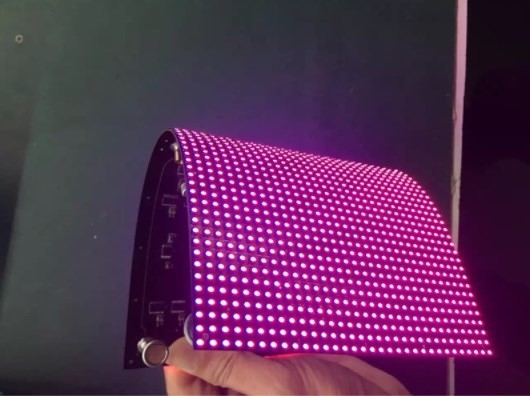

LED Flexible Soft Flexible LED Module / Programmable Flexible LED Display Module P4 256 * 128mm
Applications

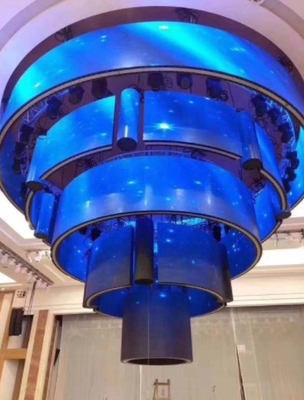

Led flexible indoor P4 module be used in shopping mall , entertainment park , theme park , plaza ,
wedding , concert stage , exhibition hall , and so on .
Specifications
|
P4 Flexible LED Screen |
|||
|
Pixel Pitch |
4mm |
||
|
Module Resolution |
W64×H32dots |
||
|
Module Size |
256*128mm(soft) |
||
|
Led Packing |
2121 |
||
|
IP Rate |
43 |
||
|
IC |
Constant current IC |
||
|
LED composition |
1R1G1B |
||
|
Cabinet Specification |
|||
|
Cabinet Size |
512*512mm |
||
|
Module Qty |
W2X H4 =8PCS |
||
|
Physical Resolution |
W128×H128dots |
||
|
Power Consumption(MAX.) |
200 W/m2 |
||
|
Power Consumption(AVE.) |
100 W/m2 |
||
|
Cabinet Material |
Die-casting Aluminum |
||
|
Physical Density |
62500 dots/m2 |
||
|
Net Weight |
7Kg |
||
|
Screen Specification |
|||
|
Brightness |
900cd/m2 |
||
|
Colors |
16.7 trillion |
||
|
Brightness Control |
Software 256 level adjustable |
||
|
Gray Level |
14 |
||
|
View Distance |
5～30m |
||
|
Refresh Rate |
≥1200~1920Hz |
||
|
Drive Mode |
1/16s |
||
|
Life Span |
100,000h |
||
|
MTBF |
1000h |
||
|
Control mode |
Synchronous control or Asynchronous control |
||
|
Frame Frequency |
≥60Hz |
||
|
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
||
|
Operation Temperature |
-20℃ ～ +45℃ |
||
|
Operation Humidity |
10%～95% |
||
Trade Terms
|
Payment terms |
30% deposit before production, 70% balance before shipping |
|
Packing |
-Standard Export Carton with fully Polyfoam or Pearl Wool |
|
Shipping |
LED module: 3 to 5 working days upon receiving deposit payment |
|
After-Sales-Service |
-Lifetime with professional engineer support for free |
Your questions
1 : When will you make the delivery ?
We can make the delivery within 3 - 5 working days for the led modules and 15 - 18 days for the led finished screen
according to the size and quantities of your order .
2 : What technical supports can you offer ?
We provide all kinds of technology trainings for free , including the operation and maintenance training of the LED
screens in our factory , we can send an engineer team to the country of the customer to instruct the installation .
3 : How long is the warranty ?
The standard warranty is 1 year . It could be longer upon request .
4 : Do you provide any free spare parts in each order ?
Yes , a certain amount of spare parts will be provided for free , spare parts including module , power cable ,
signal cable , LED lamp , IC , mask , power supply , receiving card , etc .
