Product Details:
|
| Pixel Pitch: | 2.5mm | Lamp Packing: | 2121 |
|---|---|---|---|
| Usage: | Indoor | Screen Dimension: | 640 * 480mm |
| Cabinet Material: | Die - Casting Aluminum | Brightness Control: | Software 256 Level Adjustable |
| High Light: | hd led panel 1000cd/ m2,stage background led screen 1.8m,led stage curtain screen SMD1515 |
||

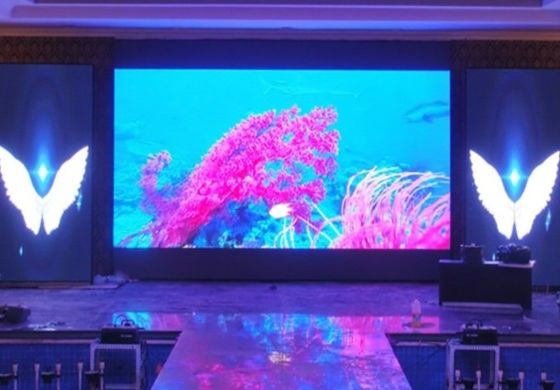

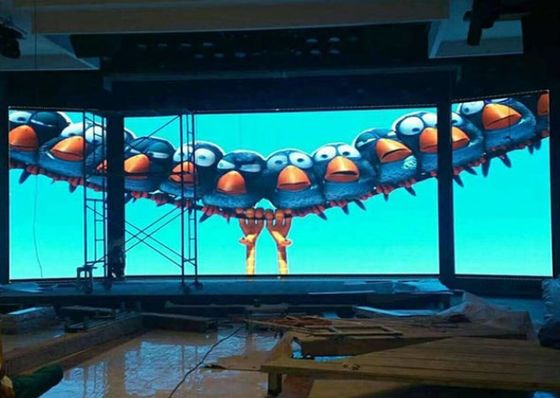

Led Stage Backdrop Screen Slim Rental LED Display P2.5 Indoor LED Video Wall Screen
Introductions :
1 . Ultra HD : up 160000 pixels per square meters , like as HD TV screen with full color ;
2 . Ultra slim cabinet : the thickness is only 65mm , with fashion configuration design ;
3 . High strength : made with high quality die - casting aluminum cabinet , enhance the heat dissipation ,
and extend the cabinet's working life .
Specifications :
|
Model No |
SP0.9 |
SP1.2 |
SP1.5 |
SP1.8 |
|
Pixel Pitch |
0.9375mm |
1.25mm |
1.56mm |
1.875mm |
|
LED |
Mini LED |
SMD1010 |
SMD1010 |
SMD1515 |
|
Module Size(mm) |
300*168.75 |
300*168.75 |
300*168.75 |
300*168.75 |
|
Module Resolution(dots/) |
320 * 180 |
240 * 135 |
192 * 108 |
160 * 90 |
|
Pixel Density |
1,137,777dots/m² |
640,000dots/m² |
409,600dots/m² |
284,444dots/m² |
|
Cabinet Material |
Die cast aluminum |
Die cast aluminum |
Die cast aluminum |
Die cast aluminum |
|
Cabinet Size(mm) |
600*337.5*31 |
600*337.5*31 |
600*337.5*31 |
600*337.5*31 |
|
Cabinet Weight |
3.8kg/cabinet |
3.8kg/cabinet |
3.8kg/cabinet |
3.8kg/cabinet |
|
maintenance method |
Front/rear |
Front/rear |
Front/rear |
Front/rear |
|
Support hanging or not |
YES |
YES |
YES |
YES |
|
Best Viewing Distance |
0.9m |
1.2m |
1.5m |
1.8m |
|
Best Viewing Angle |
H:160° W:160° |
H:160° W:160° |
H:160° W:160° |
H:160° W:160° |
|
Max Power consumption |
350 W/m² |
350 W/m² |
350 W/m² |
350 W/m² |
|
Average Power Consumption |
120 W/m² |
120 W/m² |
120 W/m² |
120 W/m² |
|
Grey Scale |
14--24 bits |
14--24 bits |
14--24 bits |
14--24 bits |
|
Color Temperature |
6500~9000k |
6500~9000k |
6500~9000k |
6500~9000k |
|
Control Method |
Synchronous |
Synchronous |
Synchronous |
Synchronous |
|
Refresh Rate |
1920-3840 Hz |
1920-3840 Hz |
1920-3840 Hz |
1920-3840 Hz |
|
Brightness(cd/m²) |
800-1000 |
800-1000 |
800-1000 |
800-1000 |
|
Operating Voltage |
110V/220V |
110V/220V |
110V/220V |
110V/220V |
|
Working Humidity |
10% - 90% |
10% - 90% |
10% - 90% |
10% - 90% |
|
Working Temperature |
-20ºC - 65ºC |
-20ºC - 65ºC |
-20ºC - 65ºC |
-20ºC - 65ºC |
|
Protection Level |
IP20 |
IP20 |
IP20 |
IP20 |
FAQ :
1 . Reply your inquiry in 24 working hours .
2 . Experienced staffs answer all your query in fluent English , Spanish , French , German etc .
3 . Customized design is available , OEM & ODM are welcomed .
4 . Exclusive and unique solution can be provided to our customer by our well - trained and professional
engineers and staffs .
5 . Special discount and protection of sales area provided to our distributor .
6 . Warmly welcome your visit in our company if available .
7 . Guidance service : We can guide on line if customers have questions about the installation and usage .
For large project , we provide your engineer a week free training , or if customer could bear the relevant cost ,
our engineer can go to customer ' s country for on-site guidance .
8 . Warranty period : 2 - 3 years after shipment .
