Indoor Full Color Led Display Screen 320 * 160mm RGB P2.5 Led Soft Module
Introduction :

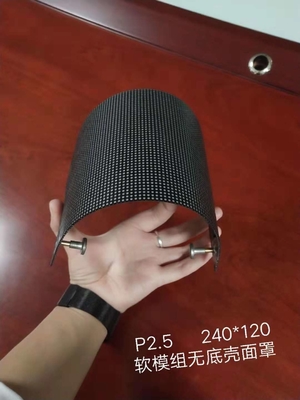

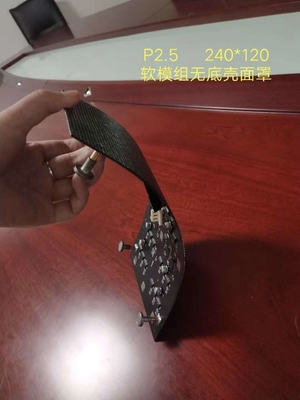

P2.5 Indoor full color led display screen compared with the traditional PCB material , the flexible FPC circuit
board made of flexible insulating material has high compressive and distortion resistance , which can
better solve the problems of installation difficulties .
Specification :
| Type |
P2.5 |
| Pitch |
2.5mm |
| Series |
Flexible 320*160mm |
| Cabinet Type |
Customized |
| Access / Maintenance |
Front Maintenance |
| LED Model & Type |
SMD2121 |
| LED Make |
Rayshine |
| Refresh |
3840Hz |
| Brightness |
800nits |
| Contrast |
5000:1 |
| Viewing Angle |
H 160°,V 160° |
| LED composition |
1R1G1B |
| Control System |
NovaStar |
| Scan |
1/32 |
| Density(dot/m²) |
160000 |
| Module Pixels (L*H) |
128*64 |

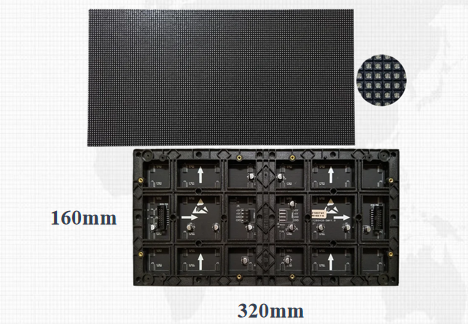

| Module Size (L*H)mm |
320*160mm |
| Cabinet Size(L*H)mm |
640x480mm |
| Max Power (watts / m²) |
358 |
| Avg Power (watts/m²) |
146 |
| Module Weight (kg/pcs) |
0.25kg |
| Certification |
CE / ROHS / FCC / CCC / ISO9001 / ISO14001 |
| Ingress Protection (IP) |
IP30 |
| Grayscale |
14-16bit+ |
| Control mode |
Synchronous control or Asynchronous control |
| Operation Temperature |
- 20 ℃ ～ + 45 ℃ |
| Operation Humidity |
10 % ～ 95 % |
| Life Span |
100000h |

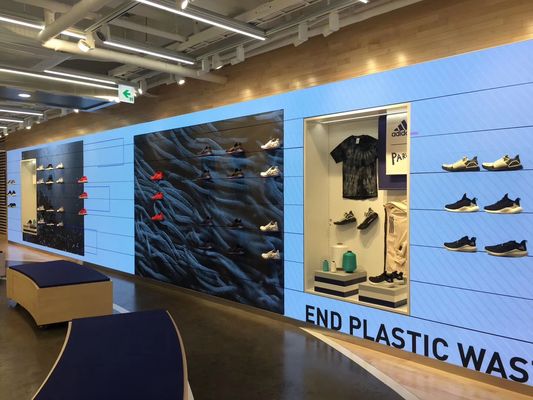

| Commercial & Retail |
Shopping Malls, Retail Stores,Storefronts,Brand Shops,Advertising Displays |
| Architecture & Public Spaces |
Glass Curtain Walls,Hotels,Airports,Office Buildings,Lobbies |
| Exhibition & Events |
Exhibition Halls,Trade Shows,Museums,Art Installations,Event Backdrops |
| Entertainment & Experience |
Auto Showrooms,Nightclubs,Restaurants, Entertainment Venues |
FAQ :
Q1 . How does your factory do regarding quality control ?
Quality is priority .
At first , our factory use the best SMT machine YAMAHA , all product aging test 48hours at least .
Our product approved CE / ROHS / FCC / CCC / ISO9001 / ISO140001 certificates .
Q2 . What is your MOQ ?
Any quantity is acceptable for your order . And the price is negotiable for large quantity .
Q3 . When will you make the delivery ?
We can make the delivery within 3 - 5 working days for the modules, 10 - 30 days for the display.
with cabinet according to the size and quantities of your order .
Q4 . How long is the warranty ?
The standard warranty is 2 or 3 years . It could be longer upon request .
Q5 . Do you provide any free spare parts in each order ?
Yes , a certain amount of spare parts will be provided for free , including module , power cable ,
signal cable , LED lamp , IC , mask , power supply , receiving card , etc .
Q6 . How to choose the control way by computer or phone ?
Synchronous by computer : usually for indoor fixed and all rental event .
Asynchronous by phone or ipad : widely used for outdoor fixed advertising .
Q7 . How about packing ?
Carton / Plywood case / Flightcase .
Q8 . Which shipping way can support ?
Our factory have shipping agent , if you want us help you for shipping , you can choose shipping by sea or air .
you only need to tell us your request and sea port or air port .
Q9 . Is the product customizable ?
Yes , we can customize the product according to your needs , you just need to provide the requirements details .
