Curved Led Panel P3 Led Display Led Screen Moudle 30m Viewing Distance SMD1415
Introduction:

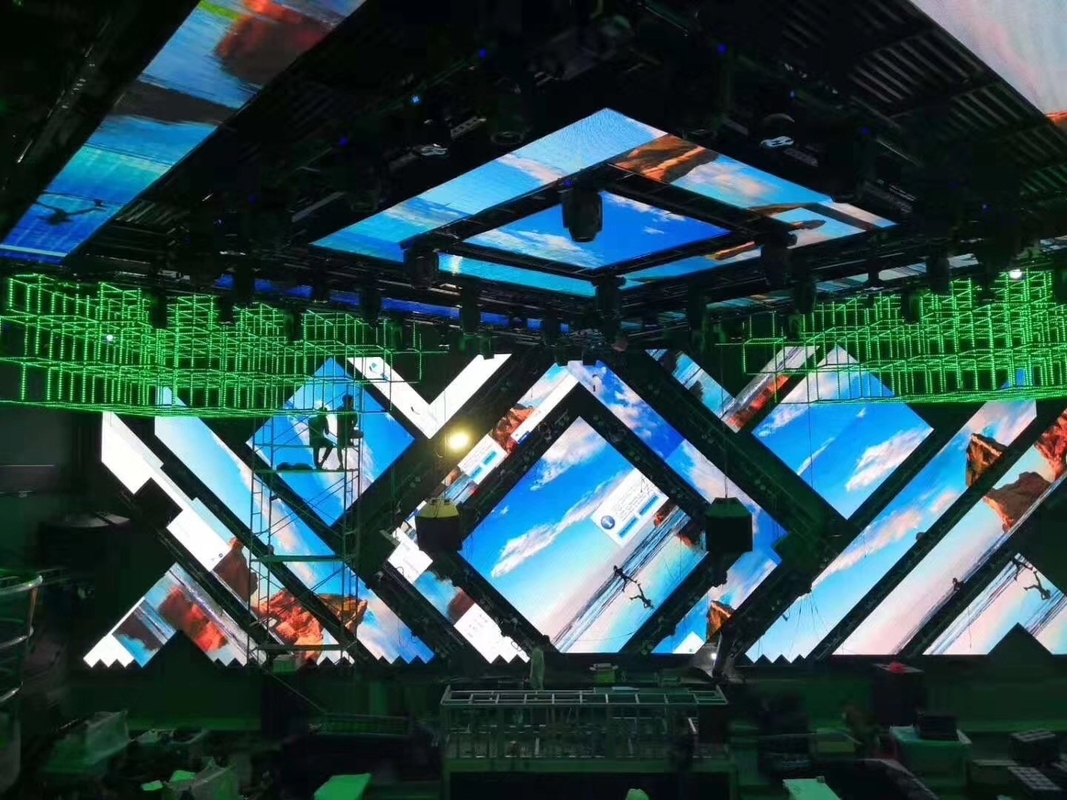

Our Curved LED Display creates stunning visual effects with bright colors, clear images, and smooth curves. It can be customized to different sizes and shapes to fit your project needs.

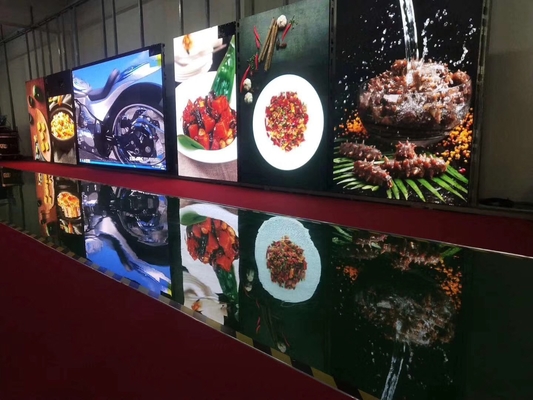

The modular design makes installation and maintenance easy. It is durable and energy-efficient, making it a great choice for shopping malls, advertising, exhibitions,and other indoor or outdoor applications.
Specifications :
| Pixel Pitch(mm) |
P3.076 |
| LED Lamp |
SMD1415 |

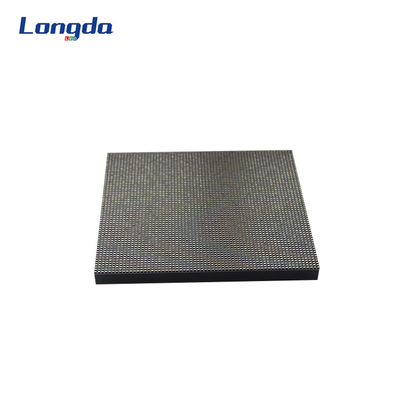

| Module Size |
320mmx160mm |
| Module Net Weight |
0.45kg/pcs |

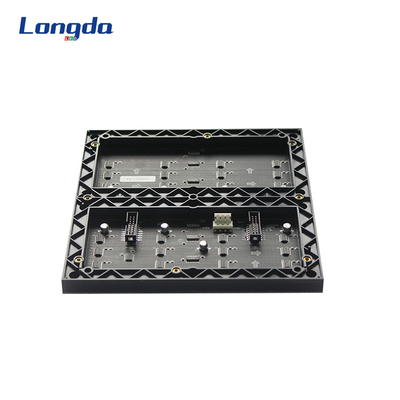

| Maintenance Method |
Rear Maintenance |
| Cabinet Size |
960x960mm Or Customization |
| Cabinet Material |
Die-casting Aluminum Or Standard Outdoor Waterproof Iron Cabinet |
| Cabinet Net Weight |
49kg/m² |
| Thickness |
137mm |
| Scan |
13s |
| Brightness |
4000-7000nits |
| Resolution |
104x52 |
| Refresh Rate |
≥3840HZ |
| IP protection |
IP65 |
| Operate Temp & Humidity |
-30～75℃; 10%～95% No condensation |
| Max Power (watts/m²) |
800watts/m² |
| Avg Power (watts/m²) |
240watts/m² |
| Control mode |
Synchronous control or Asynchronous control |
| Operation Temperature |
- 20 ℃ ～ + 45 ℃ |
| Operation Humidity |
10 % ～ 95 % |
| Life Span |
100000h |
Quality and Sservice
1 . Strict quality control :
The quality of our display is excellent.
We use the materials of high-quality suppliers in the world, strictly control the production process,
and pass the multiple quality inspections to ensure that every product is qualified.
2 . Quality guarantee :
All our LED display screens are more than 100,000 hours of life span.
3 . Long warranty :
2-3 years warranty, any quality problem during warranty time will be handled.
4 . Prompt & Professional service :
Any inquiries will be replied to within 24/7 hours and you'll get helpful suggestions from us.
FAQ :
1 . What kind of payment terms do you receive ?
We receive T / T by bank transfer , Western Union . L / C is also welcome .
Usually 30 % paid before massproduction , 70 % balance paid before shippment .
2 . MOQ ?
Our MOQ is 1 Sqm .
We also support sample order such as 1 cabinet or several modules as trial before the mass order .
3 . Delivery time ?
Usually 7 ~ 10 days for led modules , 15 ~ 18 days for led screen with cabinet .
4 . Can i print my LOGO on the product ?
Sure , and we will not take any extra charge .
