Product Details:
|
| Model: | Curved Outdoor P10 Full Color Led Display | Cabinet Size: | 960x960mm |
|---|---|---|---|
| Refresh Rate: | ≥3840HZ | Brightness: | 4000-7000nits |
| Resolution: | 32x16 | Scan: | 2s |
| Cabinet Material: | Iron Cabinet Or Diecasting Aluminum Cabinet | Warranty: | 3 Years |
| Highlight: | FCC IP65 curved led wall,flexible outdoor led display 1000W/ Sqm,RGB P10 flexible led video wall |
||
Curved Led Wall High Brightness RGB 3 In 1 Colorful P10 Led Display Screen Waterproof IP65
Introduction
The P10 Large-Size Curved LED Display is designed for large-scale advertising, stadiums, outdoor events, and commercial projects.
With a 10mm pixel pitch, it delivers bright, eye-catching visuals that are easy to see from a distance.
Its flexible curved design allows you to create large curved screens, circular displays, and customized LED structures. It is an ideal solution for projects that need a powerful visual impact and wide audience coverage.
![]()
Specifications:
| Pixel Pitch(mm) | P10 |
| LED Lamp | SM3535 |
| Module Size | 320mmx160mm |
| Module Net Weight | 0.45kg/pcs |
| Maintenance Method | Rear Maintenance |
| Cabinet Size | 960x960mm Or Customization |
| Cabinet Material | Die-casting Aluminum Or Standard Outdoor Waterproof Iron Cabinet |
| Cabinet Net Weight | 49kg/m² |
| Thickness | 137mm |
| Scan | 2s |
| Brightness | 4000-7000nits |
| Resolution | 32x16 |
| Refresh Rate | ≥3840HZ |
| IP protection | IP65 |
| Operate Temp & Humidity | -30~75℃; 10%~95% No condensation |
| Max Power (watts/m²) | 800watts/m² |
| Avg Power (watts/m²) | 240watts/m² |
| Control mode | Synchronous control or Asynchronous control |
| Operation Temperature | - 20 ℃ ~ + 45 ℃ |
| Operation Humidity | 10 % ~ 95 % |
| Life Span | 100000h |
![]()
Why Choose Our P10 Curved LED Display?
![]()
Wide Range of Applications

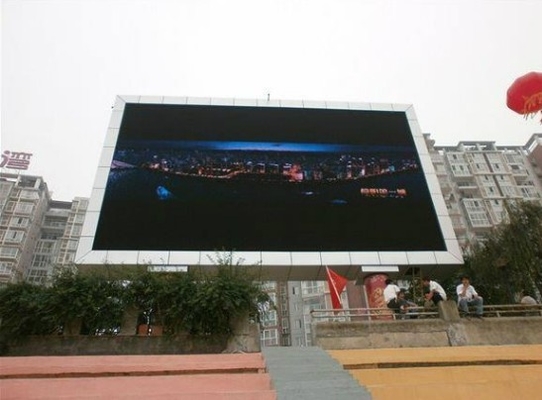

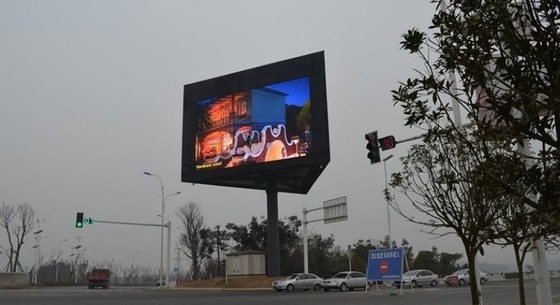

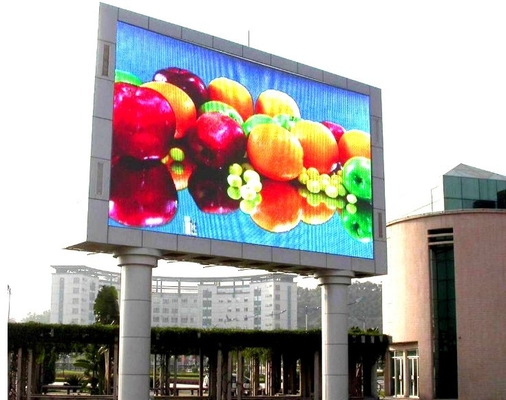

Outdoor Advertising Billboards
Create large curved advertising screens for commercial buildings, shopping centers, and roadside advertising locations.
Stadiums & Sports Venues
Display advertisements, match information, sponsor logos, and promotional videos for spectators.
Concerts & Outdoor Events
Build large curved LED backgrounds for performances, festivals, and public events.
Public Spaces
Create eye-catching visual installations for exhibitions, events, and public information displays.
![]()
FAQ :
1 . MOQ ?
Our MOQ is 1 Sqm .
We also support sample order such as 1 cabinet or several modules as trial before the mass order .
2 . Delivery time ?
Usually 7 ~ 10 days for led modules , 15 ~ 18 days for led screen with cabinet .
3 . What is your terms delivery?
EXW , FOB , CFR , CIF , DDP , DDU , etc .
