16:9 Ratio Small Pitch Led Screen Pixel Display DC15V 2160P 1080P 720P ODM

Certification
China Shenzhen Longdaled Co.,Ltd certification
China Shenzhen Longdaled Co.,Ltd certification
I'm Online Chat Now

16:9 Ratio Small Pitch Led Screen Pixel Display DC15V 2160P 1080P 720P ODM

16:9 Ratio Small Pitch Led Screen Pixel Display DC15V 2160P 1080P 720P ODM
16:9 Ratio Small Pitch Led Screen Pixel Display DC15V 2160P 1080P 720P ODM 16:9 Ratio Small Pitch Led Screen Pixel Display DC15V 2160P 1080P 720P ODM 16:9 Ratio Small Pitch Led Screen Pixel Display DC15V 2160P 1080P 720P ODM 16:9 Ratio Small Pitch Led Screen Pixel Display DC15V 2160P 1080P 720P ODM

Large Image :  16:9 Ratio Small Pitch Led Screen Pixel Display DC15V 2160P 1080P 720P ODM

Product Details:
Place of Origin: SHENZHEN
Brand Name: LONGDA LED
Certification: CE / RoHs / FCC / CCC / ISO9001 / ISO14001
Model Number: P1.875
Payment & Shipping Terms:
Minimum Order Quantity: 1 Sqm
Price: Usd999 ~ Usd3099 / Sqm ( price is negotiable )
Packaging Details: Flight case packing or Plywood case packing
Delivery Time: 15 - 18 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000sqm per month

16:9 Ratio Small Pitch Led Screen Pixel Display DC15V 2160P 1080P 720P ODM

Description
Pixel Pitch: 1.85mm Usage: Indoor
Screen Dimension: 600mm * 337.5mm Tube Chip Color: Full Color
Module Size: 300 X 168.75mm Led Chip: 1515
Highlight:

16:9 small pitch led screen

,

led pixel screen 2160P ODM

,

led pixel display DC15V

Small Pixle Led Display 16:9 Perfect Ratio HD Model P0.9 P1.25 P1.56 P1.875





Product Introduction



1 . Fine Pitch LED Display delivering true-to-life images and videos with high precision pixel pitches,

bringing a great viewing experience to the audience at a close viewing distance.

By providing extraordinary image quality with precise colors,

Fine Pitch LED Display creates remarkable visual experiences that keep constant over time.



2 . 16:9 Golden division ratio

It can be point to point spliced to the led screen of standard 720P ,1080P ,2160P , 3840P ,etc





Specification



OPTICAL

Pixel Pitch

mm

1.875mm

LED No. Per Pixel

pcs/pixel

1

Brightness(Adjustment)

cd/m²

600~800

LED Encapsulation

-

SMD 1515

Module Resolution(W*H)

pixels



Cabinet Resolution(W*H)

dots

256*256

Pixel Density

dots/sqm

284,444

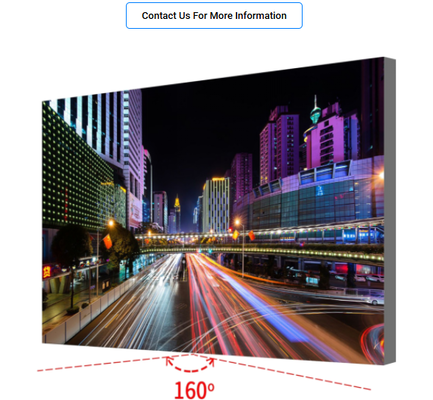

Viewing Angle(H/V)

degree

H160/V160

Color Depth/Number

bit

16,384

Grey Scale

-

14bit

ELECTRICAL

Frame Frequency

Hz/s

50/60

Refresh Rate

Hz

2880

Contrast Ratio

-

5000:1

Max Power Consumption

W/m²

660

Ave Power Consumption

W/m²

230

Working Voltage

AC

AC110V~ 220V

Drive Voltage

DC

15V

Color Temperature

-



Working Temperature

ºC

-0ºC-40ºC

Humidity

-

10%-85%RH

Driving Method

-

1/32scan

MECHANICAL

Frame Material

-

Die-casting aluminum

Module Size

mm



Net Weight

kg/pcs

6

Weight Per Tile

lbs

13.24

Cabinet Size

mm

480*480*67

IP Rating

-

IP30

Lifetime

hours

100,000

Service Access

-

front/rear

Application

-

Indoor



16:9 Ratio Small Pitch Led Screen Pixel Display DC15V 2160P 1080P 720P ODM 0

16:9 Ratio Small Pitch Led Screen Pixel Display DC15V 2160P 1080P 720P ODM 1





Service for customers


1.We provide pre-sale service in technical consultation, for example, recommending and designing solutions

as pre the customers request, which help lower the risk of customers investing.

2.In the process of production, gloshine follows up the tightly and accept the supervision from the clients.

Necessary trainings are also provided to the customers.

3.For the after-sale service, Longdaled takes the great responsibility to collect customers feedback,

inspection and maintains products periodically to ensure solving problems timely.
