Product Details:
|
| Model: | Led Window Transparent Grille Screen P3 . 9 - 7 . 8 | Cabinet Size: | 1000mm*500mm*75mm |
|---|---|---|---|
| Refresh Rate: | ≥3840Hz | Brightness: | ≥4500cd |
| Resolution: | 256*128 | Warranty: | 3 Years |
| Highlight: | Led Window Display Screens antiwear,3.9 mm led screen 60Hz,window led screen 16 scan |
||
Led Window Displays Colorful High Refresh Electronic Hanging P3.91 - 7.8 Led Display Transparent Grille Screen
Advantages :
1 . No steel frame structure , saving a lot of installation and maintenance costs ;
2 . Directly fixed on the glass curtain wall , without any steel structure , save a lot of cost ;
3 . The unique display effect because the display background is transparent , can make the advertising picture
give people the feeling of suspension on the glass curtain wall , with good advertising effect and artistic effect ;
4 . Easy and fast maintenance of indoor maintenance , both fast and safe , save manpower and material resources .
![]()
Specifications :
| Pixel Pitch | P3.91-7.82 |
| Resolution(dot/m²) | 32768 |
| Pixel Density | 256*128 |
| Standard Cabinet size(mm) | 1000*1000 |
| Cabnet Size Remarks(mm) | 1000mm*500mm*75mm |
| Lamp Bead | SMD1921 |
| Refresh Rate | ≥3840Hz |
| Brightness | ≥4500cd |
| Transparency | 65% |
| Thickness | 75mm |
| Weight/module | 8kg |
| Grayscale | ≥14 bit |
| Contrast Ratio | 4000:1 |
| Max Pc(W/m²) | 600 |
| Ave Pc(W/m²) | 200 |
| Viewing angle V&H | 160°/140° |
| IP | IP65 |
| Frames Per Second | 60Frame/S |
| Color temperature (K) | 2000K-9500K (adjustable) |
| lnput operating voltage | AC 240V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) |
| Ave trouble-free working time (H) | ≥10000 |
| LED Life time (H) | 100000 |
| Operating temperature(℃) | -30~75℃ |
| Operating humidity (RH) | 10%~90% No condensation |
| Installation Mode | 1. Hanging at the rear of glass. 2. Base.3.Fixed on wall. |
![]()
![]()
![]()
Applications :

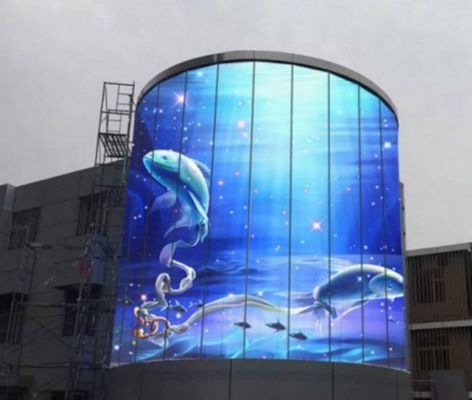

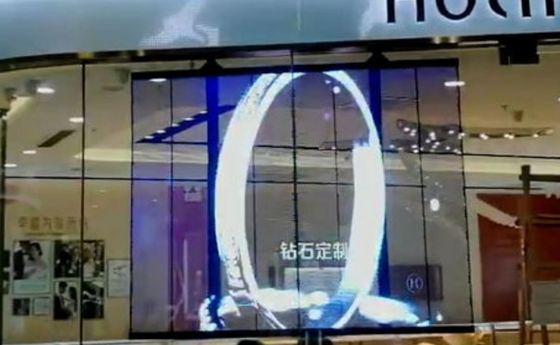

P3 . 91 - 7 . 8 glass curtain wall gain a good space visual effect indoor , such as in chain store ,
exhibition center , airport , metro station , automobile 4S shop , shopping mall , jewelry store , bank etc .
![]()
FAQ :
1 . What is the warranty and after - sales ?
3 years warranty with lifetime free maintenance .
During 3 years , we will maintain or replace the defect components for free ;
After 3 years warranty , we provide free maintenance but only charge for spare part at the cost price .
We will never exempt our responsibilities on product owned defects .
2 . We don ' t know how to install and operate the led screen , can you help ?
We provide technique training for free , which contains the operation , installation and
maintenance training of the LED screens in the factory .
All operation manual , software , test reports are available .
Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided .
