Curved P3 Indoor Led Flexible Module 9500K

China Shenzhen Longdaled Co.,Ltd certification
China Shenzhen Longdaled Co.,Ltd certification
I'm Online Chat Now

Curved P3 Indoor Led Flexible Module 9500K

Curved P3 Indoor Led Flexible Module 9500K
Curved P3 Indoor Led Flexible Module 9500K Curved P3 Indoor Led Flexible Module 9500K Curved P3 Indoor Led Flexible Module 9500K Curved P3 Indoor Led Flexible Module 9500K

Large Image :  Curved P3 Indoor Led Flexible Module 9500K

Product Details:
Place of Origin: ShenZhen
Brand Name: Longda LED
Certification: CE / RoHs / FCC / CCC / ISO9001 / ISO14001
Model Number: Soft P3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Sqm
Price: Usd799 ~ Usd1399 / Sqm
Packaging Details: Flight case packing or Plywood case packing
Delivery Time: 15 - 18 days
Payment Terms: L / C , T / T , Western Union , MoneyGram
Supply Ability: 5000sqm per month

Curved P3 Indoor Led Flexible Module 9500K

Model: 3mm Module Resolution: 64 X 64 Dots
Module Size: 192 X 192mm Scan: 16S
Life Span: 100000h Led Lamp: KINGLIGHT 2020
High Light:

Led Flexible Module 9500K


Curved p3 indoor led module


p3 led module 9500K

LED Flexible Module Curve Display P3 Indoor Soft Flexible LED Module


Product Introduction

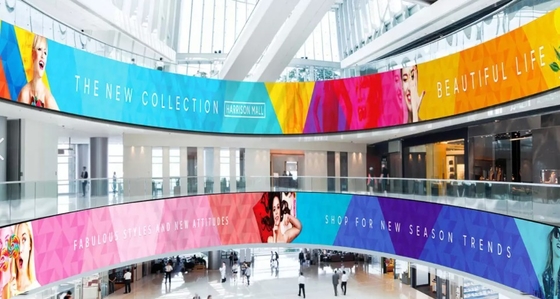

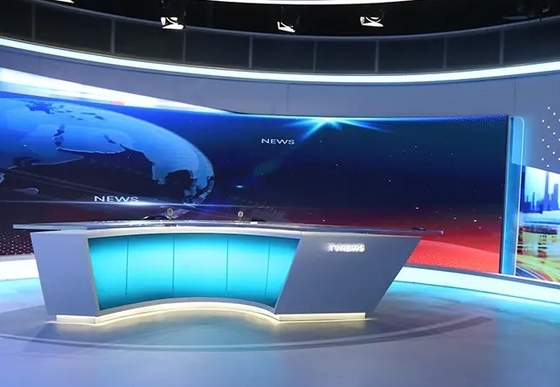

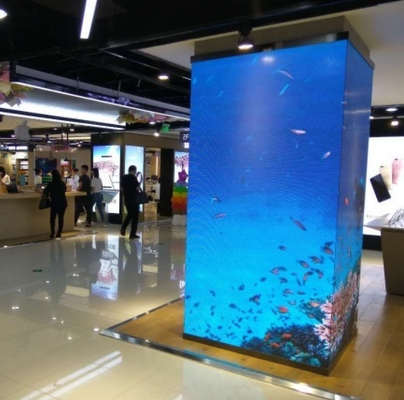

Product applications:

Business Organizations

supermarket, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc.

Financial Organizations

banks, security company, insurance company, post office, hospital, school, etc.

Public Places

subway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc.


movie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc.




Product specification:

Technical parameters   P3 Indoor Full Color

Pixel pitch MM 3
Panel size MM 192mm*192mm
Physical density Dots/m² 111,111 Dots/m²
Pixel configuration R/G/B 1,1,1
Driving method   Constant current 1/16 Scan
LED Encapsulation SMD 2020
Display resolution DOTS 64 X 64 = 4096dots
Module port   HUB75A


Best viewing distance M 3 - 45
Best viewing angle Deg. H:120 Degrees, V:120 degrees
Maximum power consumption W/m² 1350W/m²
Frame Frequency HZ/S ≥60
Refresh frequency HZ/S ≥400
Equilibrium brightness CD/m² ≥1800
Working environment temperature 0C -40~50
Working environment humidity RH 10%~90%
Display working voltage VAC AC46~54HZ,220V±15%/110V±15%
Colour temperature   6500K-9500K
Gray scale/color   ≥16.7M color
Input signal   RF S-Video RGB etc
Control system   PCTV nonlinearity card+DVI display card+Linsn control system
Mean free error time HOURS >10,000
Life HOURS >100,000
Lamp failure frequency   <0.0001
IP rating   The back IP40,The front IP50
Steel box size MM L768Xh768x100


Curved P3 Indoor Led Flexible Module 9500K 0

Our service:

1 . Your inquiry related to our products or price will be replied within 24hrs
2 . OEM & ODM , any your customized lightings we can help you design and put into production
3 . Distributorship are offered for your unique design and some our current models
4 . Protection of your sales area , ideas of design and all your private information
5 . Top quality + Reasonable price + Responsible After Service = Successful & Win
6 . Longda led can offer you LED stage display , LED outdoor video wall , wedding LED display ,

stage LED electronic screen and led large screen full color display .

Trade terms:

1 . Package : Anti - shaking wooden package , Air flight case or Carton package
2 . Payment : T / T , 30 % deposits before production , 70 % balance to be paid before delivery
3 . Shipping freight are quoted under your requests
4 .
Warranty time : 2 - 3 years
5 . Delivery time : 8 - 15 working days
