Product Details:
|
| Input Voltage(v): | AC 90V- 260V | Scan Mode: | 1/32S |
|---|---|---|---|
| Panel Dimension: | 320 X 160mm | MTBF: | 1000h |
| Led Lamp: | KINGLIGHT 1515 | Light Source: | LED |
| High Light: | Led Stage Backdrop Screen 1R1G1B,P1.86mm Led Stage Backdrop Screen,stage backdrop screen 1.86mm |
||

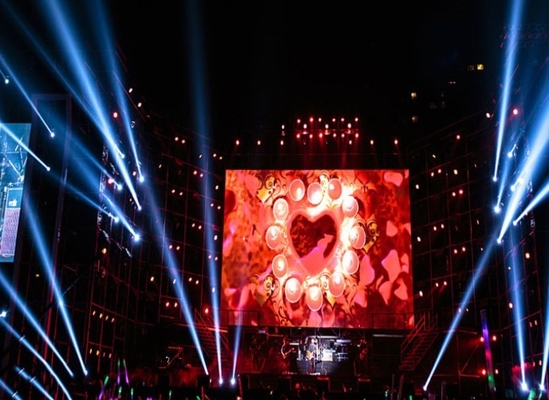

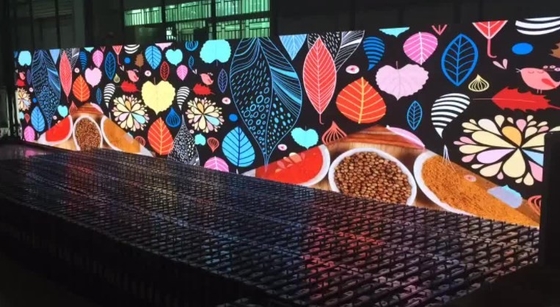

Led Stage Backdrop Screen Ultra HD P1.86 Small Pixel Pitch LED Display
Product Introduction
|
Business Organizations |
super market, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc. |
|
Financial Organizations |
banks, security company, insurance company, post office, hospital, school, etc. |
|
Public Places |
subway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc. |
|
Entertainments |
movie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc. |
Product Specification
|
Indoor P1.86 LED Screen |
||||||
|
Part I Technicial Parameters |
||||||
|
Led Module Specification |
||||||
|
NO. |
Item |
Specification |
||||
|
1 |
Pixel Pitch |
1.86mm |
||||
|
2 |
Module Resolution |
W172×H86dots |
||||
|
3 |
Module Size |
320*160mm |
||||
|
4 |
Led Packing |
1515 |
||||
|
5 |
IP Rate |
43 |
||||
|
6 |
IC |
6363 |
2065 |
|||
|
7 |
LED composition |
1R1G1B |
||||
|

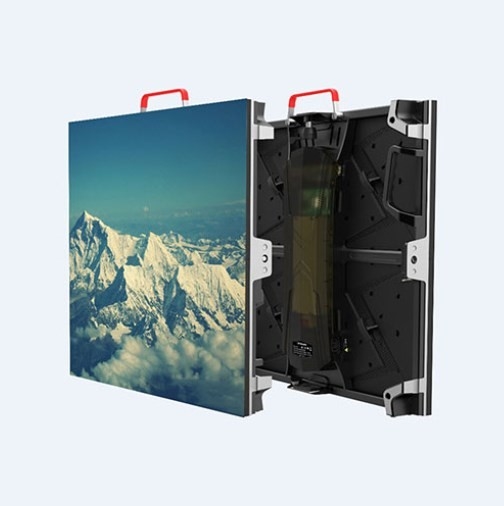

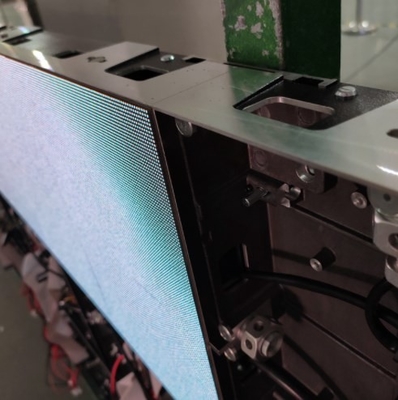

Cabinet Specification |
||||||
|
1 |
Cabinet Size |
640*480mm |
||||
|
2 |
Module Qty |
W2X H3 =6PCS |
||||
|
3 |
Physical Resolution |
W344×H258dots |
||||
|
4 |
Power Consumption(MAX.) |
200 W/m2 |
||||
|
5 |
Power Consumption(AVE.) |
120W/m2 |
140W/m2 |
|||
|
6 |
Cabinet Material |
Die-casting Aluminum |
||||
|
7 |
Physical Density |
288906 dots/m2 |
||||
|
8 |
Net Weight |
7.5Kg |
8Kg |
|||
|
Screen Specification |
||||||
|
1 |
Brightness |
≥600cd/m2 |
≥670cd/m2 |
|||
|
2 |
Colors |
16.7 trillion |
||||
|
3 |
Brightness Control |
Software 256 level adjustable |
||||
|
4 |
Gray Level |
14 |
||||
|
5 |
View Distance |
1.9-15m |
||||
|
6 |
Refresh Rate |
≥1920~3840Hz |
≥3840Hz |
|||
|
7 |
Drive Mode |
1/43s |
1/57s |
|||
|
8 |
Life Span |
100,000h |
||||
|
9 |
MTBF |
1000h |
||||
|
10 |
Control mode |
Synchronous control or Asynchronous control |
||||
|
11 |
Frame Frequency |
≥60Hz |
||||
|
12 |
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
||||
|
13 |
Operation Temperature |
-20℃ ～ +45℃ |
||||
|
14 |
Operation Humidity |
10%～95% |
||||
Our service:
1 . Your inquiry related to our products or price will be replied within 24hrs ;
2 . OEM & ODM , any your customized screens we can help you design and put into production ;
3 . Distributorship are offered for your unique design and some our current models ;
4 . Protection of your sales area , ideas of design and all your private information ;
5 . Top quality + Reasonable price + Responsible After Service = Successful & Win ;
6 . Longda can offer you indoor & outdoor LED display , rental & fixed LED video wall ,
flexible LED display , transparent screen and led large screen full color display.
Trade terms:
1 . Package : Anti - shaking wooden package , Air flight case or Carton package ;
2 . Payment : T/T , 30% deposits before production , 70% balance to be paid before delivery ;
3 . Shipping freight are quoted under your requests ;
4 . Shipping port : Shenzhen , China ;
5 . Warranty time : 2 - 3 years ;
6 . Delivery time : usually 15 - 18 working days .
