Product Details:
|
| Model Pitch: | P2.6 / P2.976 / P3.91 | Ip Rating: | IP43 / IP65 |
|---|---|---|---|
| Cabinet Size: | 500 X 500mm / 500 * 1000mm | Led Lamp: | KINGLIGHT 2121 |
| Life Span: | 10000h | Light Source: | LED |
| Highlight: | P2.976 stage decorations background screen,256 RGB led stage background,IP43 led panel stage background |
||
Led Stage Backdrop Screen LED Display Screen P2.6 / P2.976 / P3.91 Rental Screen LED Panel For Advertising
Functions and Advantages :
LED Stage Backdrop Screen Led Display has high refresh rate with NOVA STAR control system ,
no scanning line when photographed ;
high gray level , 256 RGB and 16.7M colors , vivid and perfect video effect ;
with high resolution the most apparent features of the new generation of LED display ;
good color uniformity with brand Lamp Nationstar and high refresh MBI5124 IC .
Specifications :
|
Physical Pitch |
2.6mm |
2.97mm |
3.91mm |
|
Pixel Configuration |
SMD2121 |
SMD2121 |
SMD2121 |
|
Pixel Density |
147,456 pixels/sqm |
112,896 pixels/sqm |
65,536 pixels/sqm |
|
Module Dimension (W*H)(mm) |
250*250 |
250*250 |
250*250 |
|

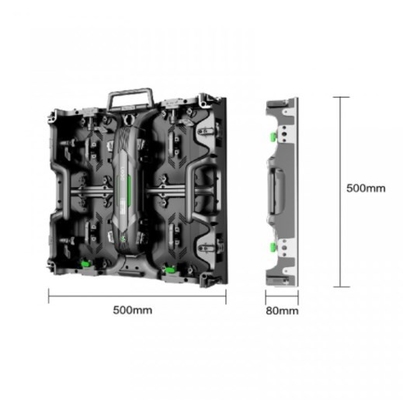

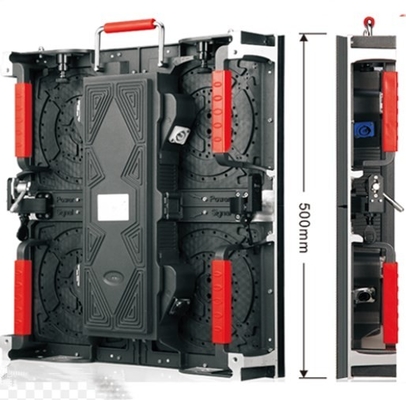

Panel Dimension(mm) |
500*500*80/500*1000*75 |
500*500*80/500*1000*75 |
500*500*80/500*1000*75 |
|
Physical Resolution of Panel(W*H) |
192*192/192*384 |
168*168/168*336 |
128*128/128*256 |
|
Panel Material |
Die-Casting Aluminum |
Die-Casting Aluminum |
Die-Casting Aluminum |
|
Single Cabinet Weight |
8/14 kg/panel |
8/14 kg/panel |
8/14 kg/panel |
|
Processing |
16 bit |
16 bit |
16 bit |
|
Contrast Ratio |
4,000:1 |
4,000:1 |
4,000:1 |
|
Average Power Consumption |
64/128 W/panel |
64/128 W/panel |
64/128 W/panel |
|
Max Power Consumption |
192/384 W/panel |
192/384 W/panel |
192/384 W/panel |
|
Refresh Rate |
>1,920 Hz |
>1,920 Hz |
>1,920 Hz |
|
Brightness |
>1,200 nits |
>1,200 nits |
>1,200 nits |
|
Horizontal Viewing Angle |
160° |
160° |
160° |
|
Vertical Viewing Angle |
140° |
140° |
140° |
|
Servicing |
Front/Rear |
Front/Rear |
Front/Rear |
|
IP Rating (Front/Rear) |
IP40/IP21 |
IP40/IP21 |
IP40/IP21 |
FAQ :
|
Question 1 : How can I trust your LONGDA LED factory ? |
|
Answer : Yes , when you talk with us now , we are here . We do led since 2009 , it is over 12 years . |
|
Quesiton 2 : If I need led very urgently , how fast can you finish the goods ? |
|
Answer : How fast you want ? Three days ? One week ? Definite shipping date ? |
|
Question 3 : Is it easy to install this led display ? |
|
Answer : If you are new to LED , we will help you to know led from ZERO to Professional . |
