Product Details:
|
Lamp Packing: | SMD1921 | Cabinet Size: | 1000 * 1000mm |
---|---|---|---|
Physical Density: | 9245 Dots / M² | Application: | Stage / Hotel / Conference / Party / Shopping Mall |
Power Supply: | Meanwell | Scan Mode: | 1/2s |
High Light: | Transparent Glass Led Screen ODM,commercial advertising led display 1/ 2scan,advertising screen outdoor SMD1921 |

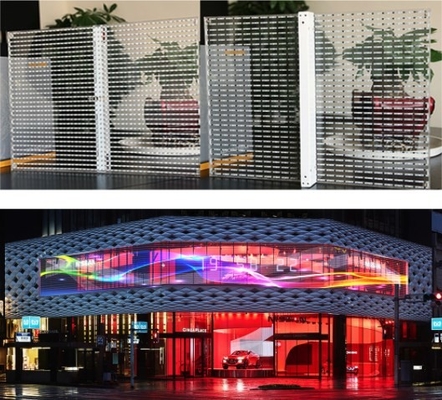

Transparent Glass Led Screen Commerical Advertising P10.4mm Outdoor Transparent Glass LED Display Screen
Advantages :
1 . No steel frame structure , saving a lot of installation and maintenance costs ;
2 . Directly fixed on the glass curtain wall , without any steel structure , save a lot of cost ;
3 . The unique display effect because the display background is transparent , can make the advertising picture
give people the feeling of suspension on the glass curtain wall , with good advertising effect and artistic effect ;
4 . Easy and fast maintenance of indoor maintenance , both fast and safe , save manpower and material resources .
Technical parameters :
P10.4 Full Color LED Transparent Screen |
||||
Item |
Specification |
|||
Pixel Pitch |
10.4-10.4mm |
|||
Module Resolution |
W48×H12dots |
|||
Module Size |
500*125mm |
|||
Led Packing |
1921 |
1921 |
||
IP Rate |
43 |
|||
IC |
2038 |
|||
LED composition |
1R1G1B |
|||
Cabinet Specification |
||||
Cabinet Size |
1000*1000mm |
|||
Module Qty |
W2X H 4 =8PCS |
W2X H 4 =8PCS |
||
Physical Resolution |
W96*H96dots |
|||
Power Consumption(MAX.) |
600W/m2 |
800 W/m2 |
||
Power Consumption(AVE.) |
200W/m2 |
220 W/m2 |
||
Cabinet Material |
Sectional material |
|||
Physical Density |
9245 dots/m2 |
|||
Net Weight |
10Kg |
|||
Screen Specification |
||||
Brightness |
3500cd/m2 |
5000cd/m2 |
||
Colors |
281 trillion |
|||
Brightness Control |
Software 256 level adjustable |
|||
Gray Level |
14 |
|||
View Distance |
5~12m |
|||
Refresh Rate |
≥3840Hz |
|||
Drive Mode |
1/2s |
|||
Life Span |
100,000h |
|||
MTBF |
1000h |
|||
Control mode |
Synchronous control or Asynchronous control |
|||
Frame Frequency |
≥60Hz |
|||
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
|||
Operation Temperature |
-20℃ ~ +45℃ |
|||
Operation Humidity |
10%~95% |
FAQ :
1 . What is the warranty of your led display ?
A . We offer 2 - 3 years warranty , and more than 100000 hours screen life span .
2 . What is your payment term ? How long it takes to delivery ?
A . We usually accapt the T/T or L/C , both of them will at least 30% deposit in advance , and the rest of 70% will
paid before delivery . The lead time is usually 20 day .
3 . How can you ensure the led display product quality ?
A . Before shippment , all the screens have aging test , and then we also have waterproof test and shake test ,
ensure products can transportation safety and normal use .
4 . What is your pre-sale and post-sale service ?
A . For pre-sale service , we have professional sales team and technical team , who are willing to answer your
question within 24 hours .
For post-sale service , we will instruct you how toinstallation , how to use , how to change the broken moudles ,
and we can also send the technicals to your country , in general , our led display will not have a big problem ,
you can rest assured to buy .
Services:
1 . Your inquiry related to our products or price will be replied in 12hrs ;
2 . OEM & ODM , any your customized lightings we can help you to design and put into product ;
3 . Distributoership are offered for your unique design and some our current models ;
4 . Protection of your sales area , ideas of design and all your private information ;
5 . Best cost performance and perfect service before and after sales .
Company other products :
Indoor fixed LED screen : P2.5 , P3 , P4 , P5 , P6 , P8 , P10
Indoor rental LED screen : P3 , P3.9 , P4 , P4.8 , P5 , P6
Outdoor fixed LED screen : P5 , P6 , P8 , P10
Outdoor rental LED screen : P3.9 , P4.8 , P5 , P6 , P6.25 , P8 , P10
Small pitch LED screen : P1.6 , P1.9
Front service maintenance LED screen : P6.67 , P8 , P10
Stadium perimeter LED screen : P8 , P10
LED poster player : P2.5 , P3 , P4 , P5 , P6 , P8 , P10
