20 x 15cm Small Pixel Led Display Full Color P1.538

Certification
China Shenzhen Longdaled Co.,Ltd certification
China Shenzhen Longdaled Co.,Ltd certification
I'm Online Chat Now

20 x 15cm Small Pixel Led Display Full Color P1.538

20 x 15cm Small Pixel Led Display Full Color P1.538
20 x 15cm Small Pixel Led Display Full Color P1.538 20 x 15cm Small Pixel Led Display Full Color P1.538 20 x 15cm Small Pixel Led Display Full Color P1.538 20 x 15cm Small Pixel Led Display Full Color P1.538

Large Image :  20 x 15cm Small Pixel Led Display Full Color P1.538

Product Details:
Place of Origin: SHENZHEN
Brand Name: LONGDA LED
Certification: CE / RoHs / FCC / CCC / ISO9001 / ISO14001
Model Number: P1.25 P1.538 P1.667 P1.83 P1.86
Payment & Shipping Terms:
Minimum Order Quantity: 1 Sqm
Price: Usd999 ~ Usd3099 / Sqm ( price is negotiable )
Packaging Details: Flight case packing or Plywood case packing
Delivery Time: 15 - 18 days
Payment Terms: L/C , T/T , Western Union , MoneyGram
Supply Ability: 1000sqm per month

20 x 15cm Small Pixel Led Display Full Color P1.538

Description
Video Dimension: 640 * 480mm / 400 * 300mm Lamp Packing: 1010 / 1212 / 1515
Model Pixel: 1.25mm 1.53mm 1.667mm 1.83mm 1.86mm Usage: Indoor
Tube Chip Color: Full Color Module Size: 320 * 160mm / 200 * 150mm
Highlight:

20x15cm Small Pixel Led Display

,

P1.538 Small Pixel Led Display

,

led display full color 200x150mm

Small Pixle Led Display 200 X 150mm Or 320 X 160mm P1.25 P1.538 P1.667 P1.83 P1.86





Introductions



Fine Pitch LED Display delivering true-to-life images and videos with high precision pixel pitches ,

bringing a great viewing experience to the audience at a close viewing distance ,

by providing extraordinary image quality with precise colors ,

fine Pitch LED Display creates remarkable visual experiences that keep constant over time .





Specifications



Indoor P1.86 LED Screen
Part I Technicial Parameters

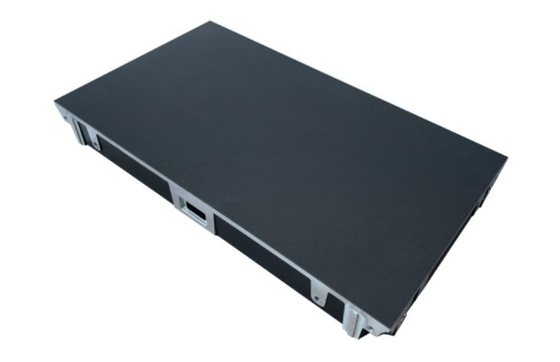

Led Module Specification
NO. Item Specification
1 Pixel Pitch 1.86mm
2 Module Resolution W172×H86dots
3 Module Size 320*160mm
4 Led Packing 1515
5 IP Rate 43
6 IC 6363 2065
7 LED composition 1R1G1B
Cabinet Specification

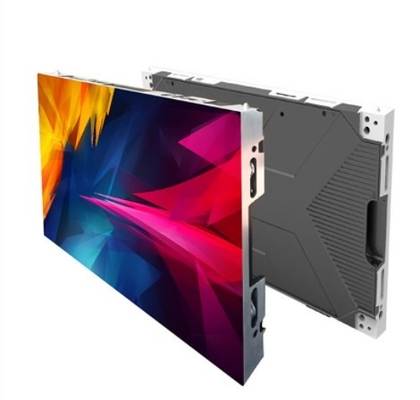

1 Cabinet Size 640*480mm
2 Module Qty W2X H3 =6PCS
3 Physical Resolution W344×H258dots
4 Power Consumption(MAX.) 200 W/m2
5 Power Consumption(AVE.) 120W/m2 140W/m2
6 Cabinet Material Die-casting Aluminum
7 Physical Density 288906 dots/m2
8 Net Weight 7.5Kg 8Kg
Screen Specification
1 Brightness ≥600cd/m2 ≥670cd/m2
2 Colors 16.7 trillion
3 Brightness Control Software 256 level adjustable
4 Gray Level 14
5 View Distance 1.9-15m
6 Refresh Rate ≥1920~3840Hz ≥3840Hz
7 Drive Mode 1/43s 1/57s
8 Life Span 100,000h
9 MTBF 1000h
10 Control mode Synchronous control or Asynchronous control
11 Frame Frequency ≥60Hz
12 Certification CE/ROHS/FCC/CCC/ISO9001/ISO14001
13 Operation Temperature -20℃ ~ +45℃
14 Operation Humidity 10%~95%




20 x 15cm Small Pixel Led Display Full Color P1.538 0





Led Display Service for customers

1 . We provide pre-sale service in technical consultation , for example , recommending and designing

solutions as pre the customers request , which help lower the risk of customer's investing ;

2 . In the process of production , gloshine follows up the tightly and accept the supervision from the clients .

Necessary trainings are also provided to the customers .

3 . For the after-sale service , Longdaled takes the great responsibility to collect customer's feedback ,

inspection and maintains products periodically to ensure solving problems timely .
