40 X 30cm Led Pitch High Resolution Led Screens Video Wall P1.667 P1.56

Certification
China Shenzhen Longdaled Co.,Ltd certification
China Shenzhen Longdaled Co.,Ltd certification
I'm Online Chat Now

40 X 30cm Led Pitch High Resolution Led Screens Video Wall P1.667 P1.56

40 X 30cm Led Pitch High Resolution Led Screens Video Wall P1.667 P1.56
40 X 30cm Led Pitch High Resolution Led Screens Video Wall P1.667 P1.56 40 X 30cm Led Pitch High Resolution Led Screens Video Wall P1.667 P1.56 40 X 30cm Led Pitch High Resolution Led Screens Video Wall P1.667 P1.56 40 X 30cm Led Pitch High Resolution Led Screens Video Wall P1.667 P1.56

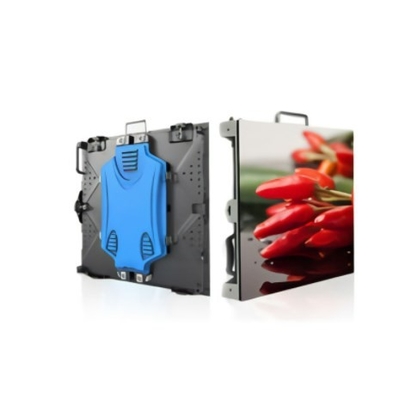

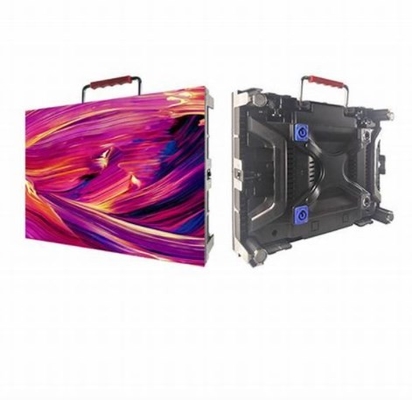

Large Image :  40 X 30cm Led Pitch High Resolution Led Screens Video Wall P1.667 P1.56

Product Details:
Place of Origin: SHENZHEN
Brand Name: LONGDA LED
Certification: CE / RoHs / FCC / CCC / ISO9001 / ISO14001
Model Number: P1.25 P1.56 P1.667
Payment & Shipping Terms:
Minimum Order Quantity: 1 Sqm
Price: Usd999 ~ Usd3099 / Sqm ( price is negotiable )
Packaging Details: Flight case packing or Plywood case packing
Delivery Time: 15 - 18 days
Payment Terms: L/C , T/T , Western Union , MoneyGram
Supply Ability: 1000sqm per month

40 X 30cm Led Pitch High Resolution Led Screens Video Wall P1.667 P1.56

Description
PH Size: 1.25mm 1.56mm 1.667mm Cabinet Dimension: 400mm * 300mm
Led Chip: 1010 1212 1515 Display Function: Video , Animation , Graphics
Brightness: 300-600nits MBTF: 1000h
High Light:

led pitch P1.56

,

high resolution led screens P1.667

,

high resolution led video wall 40x30cm

Led Display Small Pixle High Resolution P1.25 P1.56 P1.667 400 X 300mm With 3 Years Warranty





Advantages



1 . Ultra high definition
It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED screen ;



2 . High strength Aluminum alloy material
The integral die-casting aluminum molding workmanship has provided with excellent flatness of the cabinet ;

3 . Front serviceable led screen for better experience
The front serviceable ultra HD led screen cabinet has fully described the strength of its light weight,met the needs of

small space or where the needs of the cabinet thickness is needed , enhanced the vision of the space as well as its

visionary effect , it allows for easy maintenance , saving time and labor site .





Specifications



OPTICAL

Pixel Pitch

mm

1.25mm

LED No. Per Pixel

pcs/pixel

1

Brightness(Adjustment)

cd/m²

600

Pixel Configuration

-

SMD1010

Module Resolution(W*H)

pixels

160*135

Cabinet Resolution(W*H)

dots

480*270

Pixel Density

dots/sqm

640,000

Viewing Angle(H/V)

degree

H160/V160

Color Depth/Number

bit

16bit

Grey Scale

-

65,536

ELECTRICAL

Frame Frequency

Hz/s

50/60

Refresh Rate

Hz

≥3,840

Contrast Ratio

-

5000:1

Max Power Consumption

W/m²

800

Ave Power Consumption

W/m²

250

Working Voltage

AC

AC90~264V

Drive Voltage

DC

5V

Working/Storage Temperature

ºC

-20ºC - 60ºC

Humidity

-

10%-85%RH

Driving Method

-

1/27scan

MECHANICAL

Frame Material

-

Die-casting aluminum

Module Size

mm

300 * 168.75

Net Weight

kg/pcs

6kg

Weight Per Tile

lbs

17.21

Cabinet Size

mm

600*337.5*55

IP Rating

-

IP30

Lifetime

hours

100,000

Service Access

-

front

Application

-

Indoor

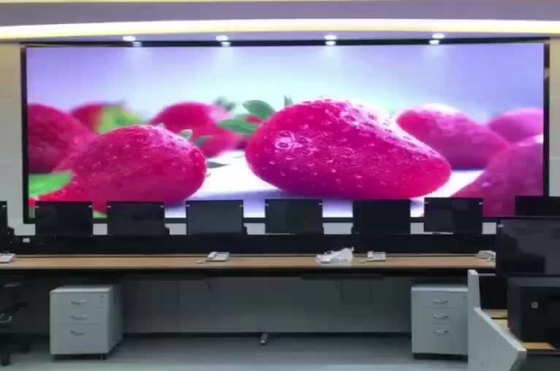

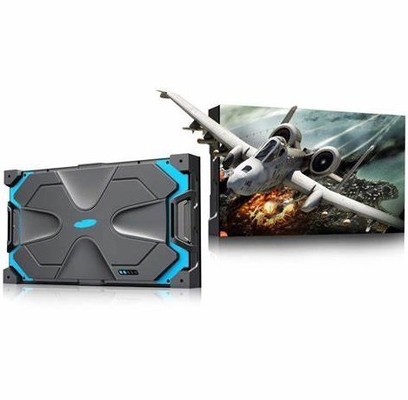

40 X 30cm Led Pitch High Resolution Led Screens Video Wall P1.667 P1.56 0

40 X 30cm Led Pitch High Resolution Led Screens Video Wall P1.667 P1.56 1




Packaging & Shipping



Packing : Anti-shaking wooden cabinet / Air flight case / strong carton

Shipping port : Shenzhen , China

Shipping way :  Air ; Express ; Ocean ; Land Transportation

Delivery time : 15 - 18 working days after confirm receipt payment in advance

Long working life : In the Maintenance period , free of all maintenance charge ,

after maintenance period only charge the material costs fees .





Our service



1 . Reply your inquiry in 24 working hours .
2 . Experienced staffs answer all your query in fluent English , Spanish , French , German etc .
3 . Customized design is available , OEM & ODM are welcomed .
4 . Exclusive and unique solution can be provided to our customer by our well - trained and professional

engineers and staffs .
5 . Special discount and protection of sales area provided to our distributor .
6 . Warmly welcome your visit in our company if available .
7 . Guidance service: We can guide on line if customers have questions about the installation and usage .
For large project , we provide your engineer a week free training , or if customer could bear the relevant cost ,

our engineer can go to customer ' s country for on - site guidance .
8 . Warranty period : 2 - 3 years after shipment .
