Outdoor 1R1G1B P10 LED Displays Single Pillar Type SMD3535

Outdoor 1R1G1B P10 LED Displays Single Pillar Type SMD3535
Outdoor 1R1G1B P10 LED Displays Single Pillar Type SMD3535
Outdoor 1R1G1B P10 LED Displays Single Pillar Type SMD3535 Outdoor 1R1G1B P10 LED Displays Single Pillar Type SMD3535 Outdoor 1R1G1B P10 LED Displays Single Pillar Type SMD3535 Outdoor 1R1G1B P10 LED Displays Single Pillar Type SMD3535 Outdoor 1R1G1B P10 LED Displays Single Pillar Type SMD3535

Large Image :  Outdoor 1R1G1B P10 LED Displays Single Pillar Type SMD3535

Product Details:
Place of Origin: ShenZhen
Brand Name: Longda LED
Certification: CE / RoHs / FCC / CCC / ISO9001 / ISO14001
Model Number: Outdoor P10
Payment & Shipping Terms:
Minimum Order Quantity: 1 Sqm
Price: Usd799 ~ Usd999 / Sqm ( Price is negotiable )
Packaging Details: Flight case packing or Plywood case packing
Delivery Time: 15 - 18 days
Payment Terms: L / C , T / T , Western Union , MoneyGram
Supply Ability: 5000sqm per month

Outdoor 1R1G1B P10 LED Displays Single Pillar Type SMD3535

Description
LED Packing: 3535 Cabinet Material: Waterproof Iron
Brightness: 7000cd/m² Products Name: Outdoor P10 Led Display
Scanning Method: 2s/ 4s Power Supply: 300W
High Light:

1R1G1B P10 LED Displays

,

Outdoor P10 LED Displays

,

SMD3535 Outdoor LED Video Walls

Outdoor 1R1G1B P10 LED Displays Single Pillar Type SMD3535





Functions and Advantages



1. High refresh rate: With NOVA STAR control system, no scanning line when photographed;
2. High gray level: 256 RGB each, display 16.7M colors, vivid and perfect video effect;
3. High resolution: The most apparent features of the new generation of LED display;
4. Good color uniformity: With brand Lamp Nationstar and high refresh MBI5124 IC.





Specifications



Pixel Pitch

10mm

LED Lamp

SMD3535

LED configuration

SMD 3 in 1

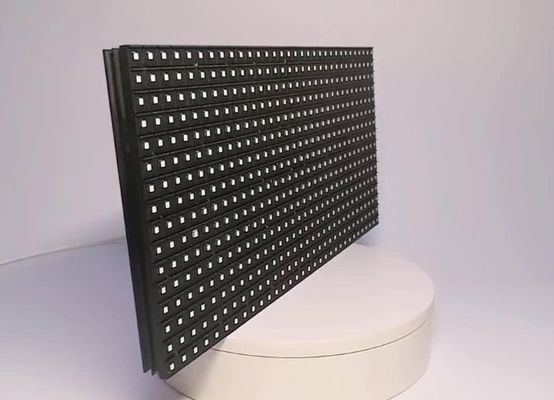

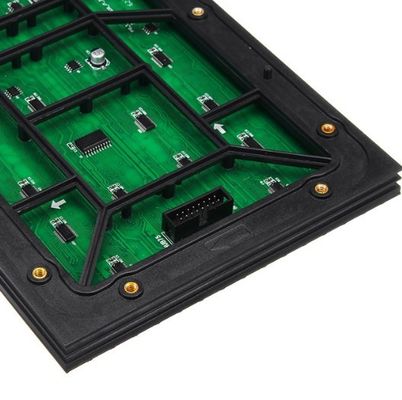

Module Size

320mm x 160mm

Module pixels

32x16dots

Cabinet Size(WxHxD)(mm)

960x960x108mm

Module Quantity(pcs)

18

Pixel Density

96x96dots

Cabinet pixels

9216 dots

Cabinet Weight (kg)

28

Average Power/sqm (watts)

200

Max Power/sqm(watts)

600

Brightness Control

256 level

Gray scale

14 bit





Refresh frequency

1920hertz

Driving mode

1/2 scan

Input power frequency

50 or 60 Hertz

Input Voltage

110 ~ 240 Volt,60Hz

Blind spot rate

<1/10000

Lifetime at 50% brightness

100000 hours

Ingress Protection

IP65

Operating temperature

﹣20 ~﹢60 ℃

Operating humidity

10% ~ 90%

Control distance

CAT5 cable:<100 m; Single mode fiber:<10 km

Signal input format

HDMI,DVI,SDI,VGA etc.

Operating system

Windows (2000/XP/Vista/7/8/10)





Outdoor 1R1G1B P10 LED Displays Single Pillar Type SMD3535 0

Outdoor 1R1G1B P10 LED Displays Single Pillar Type SMD3535 1





FAQ :



Question 1: How can I trust your LONGDA LED factory?



Answer: Yes, when you talk with us now, we are here. We do led since 2009, it is over 12 years. In the past 8 years, we develop so well. Tomorrow and future, we will largely expand our LED market, you will see it.
Welcome to try our LED sample quality.
We do have 100% confidence in our LED product.



Quesiton 2: If I need led very urgently, how fast can you finish the goods?



Answer:How fast you want? Three days? One week? Definite shipping date?
We produce LED everyday. We have some led modules in stock.
Put the most urgent and important order at the first place.
You are important to us. Surely to establish first-time good relationship.
We do must finish it at FAST ROCKET TIME.



Q3:Is it easy to install this led display ?



Answer: If you are new to LED, we will help you to know led from Zero to Professional.
We have installation manual book and professional engineering team to guide you.
To help you better understand LED is to make us get your earlier trust.
If you knew LED before, we can learn from each other.
We could be Future Shaking-hands Partners.
Our engineering team remote help is ready for you 24-hours.
