Product Details:
|
| Usage: | Church/ Wedding/ Party/ Concert/ Stage | Cabinet Material: | Diecasting Aluminum Cabinet |
|---|---|---|---|
| Model: | 3.91mm | Power Supply: | 200w |
| Module Size: | 250x250mm | LED: | SMD 2020 Kinglight Nationstar |
| High Light: | P3.91 Rental Video Wall,SMD 2020 Rental Video Wall,Full Color backstage led screen |
||
Full Color Indoor Outdoor P3.91 Rental Video Wall Display Events Backstage Led Displays
Advantages
1) It is extremely easy to calculate the area of LED screen because it is consist of
500*500mm/ 500mm*1000mm cabinet.
2) High definition and high resolution, refresh rate over 3840Hz,
so the video or images on the LED screen are very vivid and fresh.
People who see it will get shocked by this amazing viewing experience.
3) The appearance is very elegant, it looks very high-end, quality is very stable.

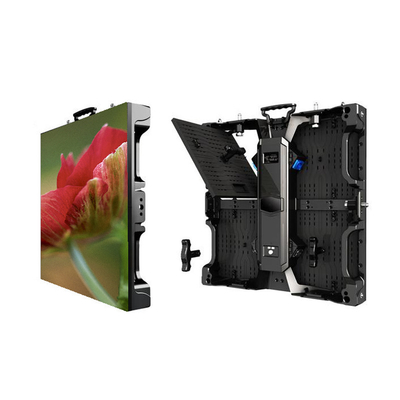

4) Applied with die-casting aluminum cabinet, very strong and precision is very high,
tolerance can be controlled in 0.1mm so the surface is very smooth, almost no gap between cabinets.
5) The side locks is spring locks, this is unique among all die-casting aluminum cabinets,
especially popular in European market and North American market.
Technical parameters :
|
Led Module Specification |
|||||
|
Item |
Specification |
||||
|
Pixel Pitch |
3.91mm |
||||
|
Module Resolution |
W64×H64dots |
||||
|
Module Size |
250*250mm |
||||
|
Led Packing |
1921 |
2121 |
|||
|
IP Rate |
65 |
43 |
|||
|
IC |
2038s |
||||
|
LED composition |
1R1G1B |
||||
|
Cabinet Specification |
|||||
|
Cabinet Size |
500*500mm |
||||
|
Module Qty |
W2X H2 =4PCS |
||||
|
Physical Resolution |
W128×H128dots |
||||
|
Power Consumption(MAX.) |
200 W/m² |
||||
|
Power Consumption(AVE.) |
120 W/m² |
80 W/m² |
|||
|
Cabinet Material |
Die-casting Aluminum |
||||
|
Physical Density |
65410 dots/m² |
||||
|
Net Weight |
9Kg |
6.5Kg |
|||
|
Screen Specification |
|||||
|
Brightness |
4500cd/m² |
900cd/m² |
|||
|
Colors |
16.7 trillion |
||||
|
Brightness Control |
Software 256 level adjustable |
||||
|
Gray Level |
14 |
||||
|
View Distance |
2～100m |
||||
|
Refresh Rate |
≥1920~3840Hz |
||||
|
Drive Mode |
1/16s |
||||
|
Life Span |
100,000h |
||||
|
MTBF |
1000h |
||||
|
Control mode |
Synchronous control or Asynchronous control |
||||
|
Frame Frequency |
≥60Hz |
||||
|
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
||||
|
Operation Temperature |
-20℃ ～ +45℃ |
||||
|
Operation Humidity |
10%～95% |
||||
FAQ :
1: What is the warranty of your led display?
A: We offer 2-3 years warranty and more than 100000 hours screen life span .
2: What is your payment term? How long it takes to delivery?
A: We usually accept the T/T or L/C, both of them will at least 30% deposit in advance,
and the rest of 70% will be paid before delivery.
The lead time is usually 18-25 days.
3: What are your pre-sale and post-sale service?
A: For pre-sale service, we have professional sales team and technical team,
who are willing to answer your question within 24 hours.
For post-sale service, we will instruct you how to installation, how to use it, how to change
the broken modules and we can also send the technicals to your country.
In general, our led display will not have a big problem, you can rest assured to buy.
Service :
1 . Your inquiry related to our products or price will be replied in 12hrs.
2 . OEM& ODM, any your customized displays we can help you to design and put into product.
3 . We are offered for your unique design and our some current models.
