Custom Outdoor LED Video Walls Screens P8 Waterproof IP65 Iron Cabinet

Certification
China Shenzhen Longdaled Co.,Ltd certification
China Shenzhen Longdaled Co.,Ltd certification
I'm Online Chat Now

Custom Outdoor LED Video Walls Screens P8 Waterproof IP65 Iron Cabinet

Custom Outdoor LED Video Walls Screens P8  Waterproof IP65 Iron Cabinet
Custom Outdoor LED Video Walls Screens P8  Waterproof IP65 Iron Cabinet Custom Outdoor LED Video Walls Screens P8  Waterproof IP65 Iron Cabinet Custom Outdoor LED Video Walls Screens P8  Waterproof IP65 Iron Cabinet Custom Outdoor LED Video Walls Screens P8  Waterproof IP65 Iron Cabinet Custom Outdoor LED Video Walls Screens P8  Waterproof IP65 Iron Cabinet

Large Image :  Custom Outdoor LED Video Walls Screens P8 Waterproof IP65 Iron Cabinet

Product Details:
Place of Origin: ShenZhen, China
Brand Name: LONGDA LED
Certification: CE/ RoHs/ FCC/ CCC/ ISO9001/ ISO14001
Model Number: Outdoor P8
Payment & Shipping Terms:
Minimum Order Quantity: 1 Sqm
Price: price is negotiable (Sqm)
Packaging Details: Flight case packing or Plywood case packing
Delivery Time: 15-18 days
Payment Terms: L/C,T/T
Supply Ability: 5000sqm per month

Custom Outdoor LED Video Walls Screens P8 Waterproof IP65 Iron Cabinet

Description
Model: Outdoor P8 Full Color Led Display Cabinet Size: 960*960mm
Refresh Rate: 3840Hz~7680Hz Brightness: 4000-8000nits
Resolution: 40*20 Scan: 4s
Cabinet Material: Iron Cabinet Or Diecasting Aluminum Cabinet Warranty: 3 Years
Highlight:

Waterproof Cabinet outdoor led video wall

,

7000cd/m2 outdoor led video wall

,

IP65 video wall screens

Custom Outdoor Led Video Wall Screens P8 With Light Emitting Materials Big Screen



Product Introduction

  • Strong Visual Impact – Large-size displays with vivid visuals and dynamic content attract attention and enhance brand visibility.
  • Wide Coverage – Ideal for shopping malls, commercial areas, streets, and other high-traffic locations.
  • 24/7 Advertising – Supports continuous playback, helping businesses reach more potential customers at a lower advertising cost.
  • Rich & Engaging Content – Supports videos, live broadcasts, programs, and other multimedia content for more effective communication.


Custom Outdoor LED Video Walls Screens P8  Waterproof IP65 Iron Cabinet


Specifications


Type P8
Pitch 8 mm
LED Model & Type 2727
Scan 4s
Cabinet Type Die-casting Aluminum
Access / Maintenance Rear Maintenance
Refresh 7680Hz
Brightness 4000-8000nits
Viewing Angle H 160°,V 160°
Control System NovaStar
Density(dot/m²) 15625
Module Pixels (L*H) 40*20
Module Size (L*H)mm 320*160mm
Cabinet Size (L*H)mm 960*960mm
Single Cabinet weight (kg) 30KG
Max Power (watts / m²) 800watts / m²
Avg Power (watts/m²) 240watts / m²
Certification 3C CE ROHS
Ingress Protection (IP) IP65
Grayscale 14-16bit+



Custom Outdoor LED Video Walls Screens P8  Waterproof IP65 Iron Cabinet

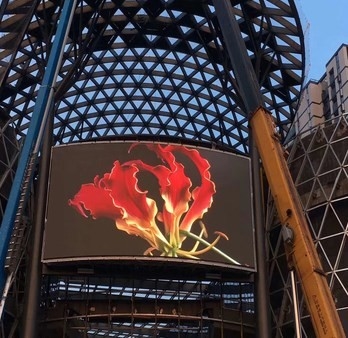

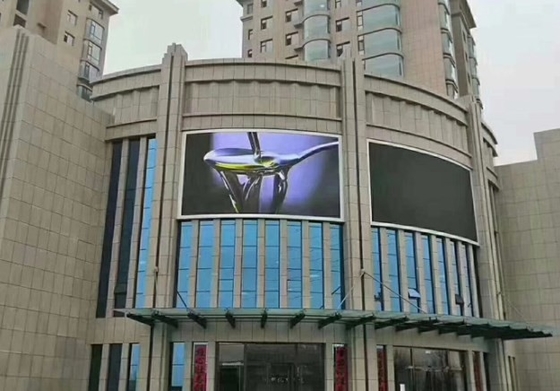

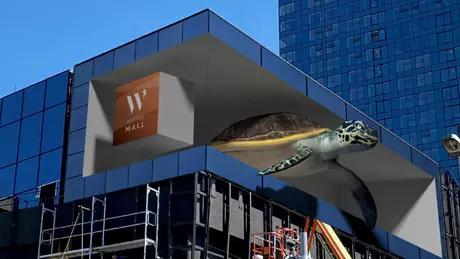

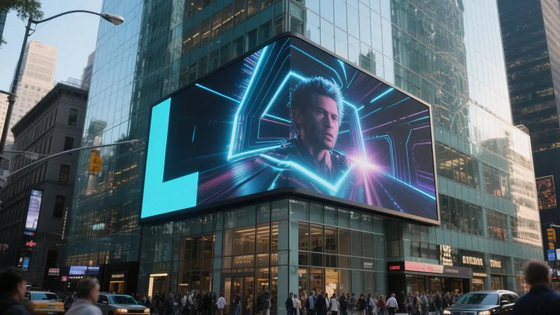

Product applications



Business Organizations supermarket, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc.
Financial Organizations banks, security company, insurance company, post office, hospital, school, etc.
Public Places subway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc.
Entertainments movie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course etc.

Custom Outdoor LED Video Walls Screens P8  Waterproof IP65 Iron Cabinet


FAQ


1. Strict quality control:
The quality of our display is excellent.

We use the materials of high-quality suppliers in the world, strictly control the production process,

and pass multiple quality inspections to ensure that every product is qualified.

2. Quality guarantee:
All our LED display screens are more than 100,000 hours of life span.

3. Long warranty:
2-3 years warranty, any quality problem during warranty time will be handled.

4. Prompt& Professional service:
Any inquiries will be replied to within 24/7 hours and you'll get helpful suggestions from us.


Custom Outdoor LED Video Walls Screens P8  Waterproof IP65 Iron Cabinet


Your questions


Q1: LED display models are generally expressed in PX, such as P2 P3 P4.....P8 P10, what does this mean?
A: P1.25, P2, P3 P4.....P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm....10mm,

which determines the resolution of a display. Pixel pitch is smaller, led display resolution is higher.

Q2: What pixel pitch should I choose on my display?
A: Using the PX screen is determined mainly by the viewing distance, the size of the display screen,

the desired effect and the customer budget.

Q3: To order a display, What kind of information do I have to offer you?
A: You should provide the width/ height of the display, the main use, the viewing distance, the scene photos,

special requirements, then I can provide you with a detailed list of quotations.

Q4: How to install?
A: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,

free remote debugging. We can also send our engineers to the site to guide the installation if needed.

Q5: What about the lead time?
A: Orders less than 50 square meter display, lead time is 15 working days.

Q6: Can I order a sample?
A: Yes, your sample orders are welcome, after checking our quality and service,

we are confident that you will come back for your future orders.
