SMD1010 LED Video Display Screen Module Panels P1.25mm 640*480mm

Certification
China Shenzhen Longdaled Co.,Ltd certification
China Shenzhen Longdaled Co.,Ltd certification
I'm Online Chat Now

SMD1010 LED Video Display Screen Module Panels P1.25mm 640*480mm

SMD1010 LED Video Display Screen Module Panels P1.25mm 640*480mm
SMD1010 LED Video Display Screen Module Panels P1.25mm 640*480mm SMD1010 LED Video Display Screen Module Panels P1.25mm 640*480mm SMD1010 LED Video Display Screen Module Panels P1.25mm 640*480mm SMD1010 LED Video Display Screen Module Panels P1.25mm 640*480mm SMD1010 LED Video Display Screen Module Panels P1.25mm 640*480mm

Large Image :  SMD1010 LED Video Display Screen Module Panels P1.25mm 640*480mm

Product Details:
Place of Origin: ShenZhen
Brand Name: LongdaLed
Certification: CE / RoHs / CCC / FCC / ISO9001 / ISO14001
Model Number: LD - P1.25
Payment & Shipping Terms:
Minimum Order Quantity: 1 Sqm
Price: USD699 - USD1099 / Sqm ( price is negotiable )
Packaging Details: Plywood / Freight Case
Delivery Time: 15 - 25 days
Payment Terms: L / C , T / T , Western Union ,
Supply Ability: 3000 Square Meters per Month

SMD1010 LED Video Display Screen Module Panels P1.25mm 640*480mm

Description
Brand Name: Longda Color: Full Color
Pitch: 1.25mm Valtage: 110-220V
Panel Size: 320*160mm PCB Color: Black
Cabinet Material: Die - Casting Aluminum Cabinet Size: 640 * 480mm
Refresh Rate: 1920 - 3840hz Module Resolution: W256 * H128 Dots
Led Type: RGB 3IN1 1515 Scanning Method: 64s
View Distance: 3 ~ 50m Life Span: 100000h
Operation Humidity: 10 % ~ 95 % Control Mode: Synchronous Control Or Asynchronous Control
Highlight:

SMD1010 LED Video Display Screen

,

led screen panels P1.25mm

,

led module panel 640*480mm

Led Screen Module Indoor Led Module Screen P1.25 HD LED Video Display Screen



Advantages :



It has high definition and high resolution with diecasting aluminum cabinet , easy to installation .
We can also offer 2 ~ 3 years warranty , free technique training and instruction , teach you how to
use and debug the led screen .



Specifications :



Pixel pitch

1.25

Physical density

640000 Pixels

Led packing

SMD1010

LED composition

1R1G1B

Caninet weight

9 kg

Cabinet size

640 x 480mm

Cabinet material

Die - casting aluminum

AC operation voltage

110 - 220v

Scan

64s

Brightness

≥ 500cd / ㎡

Gray level

14 bit

View distance

1.5m ~ 15m

View angle

140 degree horizon / vertical

Refresh rate

2800 ~ 3840 hz

Life span

100000 h

Frame frequency

≥ 60Hz

IP rate

Indoor IP30

Certification

CE / RoHs / FCC / CCC / ISO14001 / ISO9001



SMD1010 LED Video Display Screen Module Panels P1.25mm 640*480mm

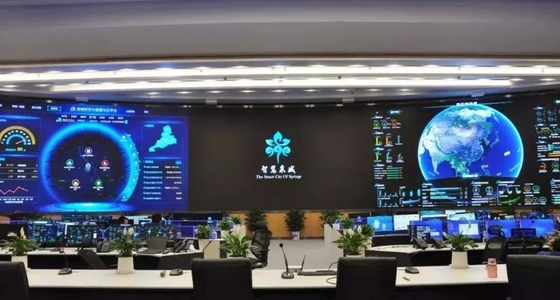

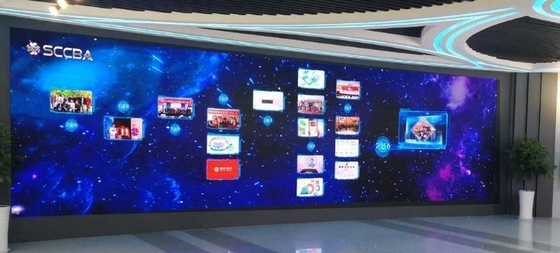

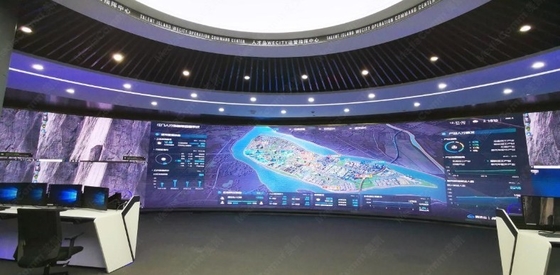

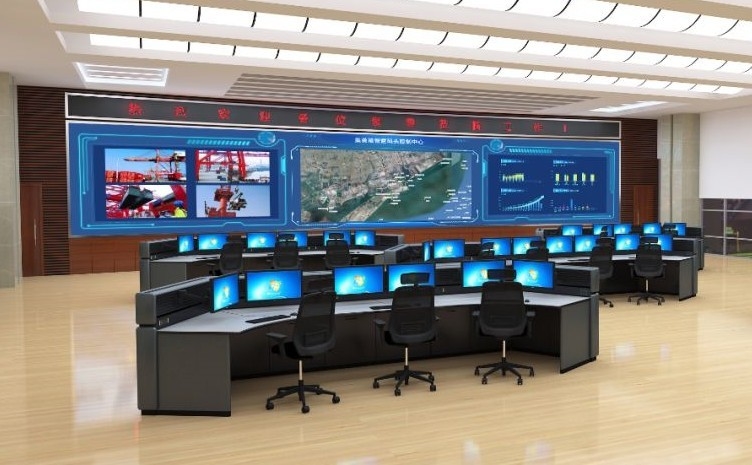

Applications :



Led screnn module P1.25 indoor colorful display most widely used in conference , office , stage ,

company ceremony , real - estate center , exhibition room , show , automobile advertisement ,

command room , control center , TV station , and so on .



SMD1010 LED Video Display Screen Module Panels P1.25mm 640*480mm



FAQ :



1 . Is Longda Led a factory or simply a trading company ?
We are a TRUE OEM / ODM factory . Please read our COMPANY PROFILE , for more information on this issue .



2 . What payment methods are available to me ?
We accept T / T , L / C and Western Union .



3 . We don ' t know how to operate and install the display , it is a problem !
We provide technique training for free , which contains the operation , installation and maintenance training

of the LED screens in the factory .

All operation manual , software , test reports are available .
If need , we can send our engineer to your side for instruction for free , but you should pay the cost about

engineer ' s trip ( help get visa , pay for flightiest , hotel and meals ) .



4 . What is your warranty and after - sale service ?
3 years warranty with lifetime free maintenance .
During 3 years , we will maintain and replace the defect components for free .
After 3 years warranty , we provide free maintenance but only charge for spare part only at cost price .

5 . What are the shipment terms and delivery times of your company ?
Delivery time is directly affected by the size of the order , usually 15 - 20 days .



6 . I would like to add my company logo on your products , is this possible ?
We customize on a regular basis products for many large retaillers and brands .

If your order is at the below 10 units , we still can consider this as a SAMPLE order , some fees might

apply for the logo prints .

Different methodes are used for logos , please ask your Key Account MGR for more information on this issue ,

we will surely find the right solution for you !
