Product Details:
|
| Emitting Color: | 281 Trillion | Type: | P3.9 - 7.8 Led Transparent Screen |
|---|---|---|---|
| Luminous Intensity: | 500 - 900cd / M2 Or 4500 - 5000cd / M² | Operating Temperature(℃): | - 20 ℃ ～ + 45 ℃ |
| Application: | Stage / Event / Hotel / Conference / Party / Shopping Mall | Warranty: | 2 - 3 Years |
| Product Name: | P3.91 Led Transparent Display | Scanning Method: | 16S |
| View Distance: | 4 ～ 50m | Control Mode: | Synchronous Control Or Asynchronous Control |
| High Light: | 500cd large led screens for concerts,concert led display 4500cd/ m2,concert led screen rental 50m |
||
Led Window Display Screens Indoor Full Color P3.9 - 7.8 Colorful Concert Floor LED Wall
Advantages :
1 . The thickness of the main board is only 10mm , and the weight of the display screen is only 15Kg / ㎡ .
2 . It is directly fixed on the glass curtain wall without changing the structure of the building .
3 . No steel frame structure , saving a lot of installation and maintenance costs .
4 . Directly fixed on the glass curtain wall , without any steel structure , save a lot of cost .
5 . The unique display effect because the display background is transparent , can make the advertising picture
give people the feeling of suspension on the glass curtain wall , with good advertising effect and artistic effect .
Specifications :
|
Pixel Pitch |
3.9 - 7.8mm |
||||
|
Module Resolution |
W128 * H16 dots |
||||
|
Module Size |
500 * 125mm |
||||
|
Led Packing |
1921 |
||||
|
IP Rate |
43 |
||||
|
IC |
2038 |
||||
|
LED composition |
1R1G1B |
||||
|
Cabinet Size |
500 * 1000mm |
||||
|
Module Qty |
W2 * H 4 = 8PCS |
||||
|
Physical Resolution |
W256 * H64 dots |
||||
|
Power Consumption(MAX.) |
800 W / m2 |
||||
|
Power Consumption(AVE.) |
240 W / m2 |
||||
|
Cabinet Material |
Die - casting Aluminum |
||||
|
Physical Density |
40000 dots / m2 |
||||
|
Net Weight |
5.6Kg |
||||
|
Brightness |
≥ 5500cd / m2 |
||||
|
Colors |
281 trillion |
||||
|
Brightness Control |
Software 256 level adjustable |
||||
|
Gray Level |
16 |
||||
|
View Distance |
3 ～ 100m |
||||
|
Refresh Rate |
≥ 3840Hz |
||||
|
Drive Mode |
1 / 8s |
||||
|
Life Span |
100000h |
||||
|
MTBF |
1000h |
||||
|
Control mode |
Synchronous control or Asynchronous control |
||||
|
Frame Frequency |
≥ 60Hz |
||||
|
Certification |
CE / ROHS / FCC / CCC / ISO9001 / ISO14001 |
||||
|
Operation Temperature |
- 20 ℃ ～ + 45 ℃ |
||||
|
Operation Humidity |
10 % ～ 95 % |
Applications :

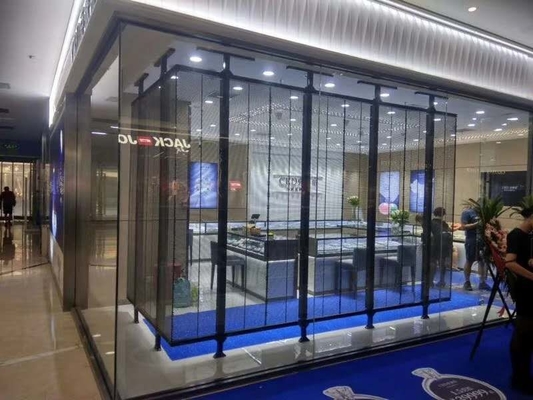

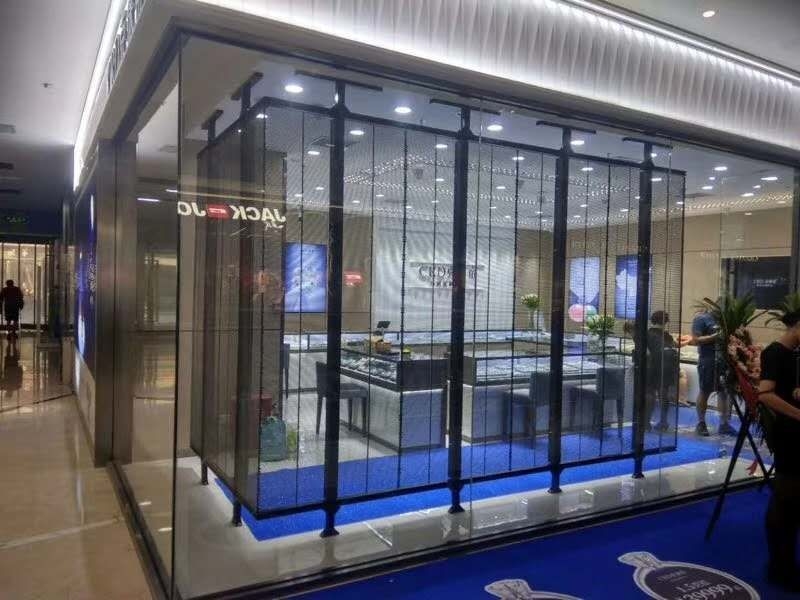

Led window display screen P3.9 - 7.8 glass curtain wall gain a good space visual effect indoor ,
such as in chain store , shopping mall , exhibition center , airport , metro station , automobile 4S shop ,
jewelry store , bank etc . which brings strong visual impact and sense of hierarchy for LED transparent display .
FAQ :
Q1 . Are you a manufacturer or trading company ?
A1 . We are a Professional OEM / ODM manufacturer which has specialized in led display industry
for more than 12 years.
Q2 . How does your factory do regarding quality control ?
A2 . Quality is priority .
At first , our factory use the best SMT machine is YAMAHA , and all product aging test 48hours at least .
Our product approved CE / ROHS / FCC / CCC / ISO9001 / ISO14001 certificates .
Q3 . What is your MOQ ?
A3 . Any quantity is acceptable for your order . And the price is negotiable for large quantity .
Q4 . When will you make the delivery ?
A4 . We can make the delivery within 3 - 5 working days for the led modules and 10 - 30 days for the
led display with cabinet according to the size and quantities of your order .
