Product Details:
|
Pixel: | 3.91mm | Cabinet Resolution: | 128 X 128 Dots / 128 X 256 Dots |
---|---|---|---|
Cabinet Size: | 500 * 500mm / 500 X 1000mm | Brightness: | ≥5000nits |
Refresh Rate: | 3840hz | Module Size: | 250 X 250mm |
Highlight: | rental led screen 6500K,outdoor led screen hire 3840hz,waterproof led screen 128x256 |
Rental Led Display High Resolution Waterproof P3.91 Full Color Background Wall
Advantages :
Hot Sale P3.91 LED Display/ LED Sign with 500mm*500mm /500mm*1000mm
1 It is extremely easy to calculate the area of LED screen because it is consist of
500*500mm/500mm*1000mm cabinet.
2 16 bit color, 65536 gray scale, refresh rate over 3840HZ/S so the video or images on the LED screen
are very vivid and fresh. People who see it will get shocked by this amazing viewing experience.
3 The appearance is very elegant, it looks very high end. Quality is very stable
4 It is die-casting aluminum cabinet, very strong and precision is very high, tolerance can be controlled
in 0.1mm so the surface is very smooth, almost no gap between cabinets
5 The side locks is spring locks, this is unique among all die-casting aluminum cabinets,
especially popular in European market and North American market
6 With power and signal connectors, Neutrik or Seetronic brand , very easy to install and dismantle
7 High contrast rate up to 5000:1 by using black LED
8 The new structure design enables diversified installation to meet the hanging-up and stacking requirements.
9 Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost
10 Good thermal design, excellent heat dissipation even no fan installation,
11 The same cabinet size can be compatible with different pixel pitches such as P3.91, P4.81,P5.95,P6.25 .If you want to update the product, you only need to change the module.
12 It is low noise, can be installed in office and meeting room.
Technical parameters :
P3.91 Rental Stage Video LED Display Screen For Outdoor |
||||||||
S/N |
Item |
Technical Parameters |
||||||
LED Parameters |
||||||||
1 |
Item Name |
LED Type |
Brightness |
Wave Length |
H/V Visual Angle |
|||
2 |
Red LED |
SMD1921 |
540-702mcd |
620-625nm |
160º/160º |
|||
3 |
Green LED |
SMD1921 |
1200-1300mcd |
519-522nm |
160º/160º |
|||
4 |
Blue LED |
SMD1921 |
200-260mcd |
462-465nm |
160º/160º |
|||
Module Specification |
||||||||
1 |
Pixel Pitch |
3.91mm |
||||||
2 |
Pixel Configuration |
1R1G1B |
||||||
3 |
Module Resolution |
64 x 64 pixels |
||||||
4 |
Module Pixles |
4096 pixels |
||||||
5 |
Module Size |
250mm X 250mm |
||||||

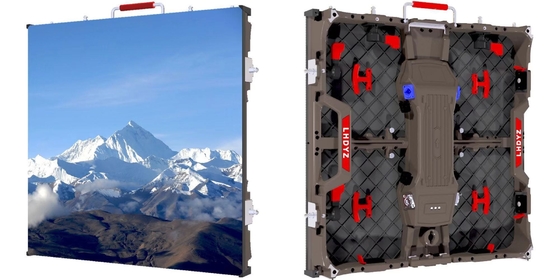

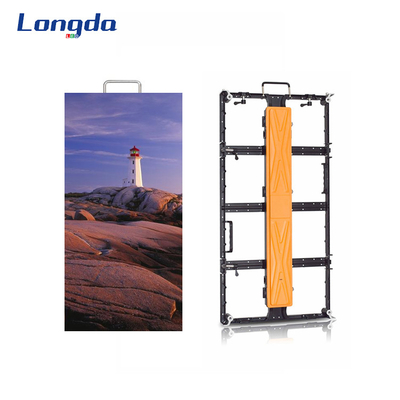

Cabinet Specification |
||||||||
1 |
Cabinet Size(W X H X D) |
500mm x 1000mm x 80mm |
||||||
2 |
Cabinet Resolution(dot) |
128 x 256 pixels |
||||||
3 |
Module Quanity (pcs) |
8pcs |
||||||
4 |
Cabinet Pixels |
32768 pixels |
||||||
5 |
Pixel Density |
65536 pixels/m² |
||||||
6 |
Cabinet Materials |
Die Casting Aluminum Cabinet for rental purpose |
||||||
7 |
Cabinet Weight |
10 kg per cabinet |
||||||
8 |
Packaging |
Fly case |
||||||
9 |
Fly Case Size |
105*65*65CM ( one case for six cabinets )/ 85kg |
||||||
Whole Screen Specification |
||||||||
1 |
Screen Brightness |
≥4500cd/m² |
||||||
2 |
Driving Method |
1/16 scan |
||||||
3 |
Best Viewing Distance |
3.91m - 40m |
||||||
4 |
Max. Power Consumption |
600W/m² |
||||||
5 |
Average Power Consumption |
180W/m² |
||||||
6 |
Gray Level |
65536 levels(16 bit ) |
||||||
7 |
Display Color |
16M |
||||||
8 |
Frame Frequency |
≥60Hz |
||||||
9 |
Refresh Frequency |
≥1920Hz |
||||||
10 |
Uninterrupted Working Hours |
≥72 hours |
||||||
11 |
Screen Life-span |
≥100,000 hours |
||||||
12 |
MTBF |
≥5,000 hours |
||||||
13 |
Discrete Blind Spot Rate |
<1/10000 |
||||||
14 |
Continuous Blind Spot Rate |
None |
||||||
15 |
Blind Spot Rate |
<1/10000 |
||||||
16 |
Protective Scale |
For indoor use only |
||||||
17 |
Screen Plainness |
<±1mm |
||||||
18 |
Power Supply Mode |
AC220±10% 50Hz/AC110±10% 60Hz |
||||||
19 |
Environment Temperature & Humidity |
Temperature:-20 Celsius~+60 Celsius |
||||||
Humidity:10%~90% RH |
||||||||
20 |
Control Mode |
Synchronous display with control PC by DVI |
||||||
21 |
Control System |
Linsn, Novastar or as you required. |
||||||
22 |
Display Content |
Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
||||||
23 |
Interface |
Standard Ethernet |
||||||
24 |
Transmission Distance |
Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
||||||
25 |
Certificate |
CE, ROHS, FCC |
FAQ :
1 : What is the warranty of your led display ?
A : We offer 5 years warranty and more than 100000 hours screen life span
2 : What is your payment term?How long it takes to delivery ?
A : We usually accapt the T/T or L/C both of them will at least 30% deposit in advance,and the rest of 70% will paid before delivery .
The lead time is usually 20 day
3 : How can you ensure the led display product quality ?
A : Before shippment , all the screens have aging test and then we also have waterproof test and shake test , ensure products can transportation safety and normal use .
4 : What is your pre-sale and post-sale service ?
A : For pre-sale service , we have professional sales team and technical team , who are willing to answer your question within 24 hours .
For post-sale service , we will instruct you how toinstallation , how to use , how to change the broken moudles , and we can also send the technicals to your country , in general , our led display will not have a big problem , you can rest assured to buy .
Services :
1.Your inquiry related to our products or price will be replied in 12hrs.
2.OEM&ODM,any your customized lightings we can help you to design and put into product.
3.Distributoership are offered for your unique design and some our current models.
4.Protection of your sales area,ideas of design and all your private information.
5.Best cost performance and perfect service before and after sales.
Company other products :
Indoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P3, P3.9, P4, P4.8, P5, P6
Outdoor fixed LED screen: P5, P6, P8, P10
Outdoor rental LED screen: P3.9, P4.8, P5, P6, P6.25, P8, P10
Small pitch LED screen: P1.6, P1.9
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P8, P10
LED poster player: P2.5,P3, P4, P5, P6, P8, P10
