Product Details:
|
| Pixel: | 3.91mm | Module Size: | 250x250mm |
|---|---|---|---|
| Refresh Rate: | 3840hz | Scan: | 16s |
| Cabinet Size: | 500 * 500mm/500x1000mm | LED: | SMD 2020 Kinglight Nationstar |
| Highlight: | Rental Led Display SMD 2020,concert screen rental IP65,commercial led screens 500x1000mm |
||
Rental Display Die Casting Aluminum P3.91 Hd Front Maiantenance 500x1000mm Panel
Advantages :
Hot Sale P3.91 LED Display/ LED Sign with 500mm*500mm /500mm*1000mm
1) It is extremely easy to calculate the area of LED screen because it is consist of 500*500mm/500mm*1000mm cabinet.
2) 16 bit color, 65536 gray scale, refresh rate over 3840HZ/S so the video or images on the LED screen are very vivid and fresh.
People who see it will get shocked by this amazing viewing experience.
3) The appearance is very elegant, it looks very high end. Quality is very stable

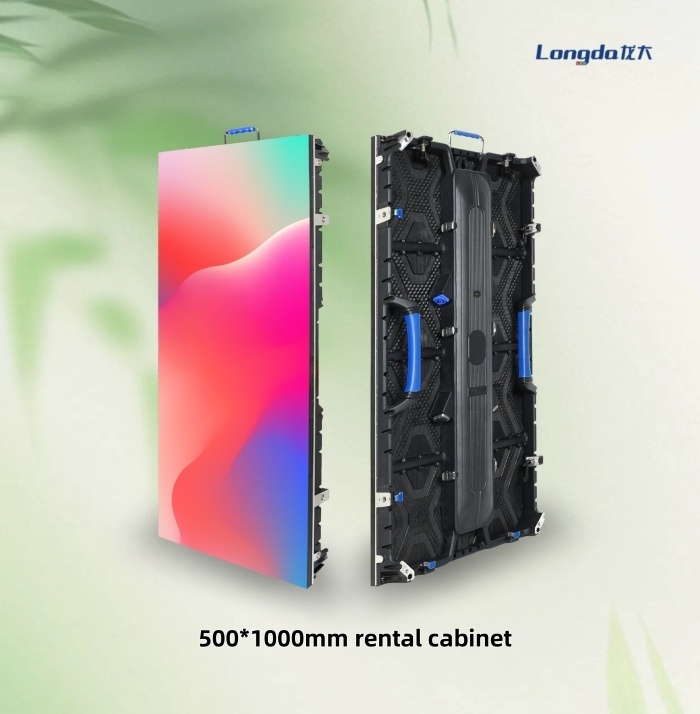

4) It is die-casting aluminum cabinet, very strong and precision is very high, tolerance can be controlled in 0.1mm so the surface is very smooth, almost no gap between cabinets
5) The side locks is spring locks, this is unique among all die-casting aluminum cabinets, especially popular in European market and North American market
Technical parameters :
|
P3.91 Full Color LED Transparent Screen |
||||||
|
Part I Technicial Parameters |
||||||
|
Led Module Specification |
||||||
|
NO. |
Item |
Specification |
||||
|
1 |
Pixel Pitch |
3.91mm |
||||
|
2 |
Module Resolution |
W64×H64dots |
||||
|
3 |
Module Size |
250*250mm |
||||
|
4 |
Led Packing |
1921 |
2121 |
|||
|
5 |
IP Rate |
65 |
43 |
|||
|
6 |
IC |
2038s |
||||
|
7 |
LED composition |
1R1G1B |
||||
|
Cabinet Specification |
||||||
|
1 |
Cabinet Size |
500*500mm |
||||
|
2 |
Module Qty |
W2X H2 =4PCS |
||||
|
3 |
Physical Resolution |
W128×H128dots |
||||
|
4 |
Power Consumption(MAX.) |
200 W/m2 |
||||
|
5 |
Power Consumption(AVE.) |
120 W/m2 |
80 W/m2 |
|||
|
6 |
Cabinet Material |
Die-casting Aluminum |
||||
|
7 |
Physical Density |
65410 dots/m2 |
||||
|
8 |
Net Weight |
9Kg |
6.5Kg |
|||
|
Screen Specification |
||||||
|
1 |
Brightness |
4500cd/m2 |
900cd/m2 |
|||
|
2 |
Colors |
16.7 trillion |
||||
|
3 |
Brightness Control |
Software 256 level adjustable |
||||
|
4 |
Gray Level |
14 |
||||
|
5 |
View Distance |
2～100m |
||||
|
6 |
Refresh Rate |
≥1200~1920Hz |
||||
|
7 |
Drive Mode |
1/16s |
||||
|
8 |
Life Span |
100,000h |
||||
|
9 |
MTBF |
1000h |
||||
|
10 |
Control mode |
Synchronous control or Asynchronous control |
||||
|
11 |
Frame Frequency |
≥60Hz |
||||
|
12 |
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
||||
|
13 |
Operation Temperature |
-20℃ ～ +45℃ |
||||
|
14 |
Operation Humidity |
10%～95% |
||||
FAQ :
1 : What is the warranty of your led display ?
A : We offer 5 years warranty and more than 100000 hours screen life span .
2 : What is your payment term ? How long it takes to delivery ?
A : We usually accapt the T/T or L/C , both of them will at least 30% deposit in advance , and the rest of 70% will paid before delivery .
The lead time is usually 20 day .
3 : What is your pre-sale and post-sale service ?
A : For pre-sale service , we have professional sales team and technical team , who are willing to answer your question within 24 hours .
For post-sale service , we will instruct you how to installation , how to use , how to change the broken moudles , and we can also send the technicals to your country , in general , our led display will not have a big problem , you can rest assured to buy .
