Product Details:
|
| Model: | 2.976mm | Cabinet Size: | 500x500mm And 500x1000mm |
|---|---|---|---|
| Module Size: | 250 X 250mm | Scan: | 28S |
| Brightness: | ≥800nits | Refresh Rate: | 3840hz |
| High Light: | AC240V Led Video Wall Panel,Led Video Wall Panels IP65,video wall panels P2.9 ROHS |
||

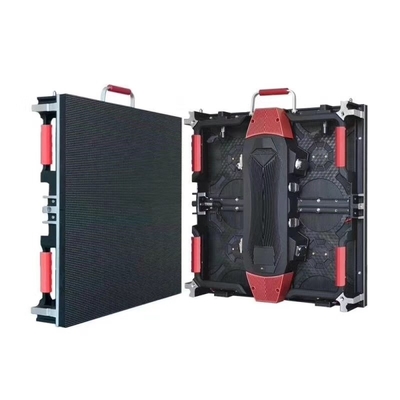

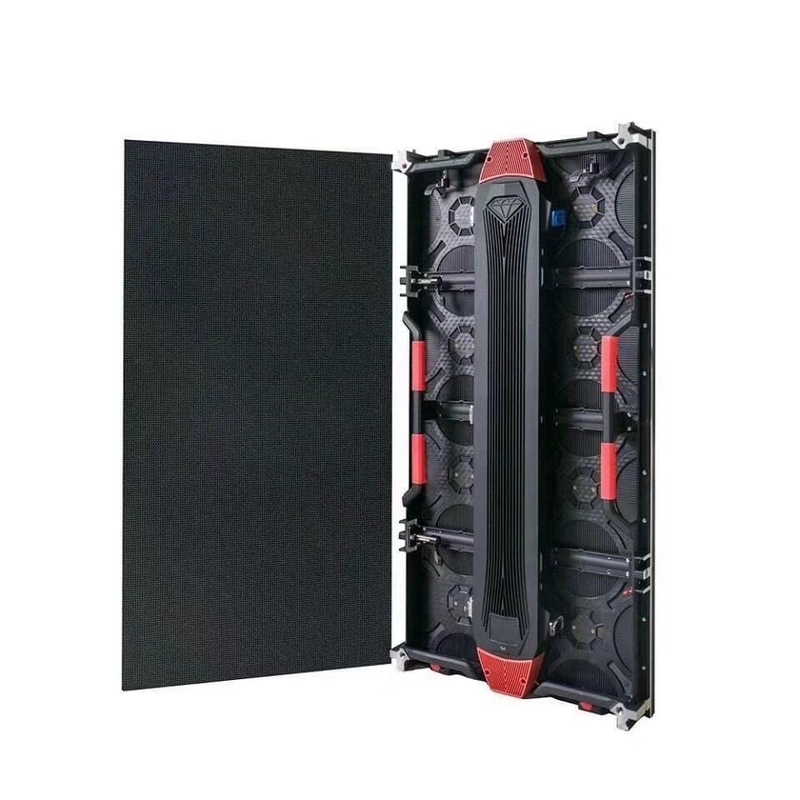

Led Display For Rental P2.9 500x1000mm And 500x500mm Led Video Wall Panel
Product Introduction
1 . Seamless Connection and Easy Installation,No gapline between 2 cabinets .
2 . Cost Saving for Installation and Maintenance .
3 . Dual-maintenance , no need fan , noiseless , low power comsumption .
4 . Vertical / Horizontal viewing angle 160 degree .
5 . Calibration for high quality picture .
Specifications
|
Item |
T2.97 |
T3.91 |
T4.81 |
|
Pixel pitch (mm) |
2.97 |
3.91 |
4.81 |
|
LED type |
SMD |
SMD |
SMD |
|
Pixel density |
112896 |
65536 |
43264 |
|
Module dimension (W*H) |
250*250 mm |
250*250 mm |
250*250 mm |
|
Cabinet dimension (W*H*D) |
500*500*65 mm |
500*500*65 mm |
500*500*65 mm |
|
Cabinet weight |
6.2kg |
6.2kg |
6.2kg |
|
Cabinet material |
Aluminium |
Aluminium |
Aluminium |
|
Access |
Front/rear access |
Front/rear access |
Front/rear access |
|
Ingress protection |
IP65 |
IP65 |
IP65 |
|
Brightness |
1000 nits |
1000 nits |
1000 nits |
|
Viewing angle |
V140° H120° |
V140° H120° |
V140° H120° |
|
Contrast ratio |
4000:1 |
4000:1 |
4000:1 |
|
Max.power |
550W |
640W |
600W |
|
Ave.power |
165W |
190W |
180W |
|
Input voltage |
AC 100-240V |
AC 100-240V |
AC 100-240V |
|
Driving method |
1/28 |
1/16 |
1/13 |
|
Refresh rate (HZ) |
1920 |
1920 |
1920 |
|
Gray scale (Bit) |
>14 |
>14 |
>14 |
|
LED lifespan (Hrs) |
100000 |
100000 |
100000 |
|
Operation temperature (ºC) |
-20~50 |
-20~50 |
-20~50 |
|
Storage temperature (ºC) |
-30~60 |
-30~60 |
-30~60 |
|
Working humidity (RH) |
15%~95% |
15%~95% |
15%~95% |
FAQ
1 . Experienced & Professional :
Over 12 years manufacturing experience on LED displays , professional workmanship & design .
2 . Best raw materials :
Nationstar and Kinglight LED chip , high quality , high brightness and long life span .
3 . Competitive price :
100% factory price , competitive and reasonable price .
4 . Strict quality control :
The quality of our display is excellent .
We use the materials of high quality suppliers in the world ,
strictly control the production process , and pass the multiple quality inspection to ensure that everyproduct is qualified .
