Product Details:
|
| Model: | 2.6mm | Module Resolution: | 96 X 96 Dots |
|---|---|---|---|
| Cabinet Size: | 500 X 500mm | Led Lamp: | KINGLIGHT 2020 |
| Scan: | 32S | Life Span: | 10000h |
| Highlight: | Led Display Screen Rental 50x50cm,IP40 stage background led display,P2.6mm led display billboard |
||

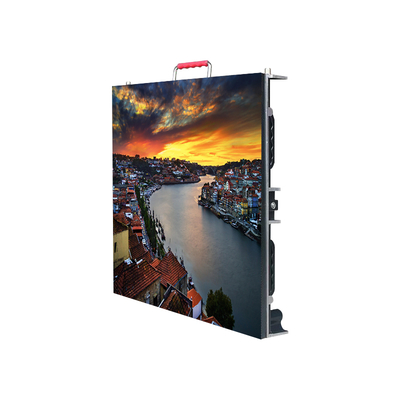

Led Display Screen Rental P2.6 Led Billboard Stage Led Background 500x500mm Cabinet
Product Introduction
1.Ultra slim and lightweight : 8kg per Cabinet Weight(500x500mm), 14kg per Cabinet Weight(500x1000mm),
greatly saves transportation costs and labor costs.

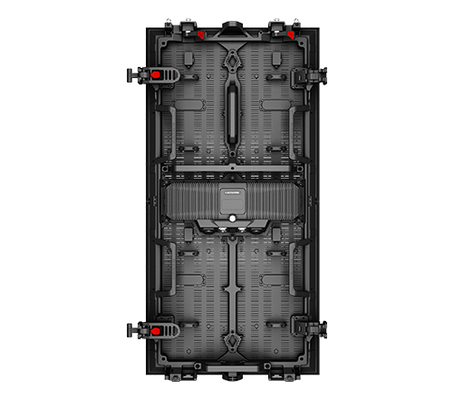

2.Rental die-casting aluminum structure: rock solid, not easy to deform.
3. Seamless splicing : give you a better visual experience.
4. Quick lock system, easy installation : quick installation, complete the installation in a few seconds.
Specification
|
Physical Pitch |
2.97mm |
3.91mm |
4.81mm |
|
Pixel Configuration |
SMD2121 |
SMD2121 |
SMD2121 |
|
Pixel Density |
112,896 pixels/sqm |
65,536 pixels/sqm |
43,264 pixels/sqm |
|
Module Dimension (W*H)(mm) |
250*250 |
250*250 |
250*250 |
|
Panel Dimension(mm) |
500*500*80/500*1000*75 |
500*500*80/500*1000*75 |
500*500*80/500*1000*75 |
|
Physical Resolution of Panel(W*H) |
168*168/168*336 |
128*128/128*256 |
104*104/104*208 |
|
Panel Material |
Die-Casting Aluminum |
Die-Casting Aluminum |
Die-Casting Aluminum |
|
Single Cabinet Weight |
8/14 kg/panel |
8/14 kg/panel |
8/14 kg/panel |
|
Processing |
16 bit |
16 bit |
16 bit |
|
Contrast Ratio |
4,000:1 |
4,000:1 |
4,000:1 |
|
Average Power Consumption |
64/128 W/panel |
64/128 W/panel |
64/128 W/panel |
|
Max Power Consumption |
192/384 W/panel |
192/384 W/panel |
192/384 W/panel |
|
Refresh Rate |
>1,920 Hz |
>1,920 Hz |
>1,920 Hz |
|
Brightness |
>1,200 nits |
>1,200 nits |
>1,200 nits |
|
Horizontal Viewing Angle |
160° |
160° |
160° |
|
Vertical Viewing Angle |
140° |
140° |
140° |
|
Servicing |
Front/Rear |
Front/Rear |
Front/Rear |
|
IP Rating (Front/Rear) |
IP40/IP21 |
IP40/IP21 |
IP40/IP21 |
Our Services & Strength
1 . Your inquiry about our products or the price will be replied within 24 hours !
2 . We provide 2 years for warranty and lifelong maintaining , you will appreciate our warm after-sale service .
3 . We will delivery goods as you demand , you can choose the cheaper and more convenient way !
4 . Apart from the Outdoor LED Display , Longdaled also can offer you Rental & Fixed LED Display ,
LED Flexible Display , Indoor LED Display , LED Transparent Glass Window Screens , Poster LED Walls .
