Product Details:
|
Emitting Color: | 281 Trillion | Viewing Angle(°): | 140 - 160 ° |
---|---|---|---|
Type: | P8 Outdoor Led Billboard | Luminous Intensity: | 6500 Cd / M² |
Operating Temperature(℃): | - 20 ℃ ~ + 45 ℃ | Application: | Stage / Event / Hotel / Conference / Party / Shopping Mall |
Warranty: | 2 - 3 Years | Product Name: | P8 Outdoor Led Display |
Voltage: | 110 - 220V | Size: | 640 X 960mm |
Led Type: | RGB 3IN1 3535 | Led Qty: | 1600 Led / Module |
Module Resolution: | W40 × H20 Dots | Scanning Method: | 5S |
Cabinet Material: | Iron / Steel / Aluminum | Physical Density: | 15625 Dots / M² |
Refresh Rate: | 700-1200hz | View Distance: | 6 ~ 150m |
Life Span: | 100000h | Control Mode: | Synchronous Control Or Asynchronous Contro |
Highlight: | 6500cd/ m2 Led Screen Module,AC220V p8 outdoor led module,p8 led module Advertising |
Led Screen Module P8 Outdoor Fixed For Building Advertising Display
Advantages :
1 . Outdoor advertising not only has a very good suggestive effect , and can cause consumption impulse ;
2 . Outdoor advertising is mostly giant colored billboards with an unconscious compulsion ;
3 . Image is prominent , the theme is distinct , the design is novel , eye - catching , easy to remember .
Specifications :
Pixel Pitch |
8mm |
||||
Module Resolution |
W40×H20 dots |
||||
Module Size |
320 * 160mm |
||||
Led Packing |
3535 |
||||
IP Rate |
65 |
||||
IC |
Constant current energy saving IC |
||||
LED composition |
1R1G1B |
||||
Cabinet Size |
960 * 640mm |
||||
Module Qty |
W2 X H 6 = 12PCS |
||||
Physical Resolution |
W80 × H120 dots |
||||
Power Consumption(MAX.) |
900 W / m² |
||||
Power Consumption(AVE.) |
500 W / m² |
||||
Cabinet Material |
Iron |
||||
Physical Density |
15625 dots / m² |
||||
Net Weight |
20Kg |
||||
Brightness |
6500cd / m² |
||||
Colors |
16.7 trillion |
||||
Brightness Control |
Software 256 level adjustable |
||||
Gray Level |
14 |
||||
View Distance |
6~150m |
||||
Refresh Rate |
≥ 700 - 1200Hz |
||||
Drive Mode |
1 / 5s |
||||
Life Span |
100000h |
||||
MTBF |
1000h |
||||
Control mode |
Synchronous control or Asynchronous control |
||||
Frame Frequency |
≥ 60Hz |
||||
Certification |
CE / ROHS / FCC / CCC / ISO9001 / ISO14001 |
||||
Operation Temperature |
- 20℃ ~ + 45℃ |
||||
Operation Humidity |
10 % ~ 95 % |
Applications :

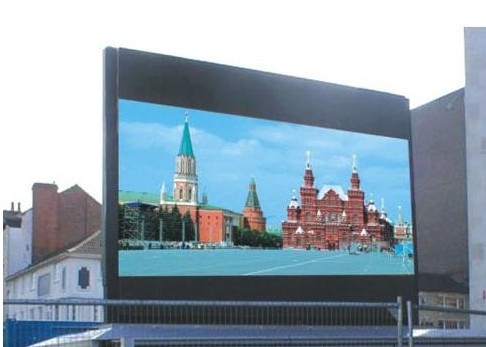

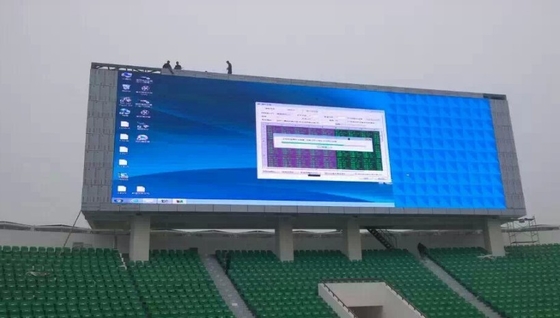

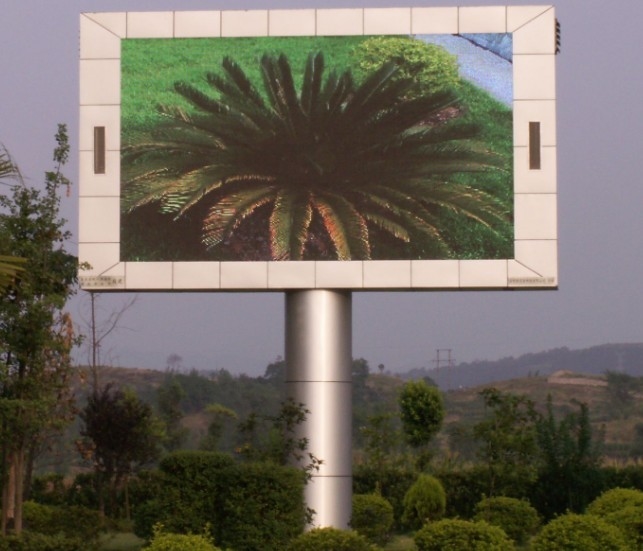

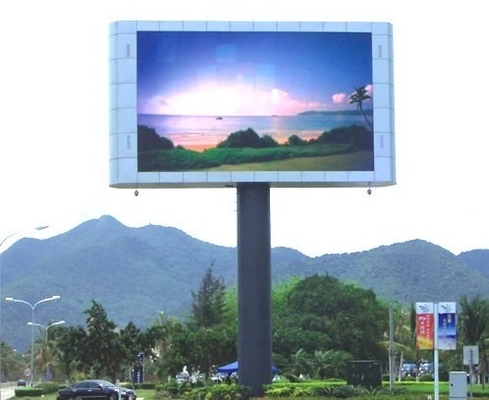

Led screen module P8 outdoor is widely used in city landmark building , municipal building ,
automobile 4S shop , bank , chain store , commercial advertising , airports , football stadiums ,
hotel , basketball stadiums , track and field stadiums and so on .
FAQ :
Q1 . Are you a manufacturer or trading company ?
A1 : We are a Professional OEM / ODM manufacturer which has specialized in led display industry
for more than 12 years .
Q2 . How does your factory do regarding quality control ?
A2 : Quality is priority .
At first , our factory use the best SMT machine is YAMAHA , and all product aging test 48 hours at least .
Our product approved CE / ROHS / FCC / CCC / ISO9001 / ISO140001 certificates .
Q3 . What is your MOQ ?
A3 : Any quantity is acceptable for your order . And the price is negotiable for large quantity .
Q4 . When will you make the delivery ?
A4 : We can make the delivery within 3 - 5 working days for the led modules and 10 - 30 days for the led
display with cabinet according to the size and quantities of your order .
