Product Details:
|
| Pixel Pitch: | 1.25mm | Led Chip: | 1212 |
|---|---|---|---|
| Display Function: | Video, Animation, Graphics | Refresh Rate: | 1920-3840hz |
| Warranty: | 2 Years | Color: | 1R1G1B, Full Color, RGB |
| High Light: | SMD1212 narrow pixel pitch led display,led pixel wall RoHs FCC,led display advertising 1R1G1B |
||

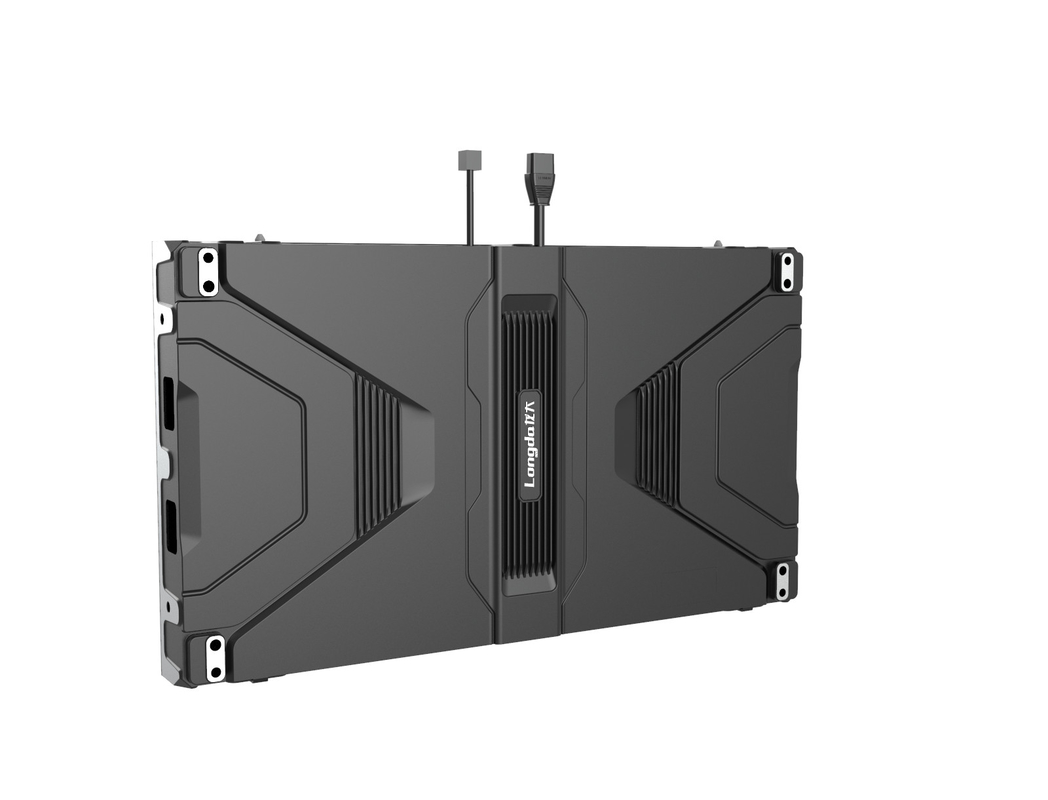

Small Pixle Led Display Module Size 16:9 With 600x337.5 Die-Casting Aluminum Cabinet
Advantages
The integral die-casting aluminum molding workmanship has provided with excellent flatness of the cabinet
The front serviceable ultra HD led screen cabinet has fully described the strength of its light weight,
met the needs of small space or where the needs of the cabinet thickness is needed,
enhanced the vision of the space as well as its visionary effect. it allows for easy maintenance ,saving time and labor site.
Specifications
| OPTICAL | Pixel Pitch | mm | 1.875mm |
| LED No. Per Pixel | pcs/pixel | 1 | |
| Brightness(Adjustment) | cd/m² | 600~800 | |
| LED Encapsulation | - | SMD1212 | |
| Module Resolution(W*H) | pixels | 160*90 | |
| Cabinet Resolution(W*H) | dots | 320 *180 | |
| Pixel Density | dots/sqm | 286,225 | |
| Viewing Angle(H/V) | degree | H160/V160 | |
| Color Depth/Number | bit | 16bit | |
| Grey Scale | - | 65,536 | |
| ELECTRICAL | Frame Frequency | Hz/s | 50/60 |
| Refresh Rate | Hz | ≥3840 | |
| Contrast Ratio | - | 5000:1 | |
| Max Power Consumption | W/m² | 800 | |
| Ave Power Consumption | W/m² | 250 | |
| Working Voltage | AC | AC90~264V | |
| Drive Voltage | DC | 15V | |
| Color Temperature | - | 3200-9300(adjustable) | |
| Working Temperature | ºC | -20ºC - 60ºC | |
| Humidity | - | 10%-85%RH | |
| Driving Method | - | 1/30scan | |
| MECHANICAL | Frame Material | - | Die-casting aluminum |
| Module Size | mm | 300 *168.75 | |
| Net Weight | kg/pcs | 7.8 | |
| Weight Per Tile | lbs | 17.21 | |
| Cabinet Size | mm | 600*337.5*55 | |
| IP Rating | - | IP30 | |
| Lifetime | hours | 100,000 | |
| Service Access | - | front | |
| Application | - | Indoor |
Our Service
1.The price depends on the quantity.We can offer you the best competitive price with the same even better quality.
2.Good after sale service: We can response in time if customers have questions about the installation , usage and maintenance ect.
3. Your inquiry will be replied by well-trained and experienced staffs in 24 hours.
4. Top Quality + Reasonable Price + Responsible After Service = Successful & Win
5. Help you design OEM & ODM or any your customized lightings and put into production.
6. We are offered for your unique design and some our current models.
7.Your sales area, ideas of design and all your private information will be well protected.
