281 Trillion Led Screen Module Electronic Billboard AC110 P10 RGB Aluminum Cabinet

281 Trillion Led Screen Module Electronic Billboard AC110 P10 RGB Aluminum Cabinet
281 Trillion Led Screen Module Electronic Billboard AC110 P10 RGB Aluminum Cabinet 281 Trillion Led Screen Module Electronic Billboard AC110 P10 RGB Aluminum Cabinet 281 Trillion Led Screen Module Electronic Billboard AC110 P10 RGB Aluminum Cabinet 281 Trillion Led Screen Module Electronic Billboard AC110 P10 RGB Aluminum Cabinet

Large Image :  281 Trillion Led Screen Module Electronic Billboard AC110 P10 RGB Aluminum Cabinet

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Longdaled
Certification: CE / CCC / ROHS / FCC / ISO9001 / ISO14001
Model Number: O - P10
Payment & Shipping Terms:
Minimum Order Quantity: 1 Sqm
Price: Price is Negotiable
Packaging Details: Plywood case / Flight case
Delivery Time: 15 - 18 days
Payment Terms: T / T
Supply Ability: 5000sqm per month

281 Trillion Led Screen Module Electronic Billboard AC110 P10 RGB Aluminum Cabinet

Description
Model: P10 Cabinet Size: 960x960mm Or Customization
Refresh Rate: 7680Hz Brightness: 4000-8000nits
Resolution: 32x16 Scan: 1/2
Cabinet Material: Die-casting Aluminum Or Standard Outdoor Waterproof Iron Cabinet Warranty: 3 Years
Highlight:

281 trillion Led Screen Module

,

p10 rgb led module Aluminum

,

led electronic billboard AC110

Led Screen Module P10 Outdoor Fixed Electronic Led Display Module Panels Wall


Advantages :


Outdoor advertising not only has a very good suggestive effect , and can cause consumption impulse ;
good visual impression , it is mostly giant colored billboards with an unconscious compulsion ;
its make the advertisement image is prominent , the theme is distinct .

281 Trillion Led Screen Module Electronic Billboard AC110 P10 RGB Aluminum Cabinet

Specifications :


Pixel Pitch 10mm
Module Resolution W32 × H16 dots
Module Size 320 * 160mm
Led Packing 3535
IP Rate 65
IC 2038
LED composition 1R1G1B
Cabinet Size 960 * 960mm Or Customization
Module Qty W3 X H6 = 18PCS
Physical Resolution W96 × H96 dots
Power Consumption(MAX.) 800 W / m2
Power Consumption(AVE.) 240 W / m2
Cabinet Material
Die-casting Aluminum Or Standard Outdoor Waterproof Iron Cabinet
Physical Density 10000 dots / m2
Net Weight 30Kg
Brightness 4000 ~ 8000cd / m2
Colors 281 trillion
Brightness Control Software 256 level adjustable
Gray Level 16
View Distance 10 ~ 100m
Refresh Rate 7680Hz
Drive Mode 1 / 2s
Life Span 100000h
MTBF 1000h
Control mode Synchronous control or Asynchronous control
Frame Frequency  ≥ 60Hz
Certification CE / ROHS / FCC / CCC / ISO9001 /ISO14001
Operation Temperature - 20 ℃ ~ + 45 ℃
Operation Humidity 10 % ~ 95 %


281 Trillion Led Screen Module Electronic Billboard AC110 P10 RGB Aluminum Cabinet

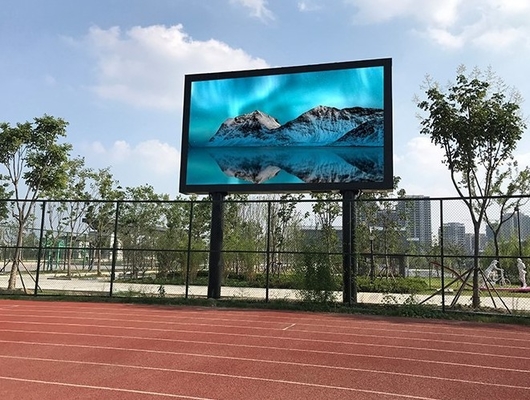

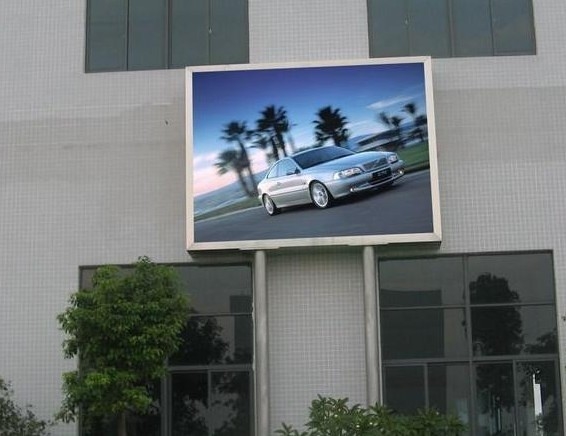

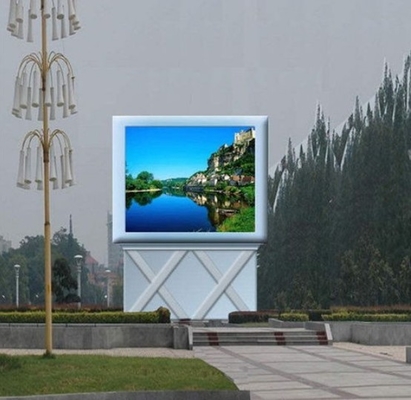

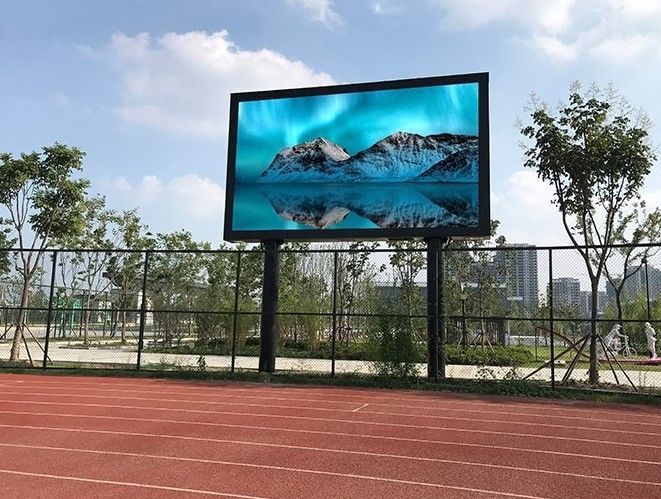

Applications :


Led screen module P10 is widely used in airport , subway , station , squre , shopping mall , hotel ,

chain store , supermarket , bank and exhibition , stadium , TV show , amusement place , stage live .


281 Trillion Led Screen Module Electronic Billboard AC110 P10 RGB Aluminum Cabinet


FAQ :

1 . Are you a manufacturer or trading company ?

We are a Professional OEM / ODM manufacturer which has specialized in led display industry for more than 17 years .

2 . How does your factory do regarding quality control ?
Quality is priority .
At first , our factory use the best SMT machine is YAMAHA , and all product aging test 48hours at least .

Our product approved CE / ROHS / FCC / CCC / ISO9001 / ISO14001 certificates .

3 . What is your MOQ ?
Any quantity is acceptable for your order . And the price is negotiable for large quantity .

4 . When will you make the delivery ?

We can make the delivery within 3 - 5 working days for the led modules and 10 - 30days for the led display with cabinet according to the size and quantities of your order .

5 . Do you provide any free spare parts in each order ?
Yes , a certain amount of spare parts will be provided for free , spare parts including module , power cable ,
signal cable , LED lamp , IC, mask , power supply , receiving card , etc .


6 . How to choose the control way by computer or phone ?
Synchronous by computer : usually for indoor fixed and all rental event .
Asynchronous by phone or ipad : widely used for outdoor fixed advertising .
