Product Details:
|
| Model: | Indoor P5 | Cabinet Size: | 960*960mm |
|---|---|---|---|
| Refresh Rate: | 3840Hz~7680Hz | Brightness: | 4000nits |
| Resolution: | 64*32 | Scan: | 8s |
| Cabinet Material: | Iron Cabinet Or Diecasting Aluminum Cabinet | Warranty: | 3 Years |
| Highlight: | 16.7 trillion Indoor Full Color Led Display,p5 led panel 1/ 16 scan,p5 rgb led panels 1R1G1B |
||
Indoor Full Color Led Display Panel P5 Colorful Led Displays With Competitive Price
Introduction :
Full color P5 is simple and convenient replacement of advertising content ;
It has large screen , super vision , 3840-7680HZ high brightness , long life , and strong applicability ;
The appearance is novel and unique , which can improve the level of urban science and technology ,
enrich the cultural life of urban residents , and make it easier for residents to receive .
![]()
Specifications :
| Type | P5 |
| Pitch | 5mm |
| Cabinet Type | Die-casting Aluminum |
| Access / Maintenance | Rear Maintenance |
| LED Model & Type | 1921 |
| LED Make | Rayshine |
| Refresh | 3840-7680Hz |
| Brightness | 4000nits |
| Viewing Angle | H 160°,V 160° |
| Control System | NovaStar |
| Scan | 8s |
| Density(dot/m²) | 40000 |
| Module Pixels (L*H) | 64*32 |

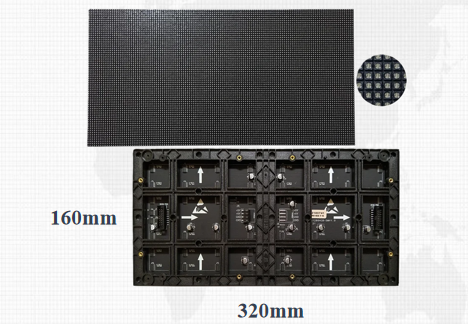

| Module Size (L*H)mm | 320*160mm |
| Cabinet Resolution (dot) | 36864 |
| Cabinet Size (L*H)mm | 960*960mm |
| Cabinet Depth (mm) | 130 |
| Single Cabinet weight (kg) | 30KG |
| Max Power (watts / m²) | 800 |
| Avg Power (watts/m²) | 240 |
| Certification | 3C CE ROHS |
| Ingress Protection (IP) | IP65 |
| Grayscale | 14-16bit+ |
![]()
Applications
| Business & Corporate | Meeting Rooms, Conference Halls, Showrooms, Training Rooms |
| Entertainment & Media | TV Studios, Broadcasting Rooms, Event Venues, Performance Stages |
| Hospitality & Public Spaces | Hotels, Churches, Airports, Reception Areas |
| Retail & Commercial | Shopping Malls, Retail Stores, Brand Showrooms, Advertising Spaces |
| Education & Institutions | Schools, Universities, Lecture Halls, Exhibition room, Government Facilities |
![]()
Packing & Shipping
![]()
FAQ :
1 . How about your packing ?
Carton / Plywood case / Flightcase .
2 . Which shipping way do you support ?
Our factory have shipping agent , if you want us help you for shipping , you can choose shipping by sea or air .
you only need to tell us your request and sea port or air port .
3 . Is the product customizable ?
Yes , we can customize the product according to clients ' needs , you just need to provide the requirements details .
4 . Do you test all your goods before delivery ?
Yes , we have 100 % test before delivery .
