Product Details:
|
| Pixel Pitch: | 10.4 - 10.4MM | Led Packing: | 1921 |
|---|---|---|---|
| IP Rate: | 43 / 65 | Cabinet Size: | 1000 * 1000mm |
| Physical Resolution: | W96 * H96 Dots | Physical Density: | 9245 Dots / M² |
| High Light: | P10.4 outdoor transparent led screen,transparent led display outdoor 100*100cm,curtain led screen P10.4mm |
||
Transparent Glass Led Screen P10.4 Outdoor LED Transparent Display Screen Glass Curtain Screen
Product Introduction :
1 . No steel frame structure , saving a lot of installation and maintenance costs ;
2 . Directly fixed on the glass curtain wall , without any steel structure , save a lot of cost ;

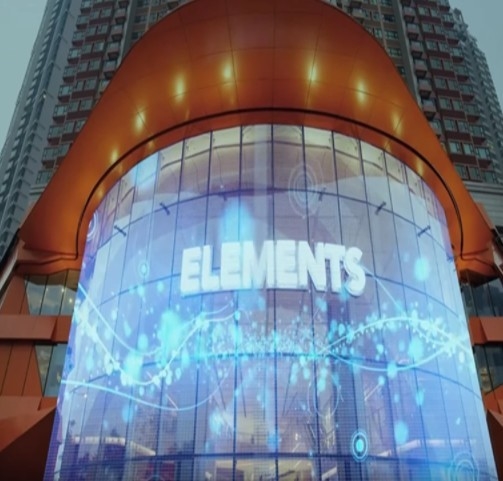

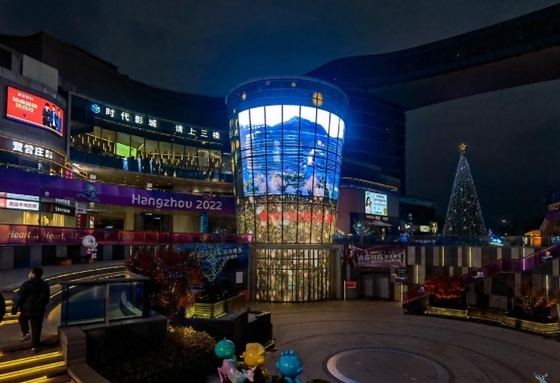

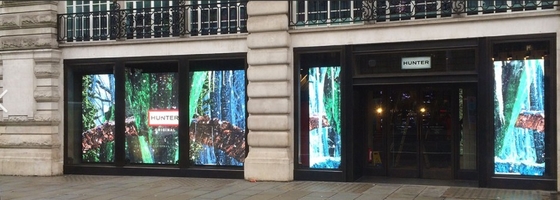

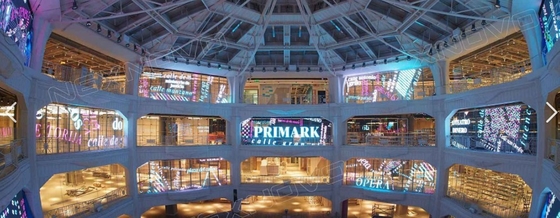

3 . The unique display effect because the display background is transparent , can make the advertising picture
give people the feeling of suspension on the glass curtain wall , with good advertising effect and artistic effect ;
4 . Easy and fast maintenance of indoor maintenance , both fast and safe , save manpower and material resources .
Specifications :
|
P3.9-7.8 Full Color LED Transparent Screen |
||||||||||
|
Part I Technicial Parameters |
||||||||||
|
Led Module Specification |
||||||||||
|
Item |
Specification |
|||||||||
|
Pixel Pitch |
3.9-7.8mm |
2.8-5.6mm |
7.8-7.8mm |
10.4-10.4mm |
||||||
|
Led Packing |
1921 |
1921 |
2020 |
1921 |
1921 |
2020 |
1921 |
1921 |
||
|
IP Rate |
43 |
|||||||||
|
IC |
2038 |
|||||||||
|
LED composition |
1R1G1B |
|||||||||
|
Cabinet Specification |
||||||||||
|
Cabinet Size |
1000*500mm |
1000*1000mm |
||||||||
|
Physical Resolution |
W256×H64dots |
W352*H88dots |
W128*H64dots |
W96*H96dots |
||||||
|
Power Consumption(MAX.) |
800 W/m2 |
600W/m2 |
400W/m2 |
800 W/m2 |
800 W/m2 |
600W/m2 |
800 W/m2 |
|||
|
Power Consumption(AVE.) |
220 W/m2 |
200W/m2 |
180W/m2 |
220 W/m2 |
220 W/m2 |
200W/m2 |
220 W/m2 |
|||
|
Cabinet Material |
Die-casting Aluminum |
Sectional material |
||||||||
|
Physical Density |
32873 dots/m2 |
63775 dots/m2 |
16436 dots/m2 |
9245 dots/m2 |
||||||
|
Net Weight |
6Kg |
10Kg |
||||||||
|
Screen Specification |
||||||||||
|
Brightness |
5000cd/m2 |
3500cd/m2 |
1000cd/m2 |
5000cd/m2 |
1200cd/m2 |
5000cd/m2 |
3500cd/m2 |
5000cd/m2 |
||
|
Colors |
281 trillion |
|||||||||
|
Brightness Control |
Software 256 level adjustable |
|||||||||
|
Gray Level |
14 |
|||||||||
|
View Distance |
5～12m |
|||||||||
|
Refresh Rate |
≥3840Hz |
|||||||||
|
Drive Mode |
1/8s |
1/16s |
1/11s |
1/4s |
1/2s |
|||||
|
Life Span |
100,000h |
|||||||||
|
MTBF |
1000h |
|||||||||
|
Control mode |
Synchronous control or Asynchronous control |
|||||||||
|
Frame Frequency |
≥60Hz |
|||||||||
|
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
|||||||||
|
Operation Temperature |
-20℃ ～ +45℃ |
|||||||||
|
Operation Humidity |
10%～95% |
|||||||||
FAQ:
1. Strict quality control :
The quality of our display is excellent . We use the materials of high quality suppliers in the world ,
strictly control the production process , and pass the multiple quality inspection to ensure that everyproduct is qualified .
2. Quality guarantee:
All our LED display screens is more than 100,000 hours life span
3. Long warranty:
Two - year warranty, any quality problem during warranty time will be handled .
4. Prompt &Professional service:
Any inquires will be replied within 24/7 hours and you'll get helpful suggestions from us.
Your questions:
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P1.25, P2, P3 P4.....P8,P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm....10mm,
which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the
display screen, thedesired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance,
the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,
free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.
Q6:Can I order a sample?
A:Yes, your sample orders are welcome, after checking our quality and service,
we are confident that you will come back for your future orders.
