Product Details:
|
Product Name: | Soft P4 Led Display Screen | Video Dimension: | 128x256mm |
---|---|---|---|
Emitting Color: | 16.7 Trillion | Viewing Angle: | 140 - 160 ° |
Type: | P4 Flexible Led Video Wall | Voltage: | 110-220V |
High Light: | 256×128mm LED Flexible Module,led module p4 durable,SMD2121 led advertising display indoor |

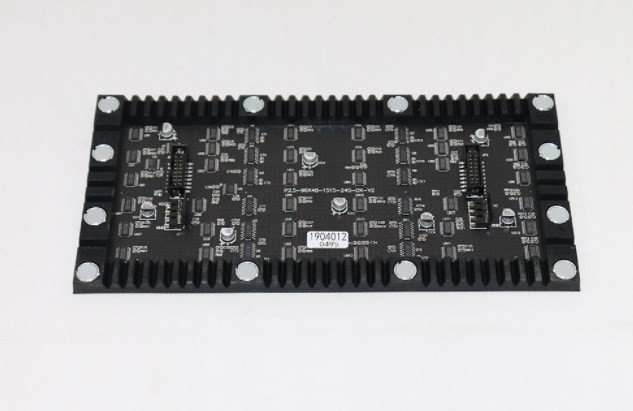

LED Flexible Module Indoor P4 256 X 128mm Flexible Module SMD2121 Advertising LED Screen
Advantages :
1 . Compared with the traditional PCB material , the flexible FPC circuit board made of
flexible insulating material has high compressive and distortion resistance , which can
better solve the problems of " beating around the bush , corner by corner " installation difficulties .
2 . LED flexible module installation mode is mainly magnetic column suction , installation is
convenient and quick , but also easy to shape , magnetic suction installation and conventional
indoor screen installation as simple , and box connection line is fast to joint connection ,
firm and reliable , for you to save the " prehistory force " .
Compared with regular size group , it saves more time and is easier to install .

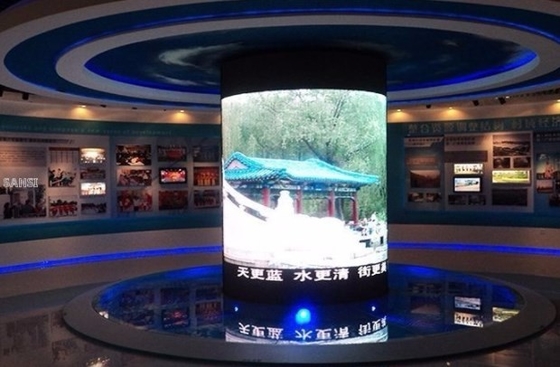

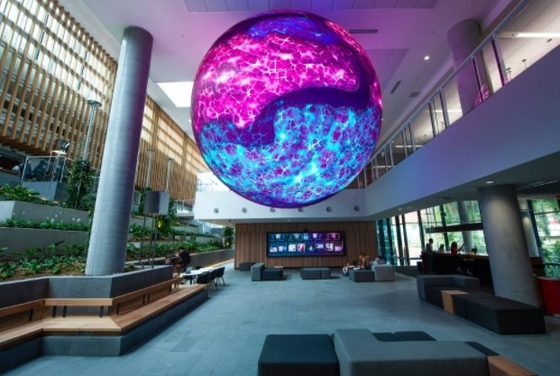

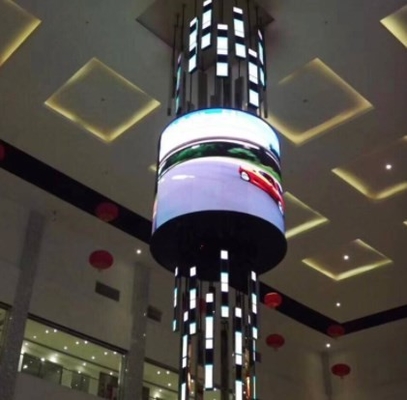

3 . Good ductility , can be arbitrary modeling , cylindrical screen has high brush performance ,
can be lifted , do , hanging , with the maximum sound requirements .
Conventional LED modules have no malleability , high hardness and cannot be bent .
4 . Ultra-thin , using special materials and advanced technology , ultra-thin and ultra-light ,
the weight of a single module is only 85g . Conventional LED modules are heavy .
Technical parameters :
P4 LED Screen for Transport Ads |
||||||
Part I Technicial Parameters |
||||||
Led Module Specification |
||||||
NO. |
Item |
Specification |
||||
1 |
Pixel Pitch |
4mm |
||||
2 |
Module Resolution |
W64×H32dots |
W80×H40dots |
|||
3 |
Module Size |
256*128mm(soft) |
256*128mm |
320*160mm |
||
4 |
Led Packing |
2121 |
Nationstar2121 |
2121 |
||
5 |
IP Rate |
43 |
65 |
43 |
||
6 |
IC |
Constant current IC |
MBI5124 |
2038s |
||
7 |
LED composition |
1R1G1B |
||||
Cabinet Specification |
||||||
1 |
Cabinet Size |
512*512mm |
640*640mm |
|||
2 |
Module Qty |
W2X H4 =8PCS |
W2X H4 =8PCS |
|||
3 |
Physical Resolution |
W128×H128dots |
W160×H160dots |
|||
4 |
Power Consumption(MAX.) |
200 W/m2 |
300 W/m2 |
|||
5 |
Power Consumption(AVE.) |
100 W/m2 |
150 W/m2 |
|||
6 |
Cabinet Material |
Die-casting Aluminum |
||||
7 |
Physical Density |
62500 dots/m2 |
||||
8 |
Net Weight |
7Kg |
||||
Screen Specification |
||||||
1 |
Brightness |
900cd/m2 |
1100cd/m2 |
860cd/m2 |
||
2 |
Colors |
16.7 trillion |
||||
3 |
Brightness Control |
Software 256 level adjustable |
||||
4 |
Gray Level |
14 |
||||
5 |
View Distance |
5~30m |
||||
6 |
Refresh Rate |
≥1200~1920Hz |
≥1920Hz |
≥1920Hz |
||
7 |
Drive Mode |
1/16s |
1/16s |
1/20s |
||
8 |
Life Span |
100,000h |
||||
9 |
MTBF |
1000h |
||||
10 |
Control mode |
Synchronous control or Asynchronous control |
||||
11 |
Frame Frequency |
≥60Hz |
||||
12 |
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
||||
13 |
Operation Temperature |
-20℃ ~ +45℃ |
||||
14 |
Operation Humidity |
10%~95% |
FAQ :
1:What is the warranty of your led display ?
A:We offer 5 years warranty.and more than 100000 hours screen life span .
2:what is your payment term?How long it takes to delivery ?
A:We usually accapt the T/T or L/C.both of them will at least 30% deposit in advance,
and the rest of 70% will paid before delivery.The lead time is usually 20 day .
3:How can you ensure the led display product quality ?
A:Before shippment,all the screens have aging test and then we also have waterproof test and shake test ,
ensure products can transportation safety and normal use.
4:What is your pre-sale and post-sale service ?
A:For pre-sale service,we have professional sales team and technical team , who are
willing to answer your question within 24 hours .
For post-sale service,we will instruct you how toinstallation , how to use , how to change the broken moudles ,
and we can also send the technicals to your country , in general , our led display will not have a big problem ,
you can rest assured to buy .
Services :
1 . Your inquiry related to our products or price will be replied in 12hrs .
2 . OEM & ODM , any your customized displays we can help you to design and put into product .
3 . Distributoership are offered for your unique design and some our current models .
4 . Protection of your sales area , ideas of design and all your private information .
5 . Best cost performance and perfect service before and after sales .
Company other products :
Indoor fixed LED screen : P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen : P3, P3.9, P4, P4.8, P5, P6
Outdoor fixed LED screen: P5, P6, P8, P10
Outdoor rental LED screen: P3.9, P4.8, P5, P6, P6.25, P8, P10
Small pitch LED screen: P1.6, P1.9
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P8, P10
LED poster player: P2.5,P3, P4, P5, P6, P8, P10
