Product Details:
|
Product Name: | Transparent Glass Window Led Screen | Display Function: | Video |
---|---|---|---|
Screen Dimension: | Customized Size | Tube Chip Color: | Full Color |
Pixel Pitch: | 2.8 - 5.6mm | Frame Frequency: | 3840hz |
High Light: | 5000cd/ m2 Transparent Glass LED Screen,transparent led display panel 1/11 scan,P5.6 led mesh curtain |

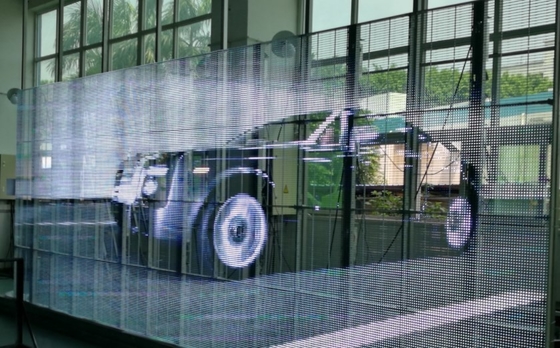

Transparent Glass Led Screen Display Screen Panel P2.8 - 5.6 Water Curtain Wall Tempered Glass
Applications
Transparent glass curtain wall p10.4 gain a good space visual effect indoor , its a new fashion trade
for window display especially some luxury store , brand store , chain store , shopping mall , exhibition center ,
airport , metro station , automobile 4S shop , jewelry store , bank , etc . transparent is the most high definition one ,
high transparency and elegant , will be popular in the market soon .
Technical parameter
P2.8 - 5.6 Full Color LED Transparent Screen |
||||
Part I Technicial Parameters |
||||
Led Module Specification |
||||
NO. |
Item |
Specification |
||
1 |
Pixel Pitch |
2.8-5.6mm |
||
2 |
Module Resolution |
W178×H22dots |
||
3 |
Module Size |
500*125mm |
||
4 |
Led Packing |
1921 |
||
5 |
IP Rate |
43 |
||
6 |
IC |
2038 |
||
7 |
LED composition |
1R1G1B |
||
Cabinet Specification |
||||
1 |
Cabinet Size |
1000*500mm |
||
2 |
Module Qty |
W2X H 4 =8PCS |
||
3 |
Physical Resolution |
W352*H88dots |
||
4 |
Power Consumption(MAX.) |
800 W/m2 |
||
5 |
Power Consumption(AVE.) |
220 W/m2 |
||
6 |
Cabinet Material |
Die-casting Aluminum |
||
7 |
Physical Density |
63775 dots/m2 |
||
8 |
Net Weight |
6Kg |
||
Screen Specification |
||||
1 |
Brightness |
5000cd/m2 |
||
2 |
Colors |
281 trillion |
||
3 |
Brightness Control |
Software 256 level adjustable |
||
4 |
Gray Level |
14 |
||
5 |
View Distance |
5~12m |
||
6 |
Refresh Rate |
≥3840Hz |
||
7 |
Drive Mode |
1/11s |
||
8 |
Life Span |
100,000h |
||
9 |
MTBF |
1000h |
||
10 |
Control mode |
Synchronous control or Asynchronous control |
||
11 |
Frame Frequency |
≥60Hz |
||
12 |
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
||
13 |
Operation Temperature |
-20℃ ~ +45℃ |
||
14 |
Operation Humidity |
10%~95% |
Our service
Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other required services such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.
After-sale service:
1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 1year
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
Company other products
Indoor fixed LED screen : P2.5 , P3 , P4 , P5 , P6 , P8 , P10
Indoor rental LED screen : P3 , P3.9 , P4 , P4.8 , P5 , P6
Outdoor fixed LED screen : P5 , P6 , P8 , P10
Outdoor rental LED screen : P3.9 , P4.8 , P5 , P6 , P6.25 , P8 , P10
Small pitch LED screen : P1.6 , P1.9
Front service maintenance LED screen : P6.67 , P8 , P10
Stadium perimeter LED screen : P8 , P10
LED poster player : P2.5 , P3 , P4 , P5 , P6 , P8 , P10
