Nationstar 3535 Outdoor Led Video Wall For Advertising Digital Billboard ISO9001

Outdoor P6 LED Screen

Part I Technicial Parameters

Led Module Specification

NO.

Item

Specification

1

Pixel Pitch

6mm

2

Module Resolution

W32×H32dots

3

Module Size

192*192mm

4

Led Packing

3535

3528

5

IP Rate

65

6

IC

Constant current IC

5124

7

LED composition

1R1G1B

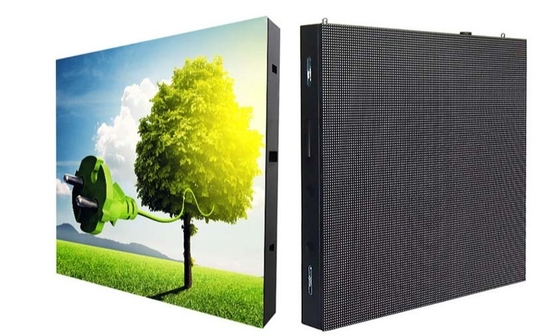

Cabinet Specification

1

Cabinet Size

576*576mm

960*960mm

2

Module Qty

W3X H3 =9PCS

W5X H5 =25PCS

3

Physical Resolution

W96×H96dots

W160×H160dots

4

Power Consumption(MAX.)

600 W/m2

5

Power Consumption(AVE.)

230 W/m2

300 W/m2

6

Cabinet Material

Die-casting Aluminum

7

Physical Density

27777 dots/m2

8

Net Weight

7.5Kg

7.7Kg

Screen Specification

1

Brightness

5500cd/m2

1000cd/m2

2

Colors

16.7 trillion

3

Brightness Control

Software 256 level adjustable

4

Gray Level

14

5

View Distance

6～50m

6~150m

6

Refresh Rate

≥1200~1920Hz

≥960Hz

7

Drive Mode

1/8s

1/16s

8

Life Span

100,000h

9

MTBF

1000h

10

Control mode

Synchronous control or Asynchronous control

11

Frame Frequency

≥60Hz

12

Certification

CE/ROHS/FCC/CCC/ISO9001/ISO14001

13

Operation Temperature

-20℃ ～ +45℃

14

Operation Humidity

10%～95%
