Product Details:
|
| Pixel: | 3.91mm | LED Composition: | 1R1G1B |
|---|---|---|---|
| Brightness: | 4500cd/m² | IP Rate: | 65 |
| Power Supply: | 200w | Cabiner Size: | 500*500mm& 500*1000mm |
| High Light: | P3.91mm Rental LED Display,Waterproof Rental LED Display,IP65 Led Video Wall |
||

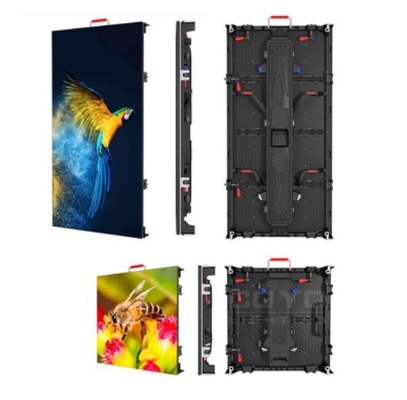

Rental LED Display P3.91 500*500mm& 500*1000mm Outdoor Waterproof IP65 Led Video Wall
Advantages :
1) It is extremely easy to calculate the area of LED screen because it is consist of

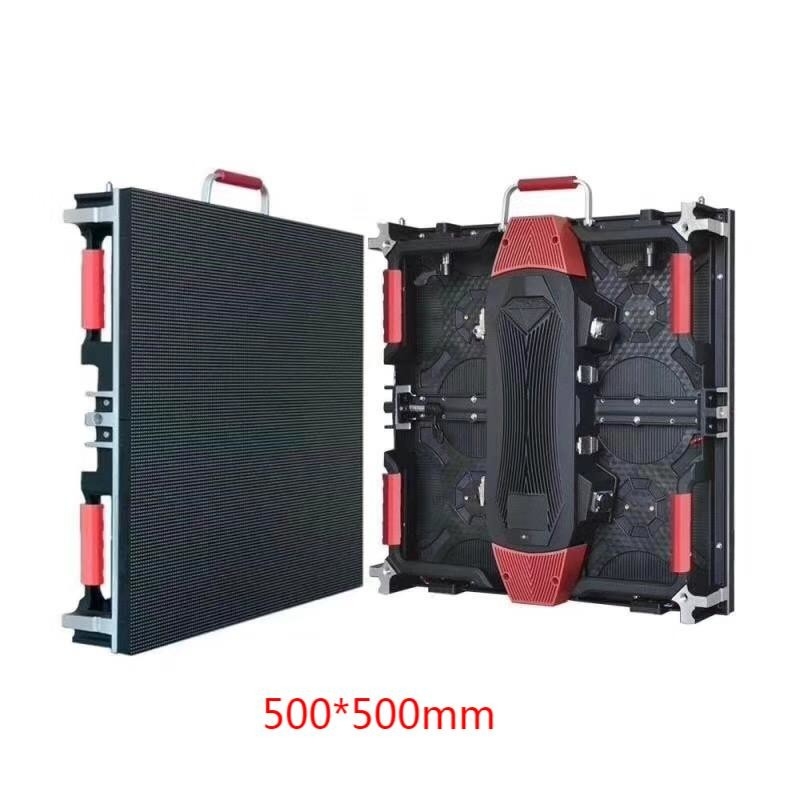

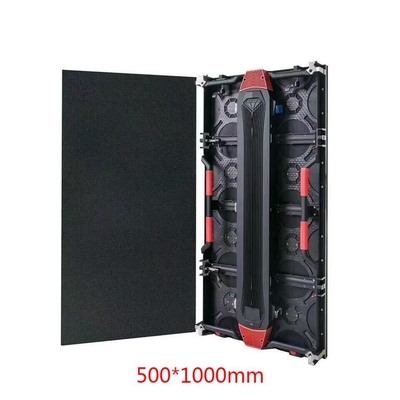

500*500mm/ 500mm*1000mm cabinet,
2) 16 bit color, 65536 gray scale, refresh rate over 3840Hz so the video or images on the
LED screen are very vivid and fresh, people who see it will get shocked by this amazing viewing experience,
3) The appearance is very elegant, it looks very high end, quality is very stable and durable,
4) Applied with die-casting aluminum cabinet, very strong and high precision, tolerance can
be controlled in 0.1mm so the surface is very smooth, almost no gap between cabinets,
5) The side locks is spring locks, this is unique among all die-casting aluminum cabinets,
especially popular in Europe and North America.
Technical parameters :
|
Led Module Specification |
||||
|
Item |
Specification |
|||
|
Pixel Pitch |
3.91mm |
|||
|
Module Resolution |
W64×H64dots |
|||
|
Module Size |
250*250mm |
|||
|
Led Packing |
1921 |
|||
|
IP Rate |
65 |
|||
|
IC |
2038s |
|||
|
LED composition |
1R1G1B |
|||
|
Cabinet Specification |
||||
|
Cabinet Size |
500*500mm/ 500*1000mm |
|||
|
Module Qty |
W2X H2= 4PCS/ 2* 4= 8pcs |
|||
|
Physical Resolution |
W128×H128 dots/ W128*256 dots |
|||
|
Power Consumption(MAX.) |
200 W/m² |
|||
|
Power Consumption(AVE.) |
120 W/m² |
|||
|
Cabinet Material |
Die-casting Aluminum |
|||
|
Physical Density |
65410 dots/m² |
|||
|
Net Weight |
9Kg/ 14kg |
|||
|
Screen Specification |
||||
|
Brightness |
4500cd/m2 |
|||
|
Colors |
16.7 trillion |
|||
|
Brightness Control |
Software 256 level adjustable |
|||
|
Gray Level |
14 |
|||
|
View Distance |
4～100m |
|||
|
Refresh Rate |
≥13840Hz |
|||
|
Drive Mode |
1/16s |
|||
|
Life Span |
100,000h |
|||
|
MTBF |
1000h |
|||
|
Control mode |
Synchronous control or Asynchronous control |
|||
|
Frame Frequency |
≥60Hz |
|||
|
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
|||
|
Operation Temperature |
-20℃ ～ +45℃ |
|||
|
Operation Humidity |
10%～95% |
|||
FAQ :
1 : What is the warranty of your led display ?
A : We offer 2-3 years warranty and more than 100,000 hours screen life span .
2 : What is your payment term ? How long it takes to delivery ?
A : We usually accapt the T/T or L/C , both of them will at least 30% deposit in advance ,
and the rest of 70% will paid before delivery .
The lead time is usually 20 day .
3 : What is your pre-sale and post-sale service ?
A : For pre-sale service , we have professional sales team and technical team ,
who are willing to answer your question within 24 hours .
For post-sale service , we will instruct you how to installation , how to use , how to change
the broken moudles , and we can also send the technicals to your country , in general ,
our led display will not have a big problem , you can rest assured to buy .
Service :
1 . Your inquiry related to our products or price will be replied in 12hrs .
2 . OEM & ODM , any your customized displays we can help you to design and put on production .
3 . We are offered for your unique design and some our current models .
