Product Details:
|
| Model: | 2.5mm/ 3mm | Cabinet Size: | 640mmx480mm/500mmx500mm |
|---|---|---|---|
| Refresh Rate: | 3840~7680Hz | Brightness: | 600~1000nits |
| Resolution: | 128*64/84*84 | Scan: | 1/32 |
| Cabinet Material: | Die-casting Aluminum | Warranty: | 3 Years |
| Highlight: | P3 Small Pixel LED Display,Event Auditoriums Small Pixel LED Display,ISO9001 Indoor Stage LED Screen |
||

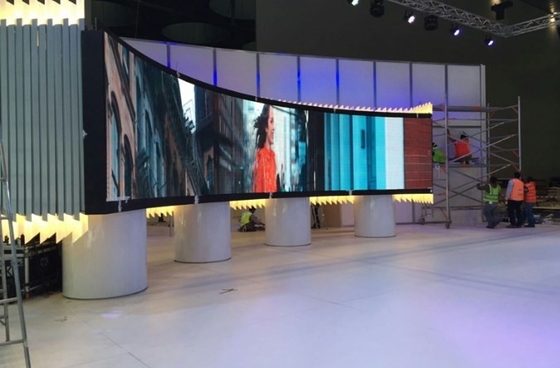

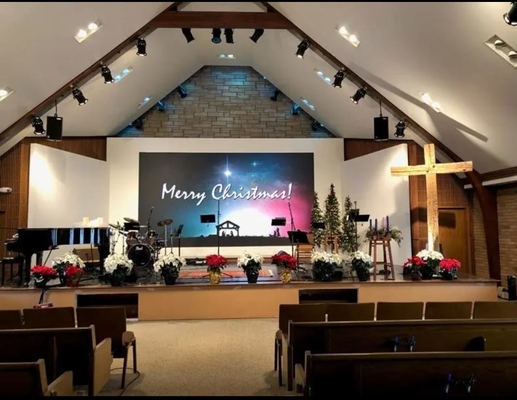

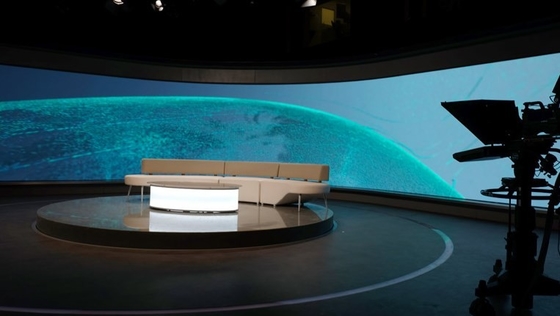

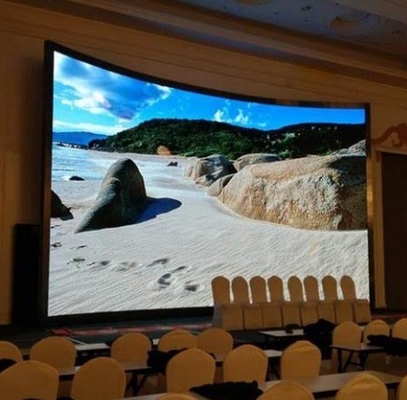

Small Pixel Pitch P2.5 P3 LED Display Indoor Stage Led Screen For Event Auditoriums
Advantages
1 . Indoor Small Pixel Pitch P2.5 P3 led screen with high resolution and high definition,
widely used for conference, plaza, office, party, church, DJ bar, club, concert stage and so on;
2 . With ultra slim cabinet, the thickness is only 65mm, with fashion configuration design;
3 . Made with high quality die-casting aluminum cabinet, enhance the heat dissipation,
and extend the cabinet's working life.
![]()
Product Parameters
|
Item |
Specification |
|||
|
Pixel Pitch |
2.5mm |
3mm |
||
|
Module Resolution |
W128×H64dots |
84*84dots |
||
|
Module Size |
320*160mm |
250*250mm |
||
|
Led Packing |
2121 |
|||
|
IP Rate |
43 |
|||
|
IC |
5124 |
|||
|
LED composition |
1R1G1B |
1R1G1B |
||
![]()
|
Cabinet Size |
640*480mm |
500*500mm |
||
|
Module Qty |
W2× H3=6PCS |
2*2=4pcs |
||
|
Physical Resolution |
W256×H192dots |
W168*168dots |
||
|
Power Consumption(MAX.) |
320W/m² |
|||
|
Power Consumption(AVE.) |
96W/m² |
|||
|
Cabinet Material |
Die-casting Aluminum |
|||
|
Physical Density |
160000 dots/m² |
111000dots/m² |
||
|
Net Weight |
9Kg |
6.5kg |
||
![]()
|
Colors |
16.7 trillion |
|||||
|
Brightness Control |
Software 256 level adjustable |
|||||
|
Gray Level |
16 |
|||||
|
View Distance |
3~30m |
|||||
|
Refresh Rate |
7680hz |
|||||
|
Control mode |
Synchronous control or Asynchronous control |
|||||
|
Frame Frequency |
≥60Hz |
|||||
|
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
|||||
|
Operation Temperature |
-20℃ ~ +45℃ |
|||||
|
Operation Humidity |
10%~95% |
|||||
![]()
![]()
FAQ
1 Reply your inquiry in 24 working hours;
2 Customized design is available, OEM & ODM are welcomed;
3 Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs;
4 Warranty period: 2-3 years after shipment;
5 Special discount and protection of sales area provided to our distributor;
6 Warmly welcome your visit in our company if available;
7 Guidance service: We can guide on line if customers have questions about the installation and usage,
For large project, we provide a week free training to your engineer, or if customer could bear the relevant cost,
our engineer can go to customer's country for on-site guidance.
