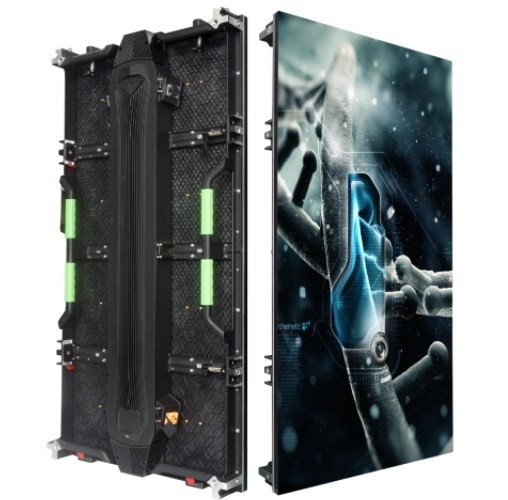

P4.81mm Outdoor Rental Led Display High Brightness 5000nits​ 3840hz

Certification
China Shenzhen Longdaled Co.,Ltd certification
China Shenzhen Longdaled Co.,Ltd certification
I'm Online Chat Now

P4.81mm Outdoor Rental Led Display High Brightness 5000nits​ 3840hz

P4.81mm Outdoor Rental Led Display High Brightness 5000nits​ 3840hz
P4.81mm Outdoor Rental Led Display High Brightness 5000nits​ 3840hz
P4.81mm Outdoor Rental Led Display High Brightness 5000nits​ 3840hz P4.81mm Outdoor Rental Led Display High Brightness 5000nits​ 3840hz

Large Image :  P4.81mm Outdoor Rental Led Display High Brightness 5000nits​ 3840hz

Product Details:
Place of Origin: ShenZhen
Brand Name: Longda LED
Certification: CE / RoHs / FCC / CCC / ISO9001 / ISO14001
Model Number: P4.81
Payment & Shipping Terms:
Minimum Order Quantity: 1 Sqm
Price: Usd599 ~ Usd1099 / Sqm ( price is negotiable )
Packaging Details: Flight case packing or Plywood case packing
Delivery Time: 15 - 18 days
Payment Terms: L / C , T / T , Western Union , MoneyGram
Supply Ability: 5000sqm per month

P4.81mm Outdoor Rental Led Display High Brightness 5000nits​ 3840hz

Description
Model: 4.81mm Cabinet Size: 500x500mm And 500x1000mm
View Distance: 3~50m Life Span: 100,000h
Brightness: ≥5000nits Frame Frequency: 3840hz
Name: Outdoor Rental Led Display
High Light:

P4.81mm Outdoor Rental Led Display

,

high brightness 5000nits​ Rental Led Display

,

​ Rental Led Display 3840hz

P4.81mm Outdoor Rental Led Display high brightness 5000nits​





Specifications :



Chapter 1 Specification and main technical index

(1)Construction Description

1,Screen consists of cabinets ,cabinet consist of modules
2,modules consist of pixels and each pixel contains 1R1PG1PB total of 1 LED lamps

(2)Professional analysis

No.

Professional analysis content

Analysis item

1

Color matching analysis

To make color matching reach the best white balance effect,the color matching rate of different color brightness is R:G:B/3:6:1(SMD1919)

(3)Pixel Parameter

No.

Item

Parameter

1

Pixel pitch

PH4.81mm

2

Pixel configuration

1R 1PG 1PB

(4)Tube Chip Parameter

No.

Item

Wavelength

Brightness

1

Red tube chip

620-625nm

800-1000mcd

2

Pure green tube chip

520-525nm

2200-3000mcd

3

Pure blue tube chip

465-470nm

300-600mcd

(5) Electricity parameter

1

Pixel density(dots/M2)

43222dots/ m²

2

White Balance Brightness

≥5000 (cd/m²)

3

Brightness Adjusted

256 grade automatically, 8 grade manually

4

Color temperature(K)

5000-9500

5

View Angle

Horizontal:140°; Vertical: 110°

6

Best viewing distance(m)

5-50m

7

Communication distance

120 meters by LAN cable(without relay)(optical fiber transmission 500M-10000M)

8

Drive Method

1/13scan constant current

9

Gray Grades

16384 levels for each color

10

Display Color

16,777,216

11

Refresh Frequency (Hz)

≥3840

12

Control Mode

Ynchronous controller

13

Signal interface

DVI

14

Input signal

Video: PAL/NTSC etc

15

Display format

800 * 600,1024 * 768, 1280*1024

16

Software

Support windows series system

17

Waterproof

Yes

18

Protection

IP65

19

Working temperature(ºC)

(-20ºC~+60ºC )

20

Humidity(RH)

10%-90%RH

21

LED Lifetime(hours)

≥100,000

22

Whole Display Flatness

Less than 1mm Juncture

23

Power Consumption

Average:≤220w/m²;Maximum: ≤900w/m²

24

Operating Voltage

AC100V±220V 50~60HZ

25

Operating Platform

WINDOWS(WIN10,WIN8, WIN XP)



Features:

1, High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.

2, Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.

3, High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.

4, Good heat dissipation with fans and using meanwell power supply, long lifespan.

5, You can adjust the resolution by change modules directly, this can save your cost and labor.
