Product Details:
|
| Module Size: | Outdoor P6.67 Full Color Led Display | Cabinet Size: | 960mm*960mm |
|---|---|---|---|
| Refresh Rate: | 3840Hz~7680Hz | Brightness: | 4000-8000nits |
| Resolution: | 72×48 | Scan: | 6s |
| Cabinet Material: | Iron Cabinet Or Diecasting Aluminum Cabinet | Warranty: | 3 Years |
| Highlight: | 192 * 192mm Outdoor Led Video Walls,ISO9001 Outdoor Led Video Walls,5500cd / m² Outdoor Led Video Walls |
||
Outdoor Led Video Walls P6.67 Outdoor Full Color LED Sign Panel Screen Commercial Advertising Display
Specifications :
| Pitch | P6.67 |
| Module Size | 480*320mm |
| Module Resoultion | 72*48 |
| Cabinet Size | 960mm*960mm |
| Cabinet Resoultion | 144*144 |
| Service | Front /Rear service |
| Brightness | 4000-8000nits |
| Refresh rate | 3840Hz |
| Viewing angle | Horizontal 160° / Vertical140° |
| Scan | 6s |
| Connection method | Hardwired |
| Max.consumption/cabinet | ≤450w |
| Ave.consumption /cabinet | ≤260w |
| Ingress Protection (IP) | IP65 |
| Grayscale | 14-16bit+ |
| G.W/Cabinet | 30kg |
![]()
Rear and Front Maintenance
1. Rear service, using keys to open the door to maintenance, quickly and convenient, and save cost for installation and maintenance.
2. Front service, the best solution for fixed installation, using full front service to remove any faulty parts from the front of the LED cabinet. Module with mechanical lock support both front and rear service.
![]()

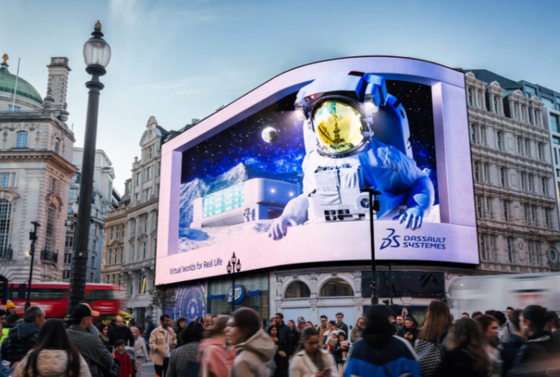

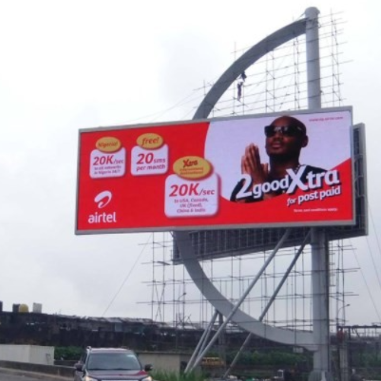

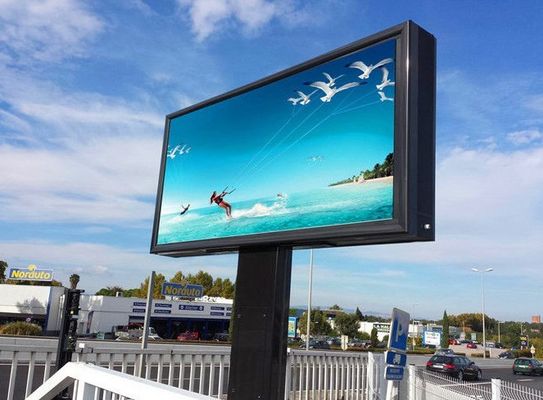

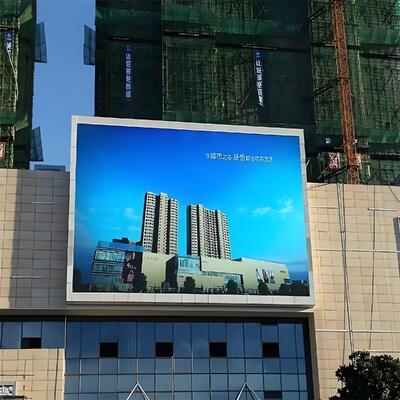

| Commercial Spaces | Shopping malls, stores, hotels, restaurants, office buildings |
|---|---|
| Public Facilities | Airports, stations, parks, plazas, exhibition centers |
| Corporate & Institutional | Banks, schools, hospitals, business centers |
| Entertainment & Events | Stadiums, event venues, cultural spaces |
| Transportation | Gas stations, parking areas, roadside information displays |
![]()
Packing & Shipping
![]()
Why Choose LONGDA LED?
1 . Strict quality control :
The quality of our display is excellent , we use the materials of high quality suppliers in the world ,
strictly control the production process , and pass the multiple quality inspection to ensure that every product is qualified .
2 . Quality guarantee :
All our LED display screens is more than 100,000 hours life span . And we test them for 48 hours at least .
3 . Long warranty :
2 - 3 years warranty , any quality problem during warranty time will be handled .
4 . Prompt & Professional service :
Any inquires will be replied within 24/7 hours and you ' ll get helpful suggestions from us .
