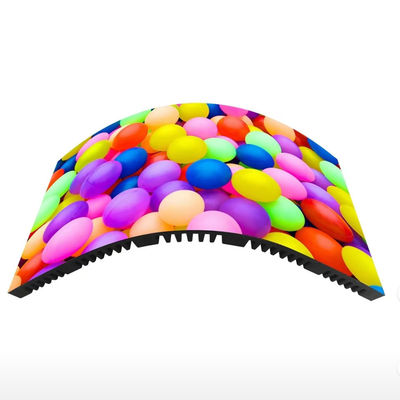

P2 320*160mm Led Flexible Module 600nits High Resolution Curved Led Video Wall
Description
The regular LED module is made of a hard PCB board and a bottom shell mask, without any softness. Either it cannot be used when it encounters radians and bends, or it needs extra processes such as corner cutting to make it so.
A flexible LED module was to solve the above problems. A Flexible LED module is also called a flexible LED screen, or LED soft screen, because of its relatively high flexibility, so it can be folded and bent.
The display principle of the flexible LED module is the same as that of the regular LED screen. The difference is that the flexible PCB and the bottom shell mask are used, which makes the module very soft and can fold at 120 degrees.
Feature
1. Most of the installation methods of LED flexible modules are magnetic column suction.
Quick and easy to install, but also easy to shape. The installation method of the magnetic suction is as simple as the installation method of the regular LED indoor screen, and the connection lines of the cabinet are connected by quick butt joints, which are firm and reliable.
2. It has good ductility and can be shaped arbitrarily.
Among them, the cylindrical screen has high brush performance and can be hoisted, fabricated, hung, etc., to meet the requirements of the site to the greatest extent.
Using advanced digital video processing, technology distributed scanning. 360-degree high-definition display, modular design. Constant current static drive, high brightness true color output, clear picture without jitter.
3. High-quality and the maintenance cost is low.
High brightness, low dead light rate, energy saving, and power saving. Seamless splicing can control the splicing error between modules within plus or minus 0.1mm. It can be made into any shape according to the needs of users.
Good flatness, made of silicone, soft to the touch, no protruding fingers. Support real-time broadcast. Prevent the moisture and oxidation of the line, and improve the service life.
Parameter
| Pixel Density (dots/m²) |
250,000 |
| LED module size(mm) |
240×120 |
| Pixel / Module |
120×60 |
| Diver mode |
1/30 |
| refresh rate (Hz) |
≥2880 |
| Frame frequency (Hz) |
50&60 |
| Gray scale (bit) |
12-16 adjustabel |
| Signal interface |
HUB75 |
| Bottom Case Material |
Silicone |
| Weight (kg/pcs) |
0.205 |
| Service |
front&back |
| Brightness |
≥750 |
| Color Temperature |
3000~10000 |
| Viewing Angle |
140O/160O |
| Contrast |
5000:01:00 |
| LED module voltage |
DC5v |
| Module Max electric current (A) |
3 |
| Module Max power consumption (w) |
15 |
| Supply Voltage AC (V) |
110~220 |
| Max power consumption (w/m2) |
800 |
| Average power consumption (w/m2) |
270 |
| Led Life (Hours) |
100,000 |
| Operating Temperature(ºC) |
-10~+50 |
| Storage Temperature(ºC) |
-20~+60 |
| Operating Humidity(RH) |
20%-85% |
| Storage Humidity(RH) |
20%-80% |
Application
FAQ :
Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for more than 12 years.
Q2:How does your factory do regarding quality control?
A2:Quality is priority.
At first, our factory use the best SMT machine is YAMAHA, and all product aging test 48hours at least. Our product approved CE/ROHS/FCC/CCC/ISO9001/ISO 40001 certificate.
Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q4:When will you make the delivery?
A4:We can make the delivery within 3-5 working days for the led modules and 10-30days for the led display with cabinet according to the size and quantities of your order. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
