Product Details:
|
| Highlight: | waterproof LED dance floor display,interactive LED display cabinet,rental LED display for weddings |
||
|---|---|---|---|
Led Dance Floor Display 500*1000mm Cabinet Waterproof Anti-wear Interactive For Wedding Party
Product Quick Details
1. High Load-Bearing & Safety Design
Engineered with durable, anti-slip tempered glass and robust aluminum frames, it safely supports continuous foot traffic while protecting internal LED components from impact and moisture.
2. Seamless Visual Integration with Floor
Ultra-thin cabinet design and precise, near-invisible seams enable smooth, continuous visual effects across large floor areas, creating immersive and interactive ground displays.
3. Vivid Display with Wide Viewing Angle
High brightness and contrast ensure clear, vibrant visuals even under ambient indoor light. A wide viewing angle maintains consistent image quality from various positions around the screen.
Product Feature
The LED floor tile screen is an innovative display solution designed for ground installation, perfect for creating immersive and interactive visual experiences. Built with high-strength tempered glass for safety and durability, it supports foot traffic while delivering vibrant, seamless visuals. Ideal for stage performances, exhibitions, retail spaces, and entertainment venues, it transforms floors into dynamic, engaging digital canvases.
1. Exceptional Durability & Safety
Constructed with reinforced tempered glass and robust frames, it reliably withstands continuous foot traffic and heavy loads while ensuring a safe, anti-slip surface.
2.Seamless & Immersive Visual Experience
Ultra-narrow bezels and precise calibration create a continuous, gap-free display area, transforming floors into a unified and captivating digital canvas.
3. Vibrant Display Performance
High brightness, excellent contrast, and wide viewing angles deliver clear, vivid visuals that remain effective under various indoor lighting conditions and sightlines.
4. Easy Installation & Maintenance
Modular design allows for quick assembly and disassembly. Front-access maintenance enables easy module replacement without disrupting the surrounding installation.
Product Parameter
| Pixel Pitch | 3.91mm | 4.81mm | 2.976mm |
| Pixel configuration | SMD1921 | SMD1921 | SMD1415 |
| Module resolution | 64L X 64H | 52L X 52H | 84L X 84H |
| Pixel density(pixel/㎡) | 65 536 dots/㎡ | 43 264 dots/㎡ | 112 896 dots/㎡ |
| Module size | 250mmL X 250mmH | 250mmL X 250mmH | 250mmL X 250mmH |

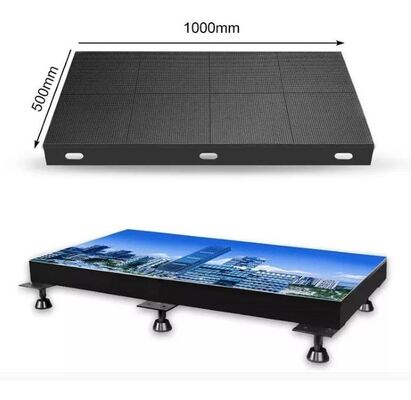

| Cabinet size | 500x1000mm | 500x1000mm | 500x1000mm |
| 19.685'' x 39.37'' | 19.685'' x 39.37'' | 19.685'' x 39.37'' | |
| Cabinet Resolution | 128L X 256H | 104L X 208H | 168L X 336H |
| Ave power consumption(w/㎡) | 300W | 300W | 300W |
| Max power consumption(w/㎡) | 600W | 600W | 600W |
| Cabinet material | Iron ; | Iron ; | Iron ; |
| Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | |
| Cabinet Weight | 15kg; 9kg | 15kg; 9kg | 15kg; 9kg |
| Viewing angle | 140° /140° | 140° /140° | 140° /140° |
| Viewing distance | 4-100m | 5-100m | 3-80m |
| Refresh Rate | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz |
| Color processing | 16bit | 16bit | 16bit |
| Working voltage | AC100-240V±10%,50-60Hz | AC100-240V±10%,50-60Hz | AC100-240V±10%,50-60Hz |
| Brightness | ≥2000cd | ≥2000cd | ≥2000cd |
| Lifetime | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Working temperature | ﹣20℃~60℃ | ﹣20℃~60℃ | ﹣20℃~60℃ |
| Power Supply | 5V/40A | 5V/40A | 5V/40A |
| Working humidity | 60%~90%RH | 60%~90%RH | 60%~90%RH |
| Control system | Novastar | Novastar | Novastar |
![]()
Application
Ideal for environments demanding ultra-high-resolution visuals at close viewing distances. It is perfectly suited for corporate lobbies, broadcast studios, command centers, high-end retail stores, and conference rooms, delivering impactful and detailed content.
FAQ
1. Is the LED floor tile safe for people to walk on?
Yes. It features high-strength tempered glass with anti-slip surface treatment, designed to safely withstand continuous foot traffic and comply with relevant load-bearing safety standards.
2. Can it be used outdoors or in wet environments?
This product is designed for indoor use. For outdoor or semi-outdoor applications, a specifically designed waterproof and weatherproof version is required to ensure durability and safety.
3. How is the screen maintained and cleaned?
Use a soft, dry microfiber cloth for regular dusting. For marks, a slightly damp cloth with water or a mild, non-abrasive cleaner is suitable. Avoid harsh chemicals or high-pressure cleaning.
4. What kind of content works best on a floor screen?
Dynamic, interactive visuals like motion graphics, virtual pathways, and reactive animations are highly effective. Content should be designed for viewing from above and various angles.
5. Can it be combined with wall or ceiling LED displays?
Yes. It can be seamlessly integrated with other LED displays (like P2.5 walls) through synchronized control systems to create a fully immersive 360-degree visual environment.
